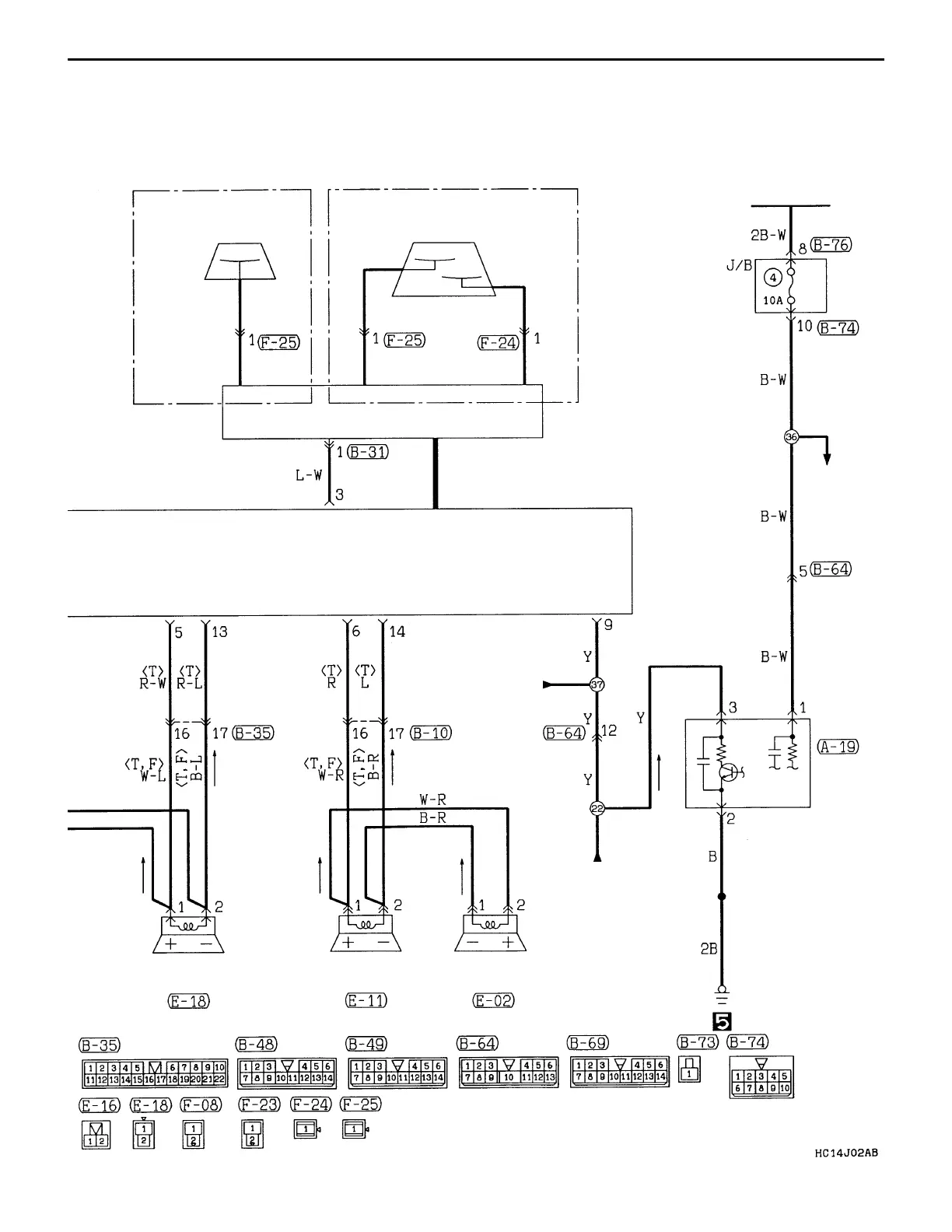

CIRCUIT DIAGRAM – Radio <4-speaker, 6-speaker>
<VEHICLES WITH
GLASS ANTENNA>
REAR
WINDOW
GLASS
ANTENNA
<VEHICLES WITH GLASS
DIVERSITY ANTENNA>
REAR
WINDOW
GLASS
ANTENNA
GLASS ANTENNA AMPLIFIER
ANTENNA
FEEDER LINE
DOOR
SPEAKER (LH)
DOOR
SPEAKER (RH)
TWEETER (RH)
<VEHICLES WITH
6 SPEAKERS>
IGNITION
SWITCH (IG1)
ENGINE
CONTROL
SYSTEM
METER
AND
GAUGE
VEHICLE
SPEED
SENSOR
• SUNROOF
• SEAT BELT
WARNING
LAMP
• FOOT
LAMP
B-81
