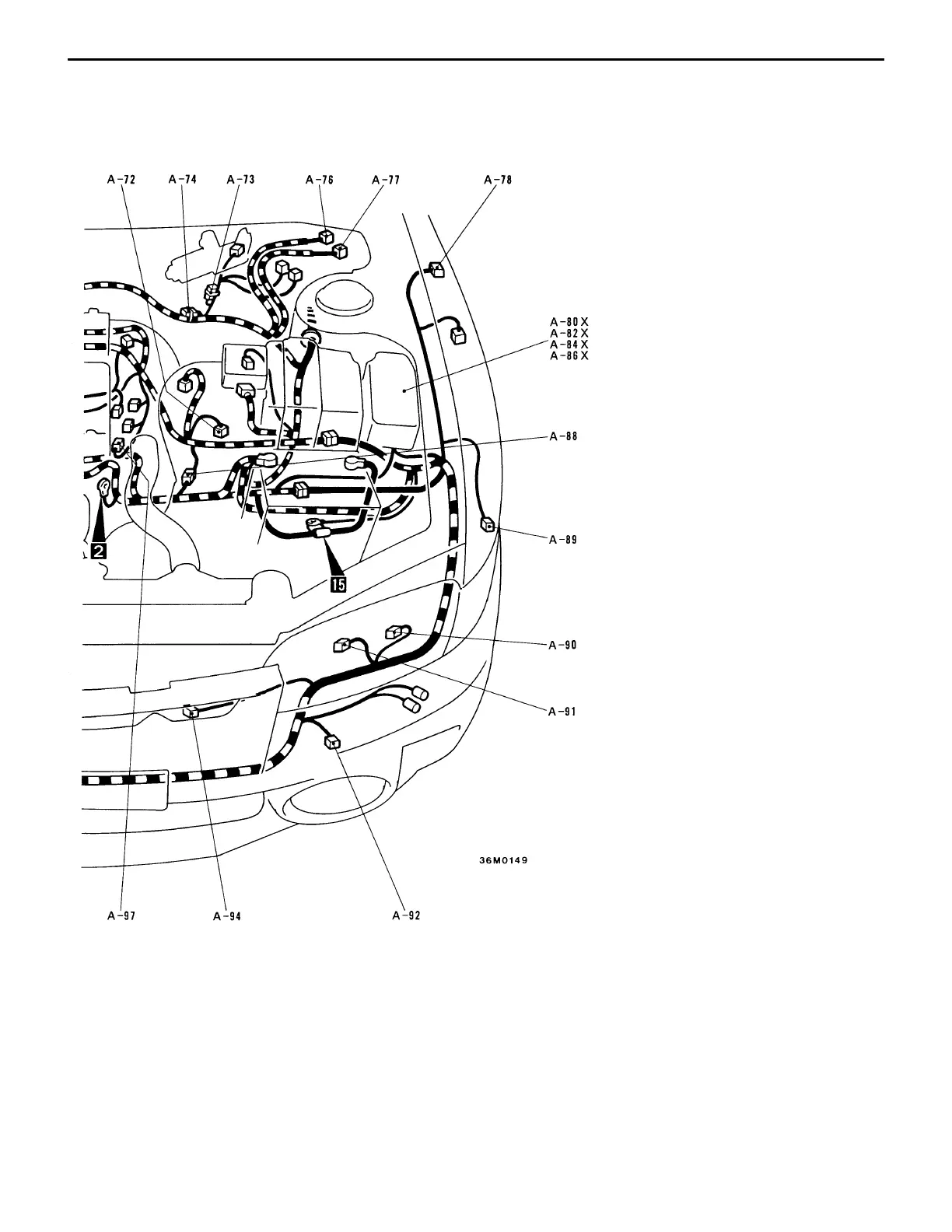

– Engine Compartment
WIRING HARNESS
CONFIGURATION DIAGRAMS
B-5
A-97 (3-B) Camshaft position sensor
A-99 (2-B) Condenser fan motor
A-101 (1) Power steering oil pressure switch
A-102 (1) Spare connector for fog lamp
A-103 (2-B) Fog lamp (RH)
A-104 (2) Position lamp (RH)
A-105 (3-B) Headlamp (RH)
A-106 (1-B) A/C compressor assembly
A-107 (2-BR) Front turn signal lamp (RH)
A-110 (3-GR) Ignition coil 1
A-111 (3-GR) Ignition coil 2
A-112X (4) Radiator fan relay (HI)
A-113X (4) Condenser fan relay (LO)
A-114X (4) Condenser fan relay (HI)
A-116X (4) A/C compressor relay
A-117 (2-GR) Side turn signal lamp (RH)
A-123 (5-B) Fuel pump relay No.2
A-124 (6-B) Fuel pump resistor
A-125 (2-B) Resistor (for injector)
A-126 (5-B) AYC relay
A-127 (2-B) Secondary air control solenoid valve
A-128 (2-GR) Condenser fan motor
A-129 (2-B) Water spray motor
A-130 (3-B) Water motor
A-131 (1-B) Noise condenser
