2-30
Options
２ Robot arm

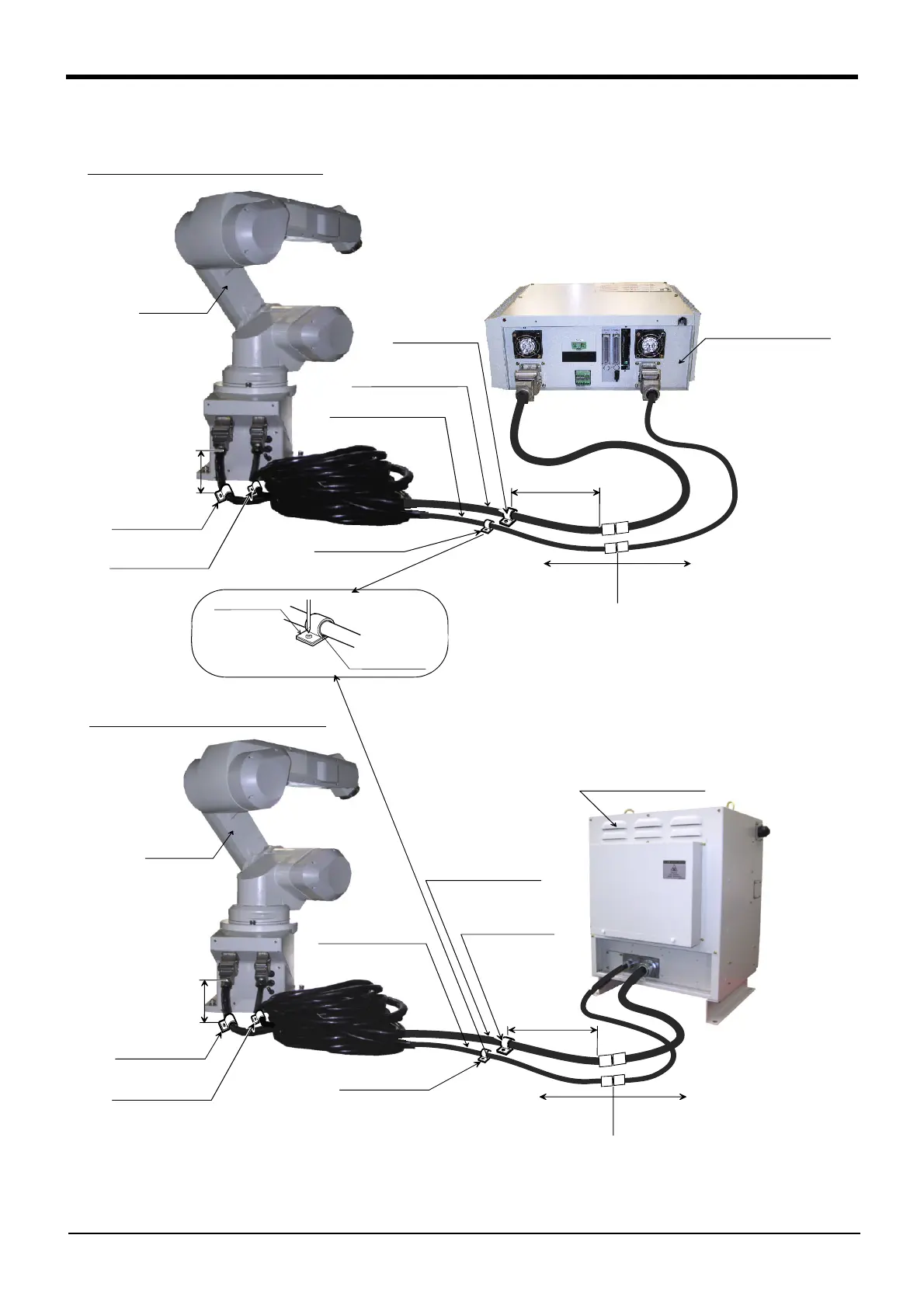

Fig.2-13 ： Fixing the flexible cable
Nylon clamp
Silicon rubber
<When using the CR2B-574 controller>
300～400ｍｍ
NK-14N
NK-18N
1S-□□LCBL(S)-01
1S-□□LCBL(P)-01
300～400ｍｍ
NK-14N
NK-18N
1S-□□LCBL(S)-01
1S-□□LCBL(P)-01
300～400ｍｍ
300～400ｍｍ
NK-18N
NK-14N
NK-18N
NK-14N
<When using the CR3-535M controller>
CR3-535M controller
CR2B-574 controller
Nylon clamp
The fixed cable 7m
(standard attachment)
Extended flexible cable
(option)
Extension section
The fixed cable 5m
(standard attachment)
Extended flexible cable
(option)
Extension section
Robot arm
Robot arm
Nylon clamp
Nylon clamp
Nylon clamp
Nylon clamp
Nylon clamp
Nylon clamp
Nylon clamp
Robot arm
