3-72
Options
3Controller

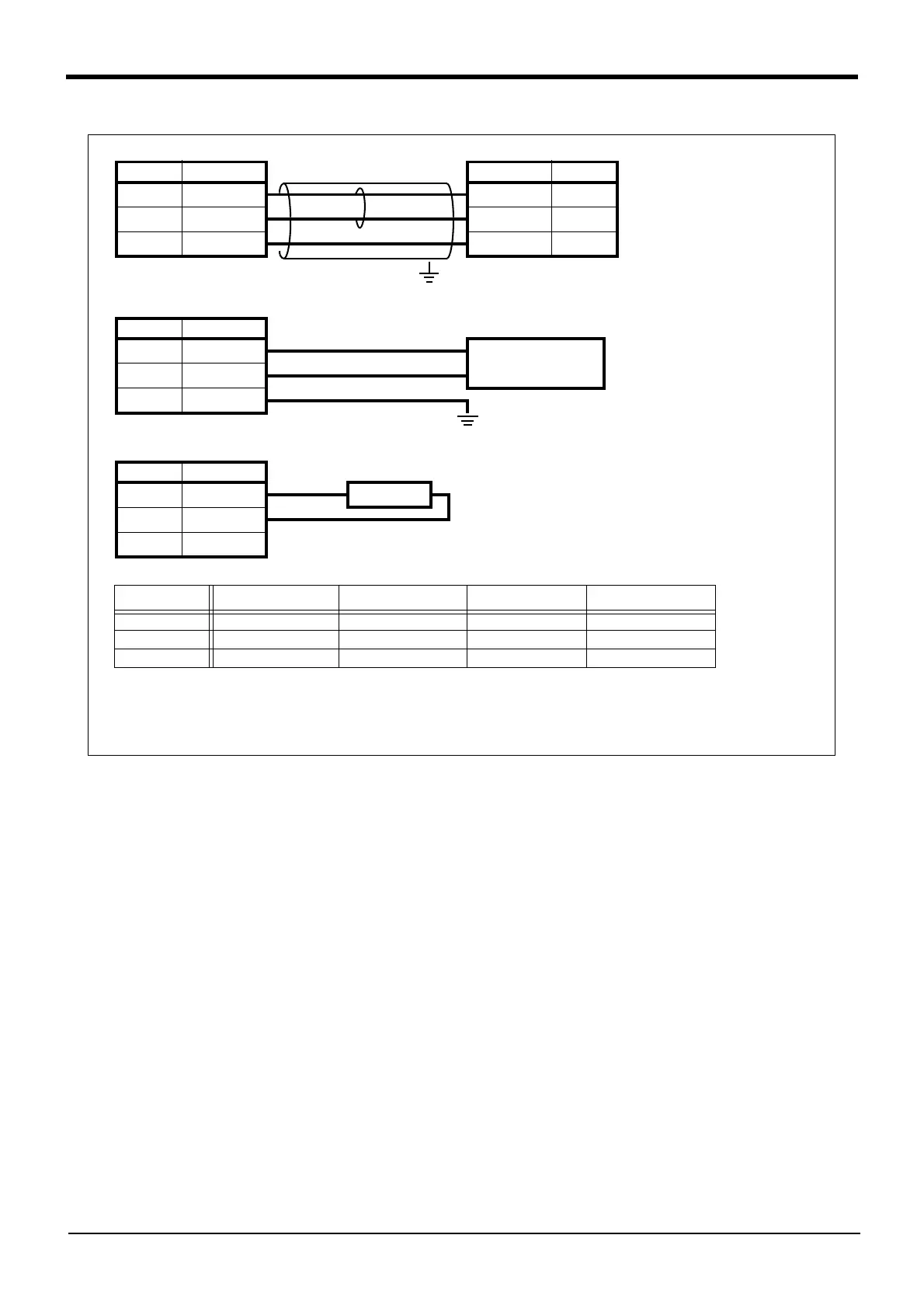

Fig.3-25 Spacifications for the connection cable
NETcable-1 (Network cable)
Pin No. RIO1/2 RIO1/2 Pin No.
1TXRXH TXRXH1
TXRXL TXRXL
SG(GND) SG(GND)
FG
DCcable-2 (Power cable)
Pin No. DCIN
24V
24V Power
224G(RG)
3FG(PE)
Connected the frame ground or protect ground
R-TM (Terminator)
Pin No. RIO1/2 100Ω
1TXRXH
TXRXL
SG(GND)
List of parts and manufacturer
Type Connector type Contact type Resistant Manufacturer
NETcable-1 1-178288-3 (2) 175218-3 (6) AMP
DCcable-2 2-178288-3 (1) 175218-3 (3) AMP
R-TM 1-178288-3 (1) 175218-3 (2) 100Ω(1/4W) (1) Equivalent to KOA.
Note 2)
Note 1)
Note 1) The 24V power supply is prepared by customer (The power consumption is approx. 0.3A.)
Note 2) The cable for general purpose can be used to the network cable. However, use the twisted shield cable of
AWG#22(0.3mm
2
) or more.
