FX1N Series Programmable Controllers Installation Notes 3.
3-10
3.7 Termination at Screw Terminals

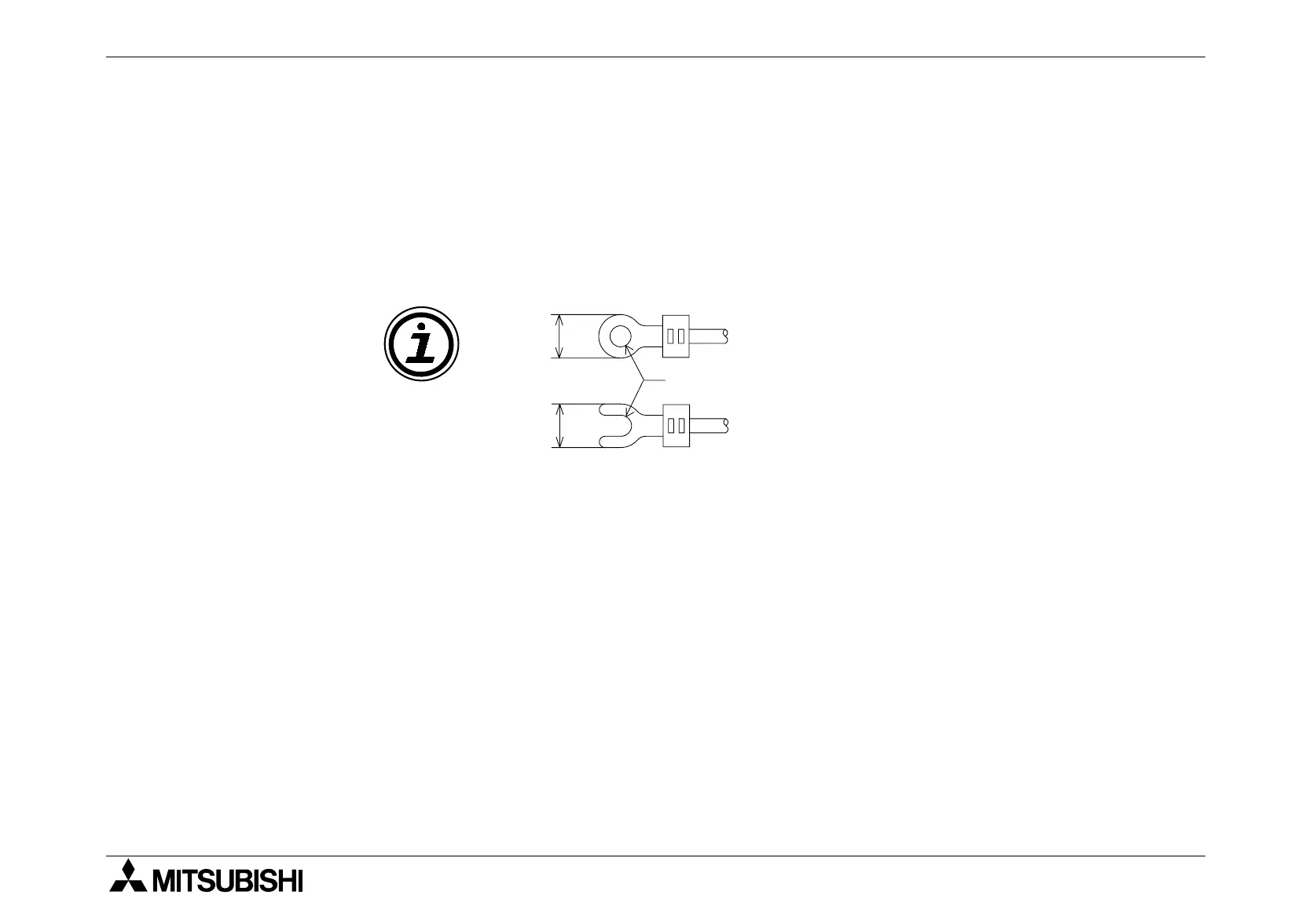

Cables terminating at a screw terminal of an FX0N,FX1N or FX2N product should be fitted with
insulated crimp terminals, see example shown. Terminals screws should be tightened to
between 0.5 to 0.8 Nm. Screw terminals must be secured to prevent a loose connection from
causing a malfunction
.
To suit M3 (0.12in)
screw terminals
Max.
6.2mm
0.24 in
Max.
6.2mm
0.24 in
