FX1N Series Programmable Controllers Outputs 6.
6-2

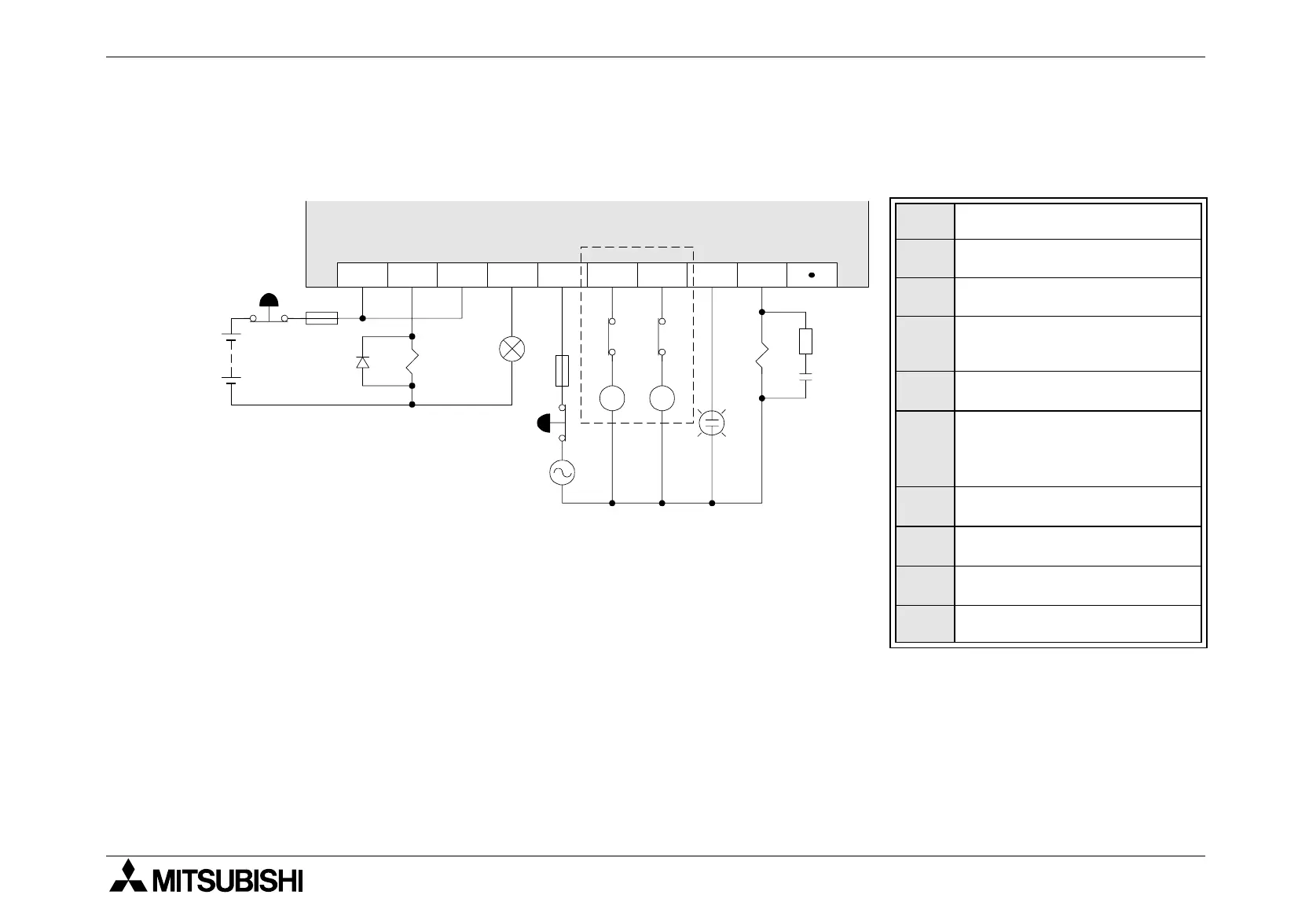

6.1.1 Relay Output Example
Typical Relay
Do not use this terminal
Fuse
Surge absorbing Diode.
External Mechanical
Interlock
Z
Emergency Stop
[
Noise suppressor 0.1µF
capacitor + 100-120Ω
resistorContactor
\
Valve
]
Incandescent Lamp
^
DC Power Supply
_
AC Power Supply
COM0
Y0 Y1 Y2 Y3
COM1 COM2
Y4 Y5
MC1 MC2
MC2 MC1
+
Z
Z
[
\
^
_
