FX1N Series Programmable Controllers Outputs 6.
6-3
6.1.2 Reliability Tests
The test results in the table below were gathered from a 1 sec ON/OFF test cycle. Please note
that the over current induced by in-rush greatly reduces the relay contacts service life. The
rated life for an inductive AC load such as a contactor or solenoid valve is 500,000 operations
at 20VA.
6.1.3 Response Times
OFF times increase as the load current decreases.

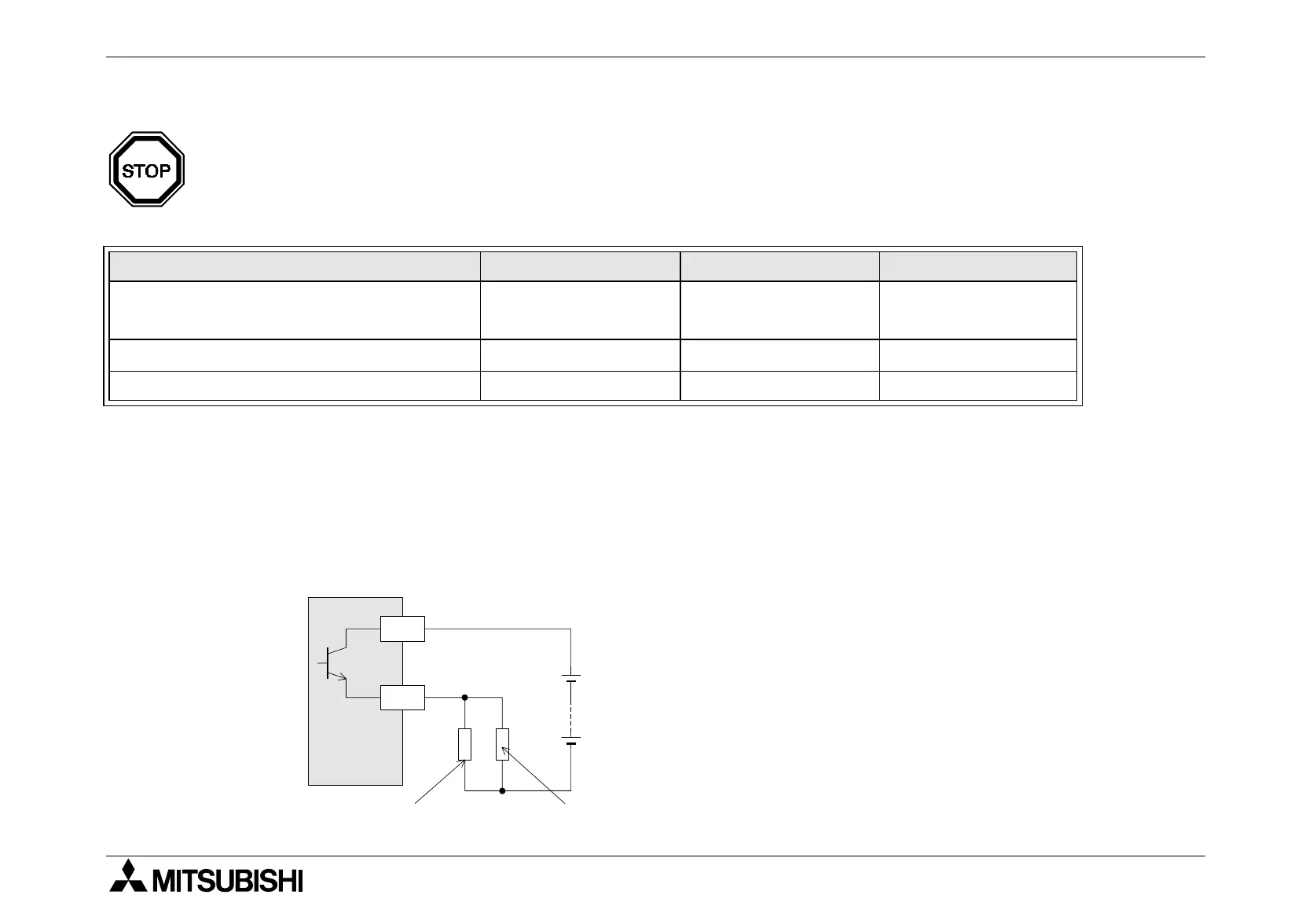

For improved response times use a 'dummy' resistor, see the figure below. If a response time
of 0.5 ms or better is required when using 'light loads' use a 'dummy' resistor and ensure the
signal line has a current greater than 60mA/24V DC
Y000 and Y001 are high speed response
outputs with the following characteristics:
10 - 100mA at 5 - 24V DC, 100kHz maximum
output signal.
If a high speed response is required, a current
of 10 - 100mA must be used.
20VA 35VA 80VA
Load capacity
0.2A/100VAC
0.1A/200VAC
0.35A/100V AC
0.17A/240V AC
0.8A/100V AC
0.4A/240V AC
Life of contact (cycles) 3,000,000 1,000,000 200,000
Example load (Mitsubishi contactor) S-K10 ~ S-K95 S-K100 ~ S-K150 S-K180,S-K400
5to24V
Y
+V
Dummy l oad Load
10 to 100mA
Dummy
Load
