FX1N Series Programmable Controllers Power Supply 4.
4-3

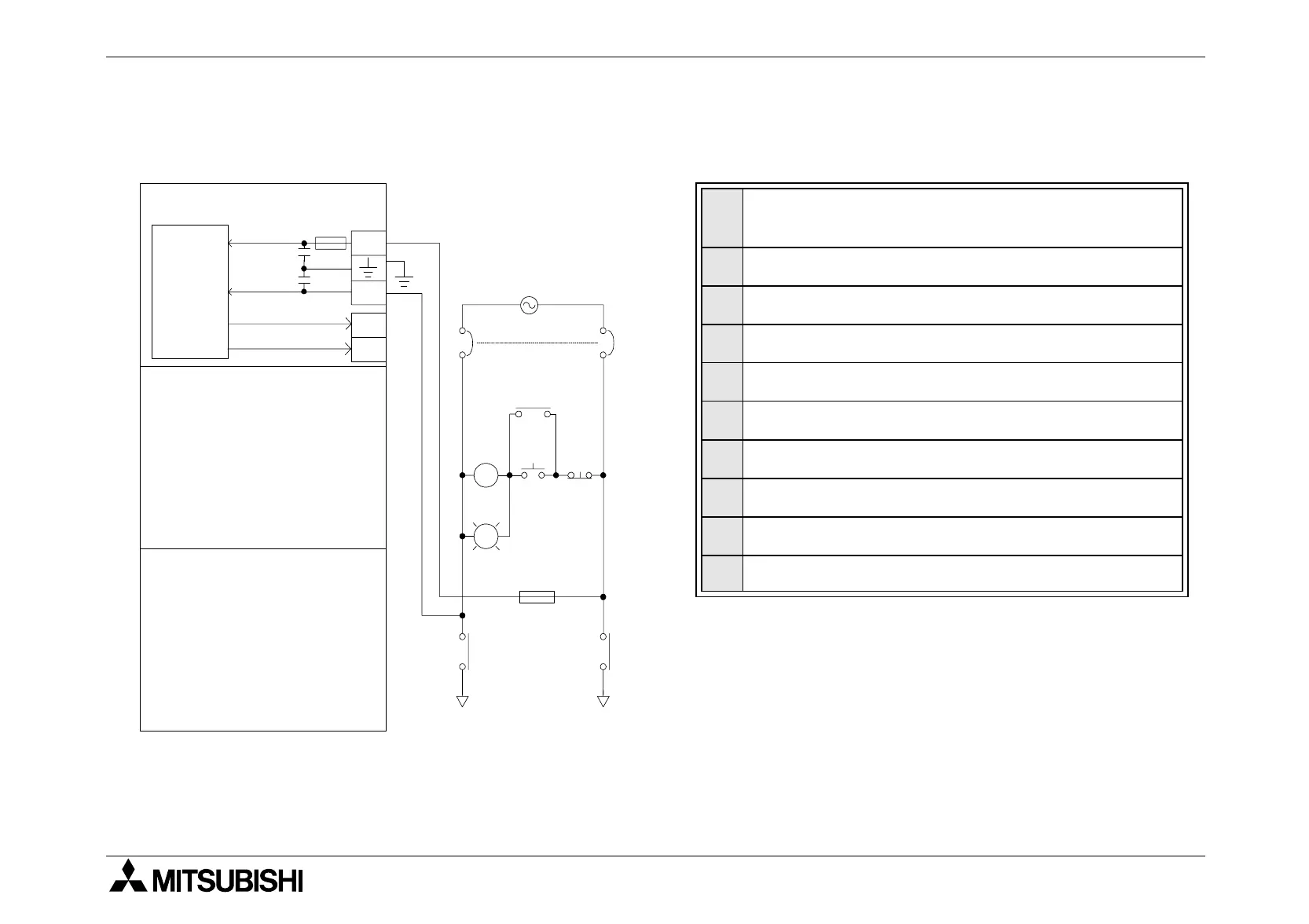

4.5 Example Wiring
4.5.1 AC Power supply
AC/DC
Converter
Extension block
Extension block
MC
PL
MC
MC MC
L
N
24V
0V
Power supply 100 - 240V AC +10% -15%
50 - 60 Hz
Circuit protector or Fuse
Emergency stop
Power supply switch
Power ON pilot indicator
Power supply for loads
Ground
Fuse
Main unit
Breaker


