FX1N Series Programmable Controllers Inputs 5.
5-6

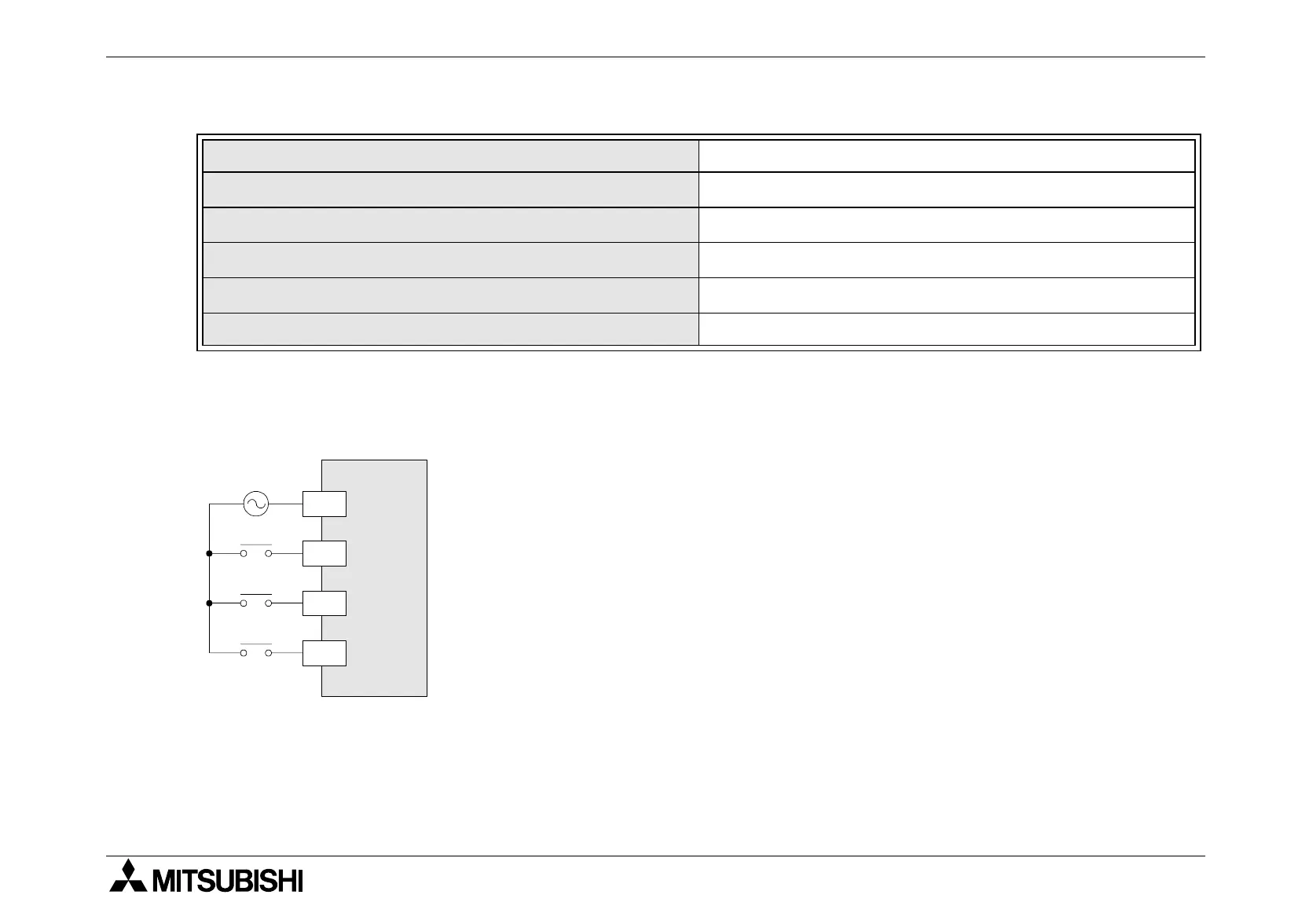

5.2 AC110V Input Extension Block
5.2.1 Input Circuit Connection
FX
0N
-8EX-UA1/UL
Input voltage 85-132V AC 50-60Hz
Input impedance 21kΩ/50HZ 18kΩ/60Hz
Input current 4.7mA 100V AC/50Hz 6.2mA 110V AC/60Hz
OFF à
àà
à ON/ON à
àà
à OFF; input switching current 80V 3.8mA/30V 1.7mA
Response time 25ms
Circuit isolation / Operation indication Photocoupler/LED is lit
X0
COM1
85-132 V AC
50/60 Hz
X1
X2
