FX1N Series Programmable Controllers Inputs 5.
5-5

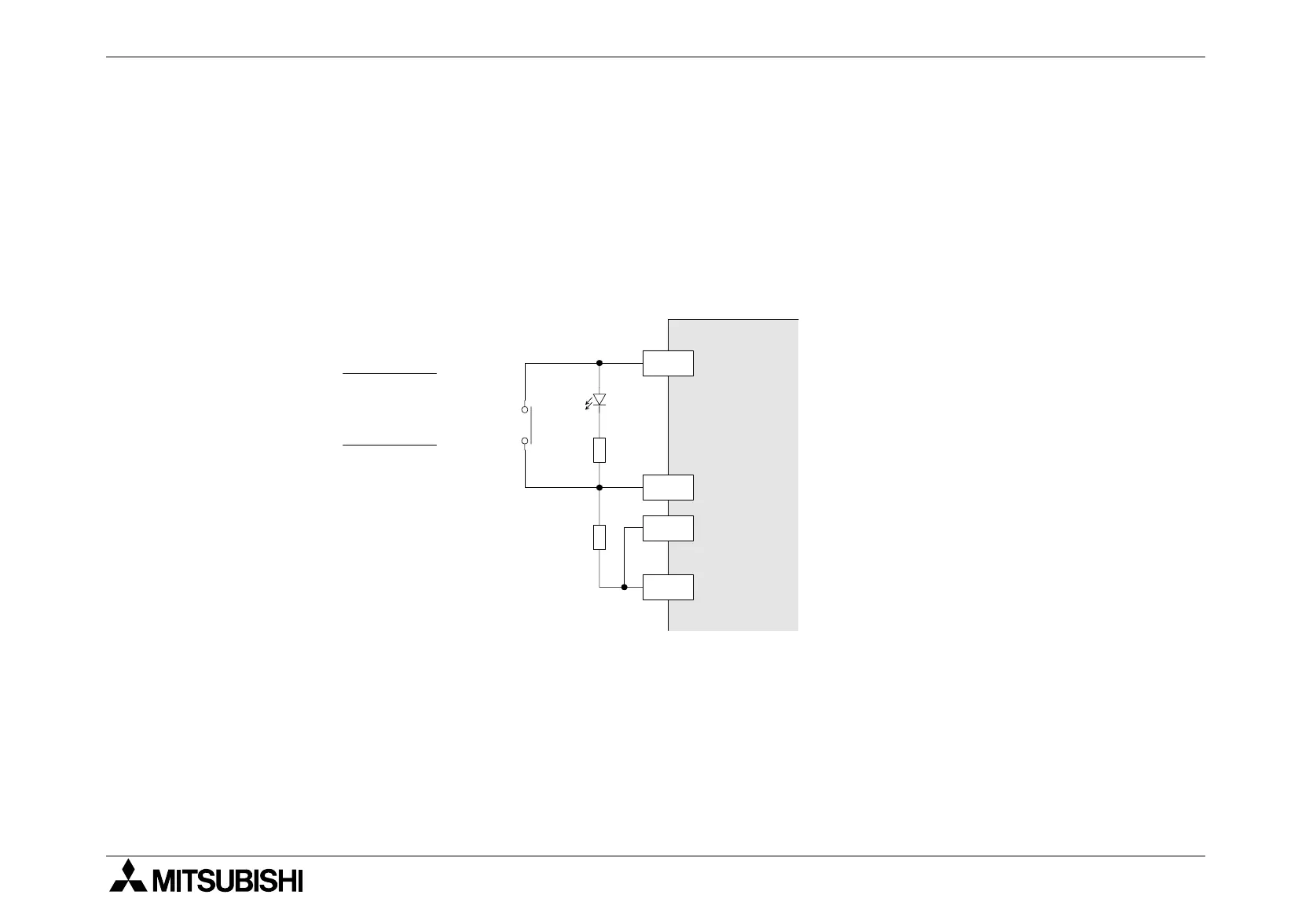

5.1.4 Resistors and Inputs Connected in Parallel
Parallel resistance Rp: FX1N = 15k. If resistance Rp is less than the stated value, then add
Rb. See equation 1 for Rb calculation.
Alternatively; Current leakage: FX1N = 1.5mA. If the current leakage is greater than the stated
value, then add Rb. See equation 2 for Rb calculation.
Parallel LED
Rb
4Rp
15 - Rp
Eqn 1 :
Rb
6
I
-1.5
Eqn 2 :
24V
X
0V
S/S
Rp
Rb
