FX1N Series Programmable Controllers Outputs 6.
6-4

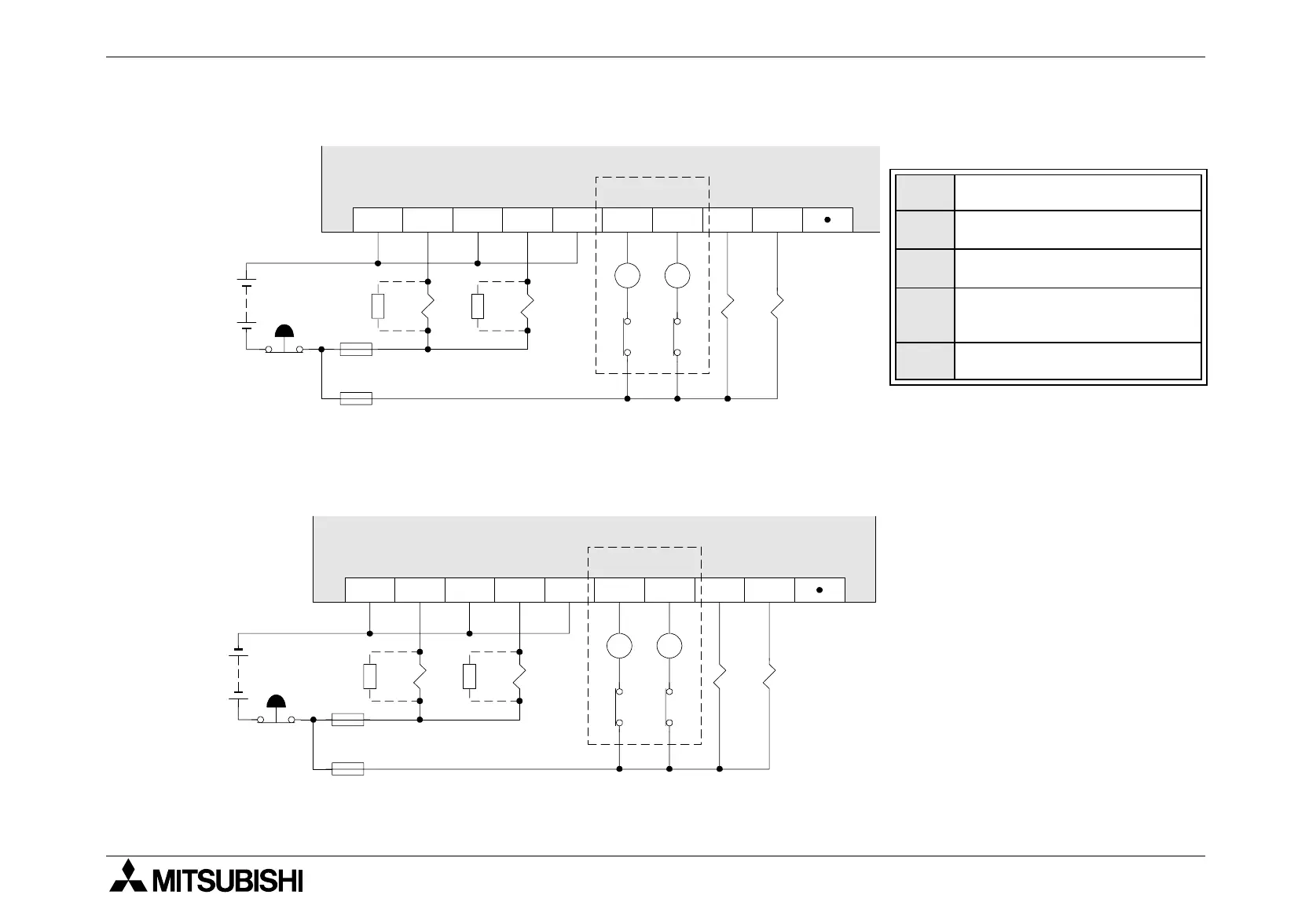

6.1.4 Transistor Output Example
6.1.5 Japanese Model Transistor Output
Do not use this terminal
Emergency Stop
Fuse
External Mechanical
Interlock
Z
DC Power Supply
+V0 Y0 Y1 Y2 Y3+V1 +V2 Y4 Y5
MC1 MC2
MC2 MC1
+
Z
COM0
Y0 Y1 Y2 Y3
COM1 COM2
Y4 Y5
MC1 MC2
MC2 MC1
+
Z
