Mounting
Installing the Sensor Modules
2. Remove the transport plugs: Gently pull the transport plugs out of the sensor module receptacles and
pull the plugs from the sensor module cables.
CAUTION! Cautiously pull the sensor module cables out of the housing until you feel the stop!

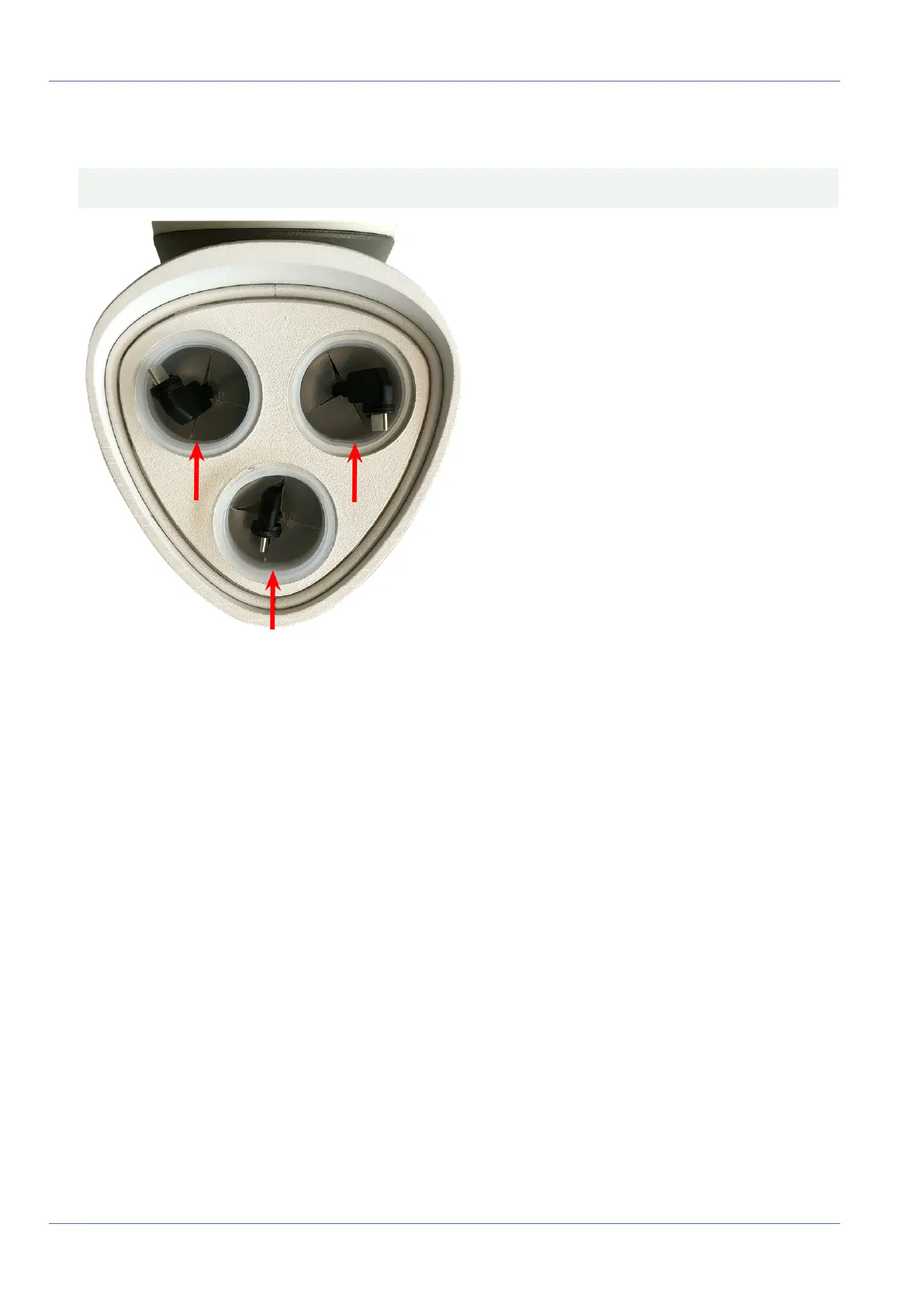

Fig. 7: Remove the transport plugs
39 / 110
