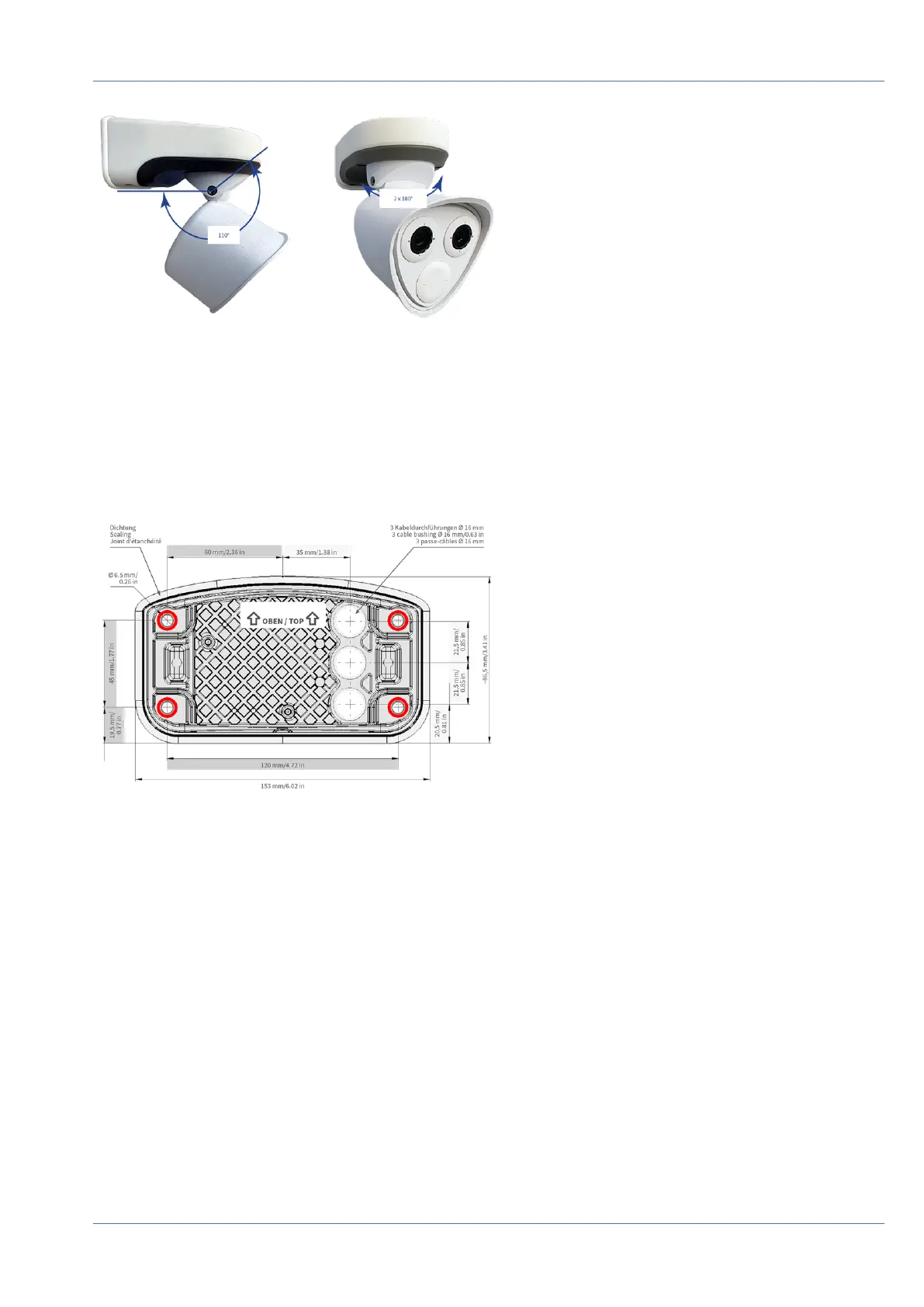

Fig. 29: Tiltability when mounted to a wall
Drill the Holes for the Mounting Plate
Mark the holes for drilling using the drilling template (see Drilling Template, p. 11). When drilling, use a suit-
able 8mm drill bit and drill holes with at least 60mm/1.2" depth.
Fully push the dowels M.13 into the holes you drilled.
Fig. 30: Mounting plate with holes for positioning the fastener screws
Mounting
