Mounting
Connecting the camera
Prepare Mounting Plate and Cables
1.

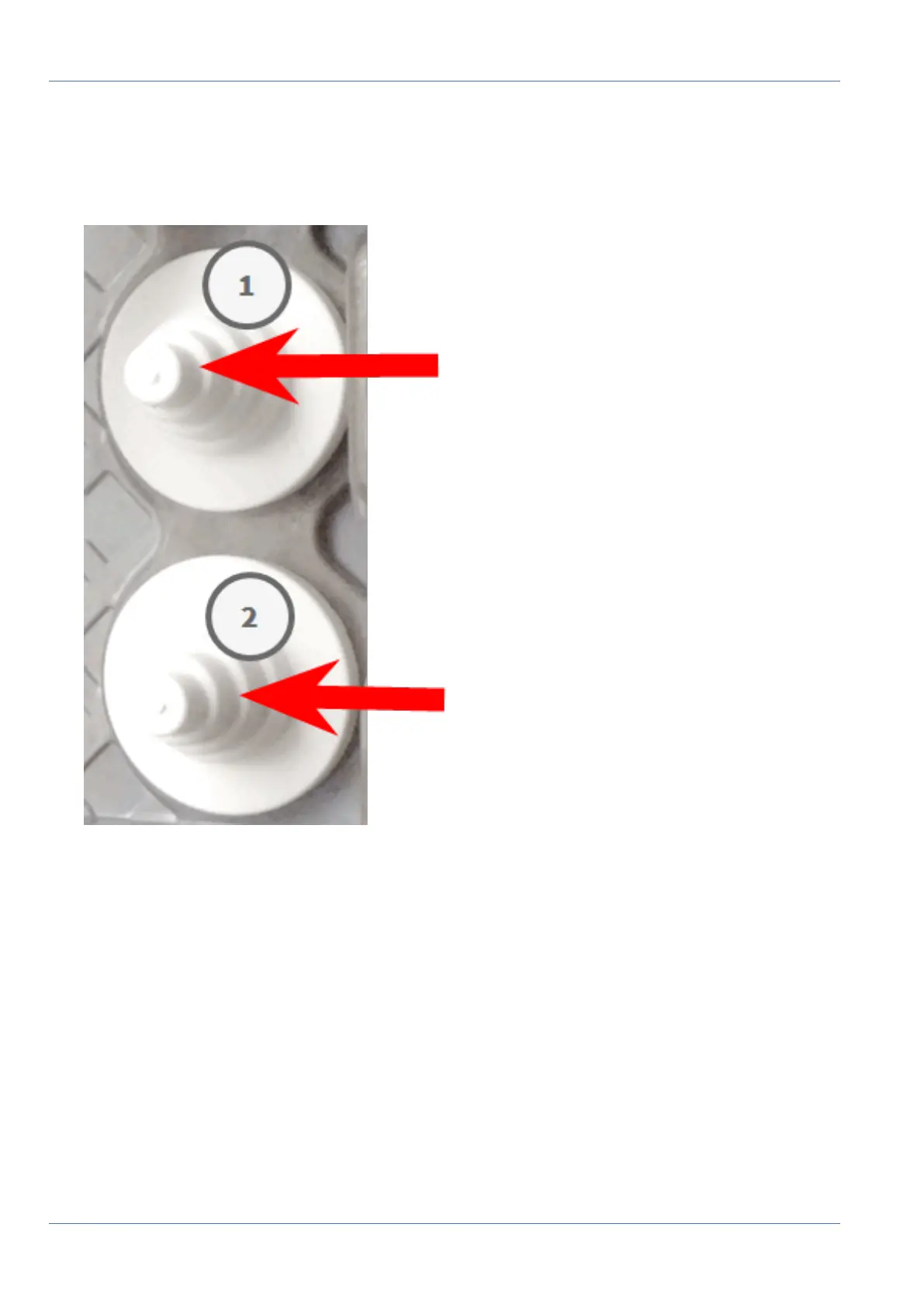

Cut the tip of the upper white plug in the mounting plate ① and two steps of the lower white plug in the
mounting plate ① :
2. Rearrange the plugs in the mounting plate as required.
73 / 110
