Mounting
Finishing the Installation of the Camera
3. Insert the two housing plugs M.3 firmly into the holes of the fastening screws.

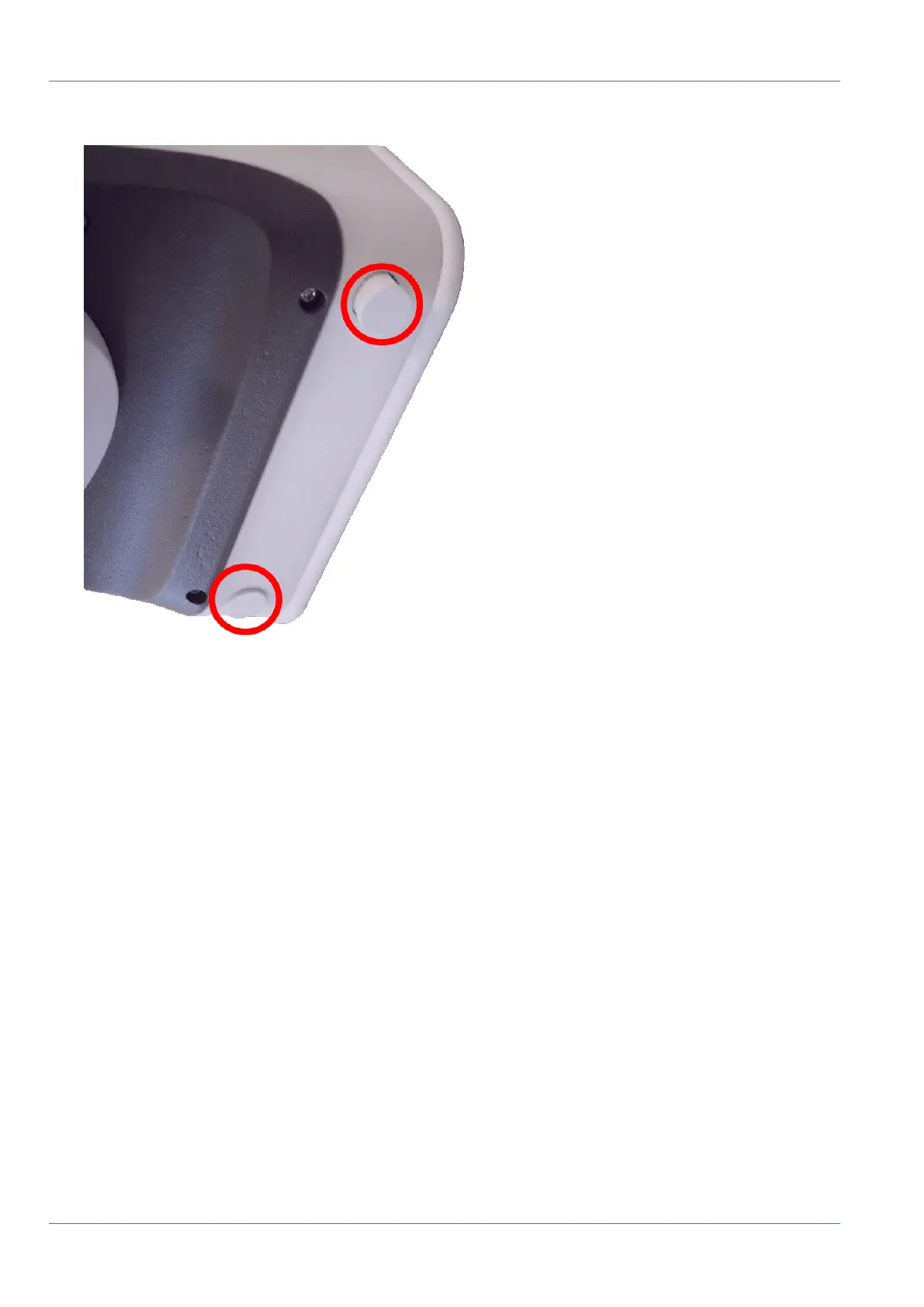

Fig. 71: Apply rubber plugs
4. Roughly point the camera into its direction of view.
85 / 110
