Operating the Camera
Focusing the TELE 15° Sensor Module

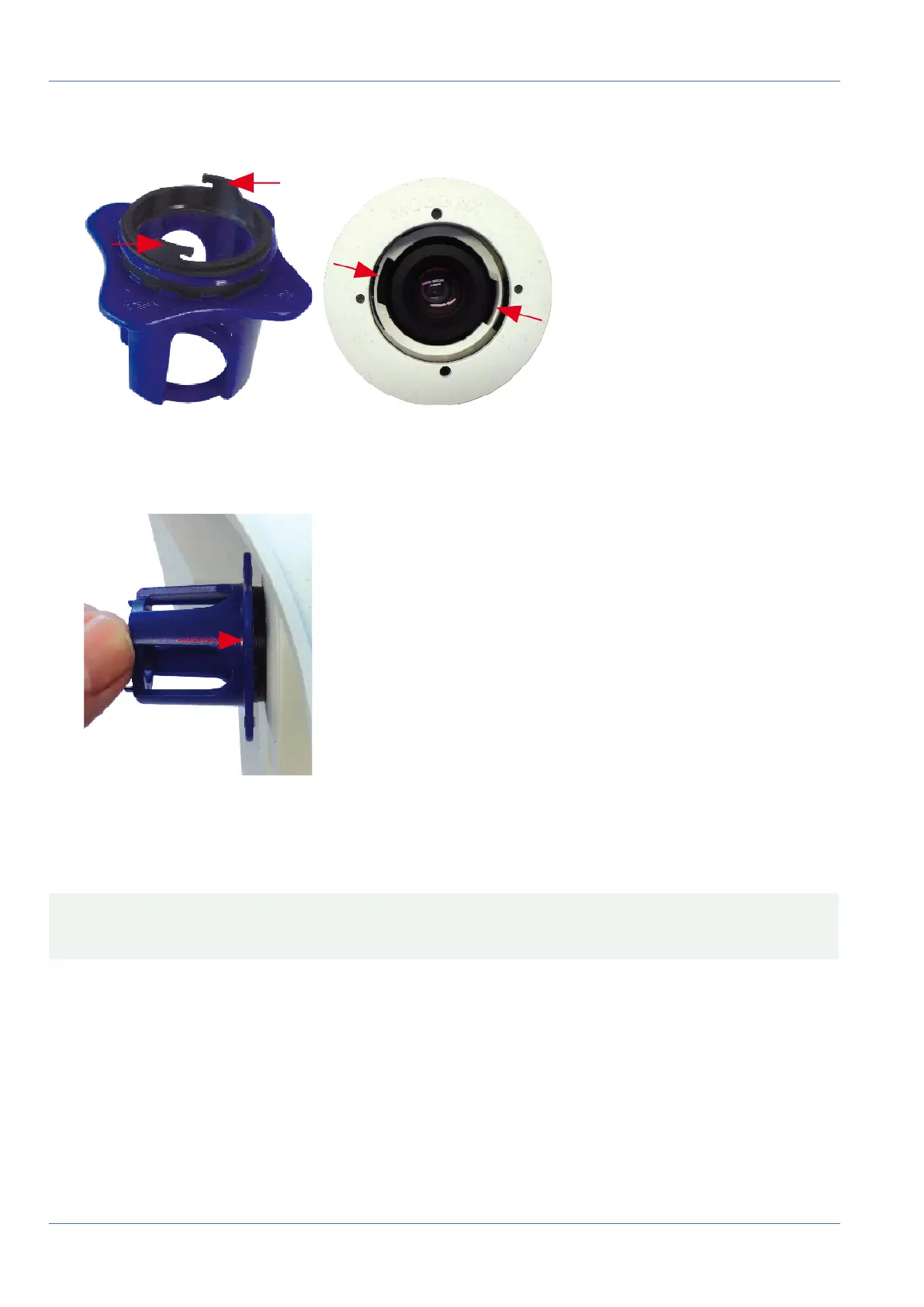

7. Set the lens protection glass onto the notches of the blue lens wrench and position the protection glass
with its two prongs over the corresponding receptacles of the sensor module:
Fig. 86: Insert lens protection glass using the lens wrench
8. Using the lens wrench, press the lens protection glass firmly into the sensor module, until the glass fits
flush with the sensor module housing.
Fig. 87: Push hard to insert lens protection glass and turn to lock
9. Turn the lens protection glass clockwise using the blue lens wrench until it locks in place.
10. If required, clean the outside of the lens protection glass with a clean, lint-free cloth:
CAUTION! After adjusting the focus, make sure that the sensor module is aligned properly and that it is
locked in place (use the gray module wrench to turn the sensor module clockwise until it stops).
99 / 110
