39

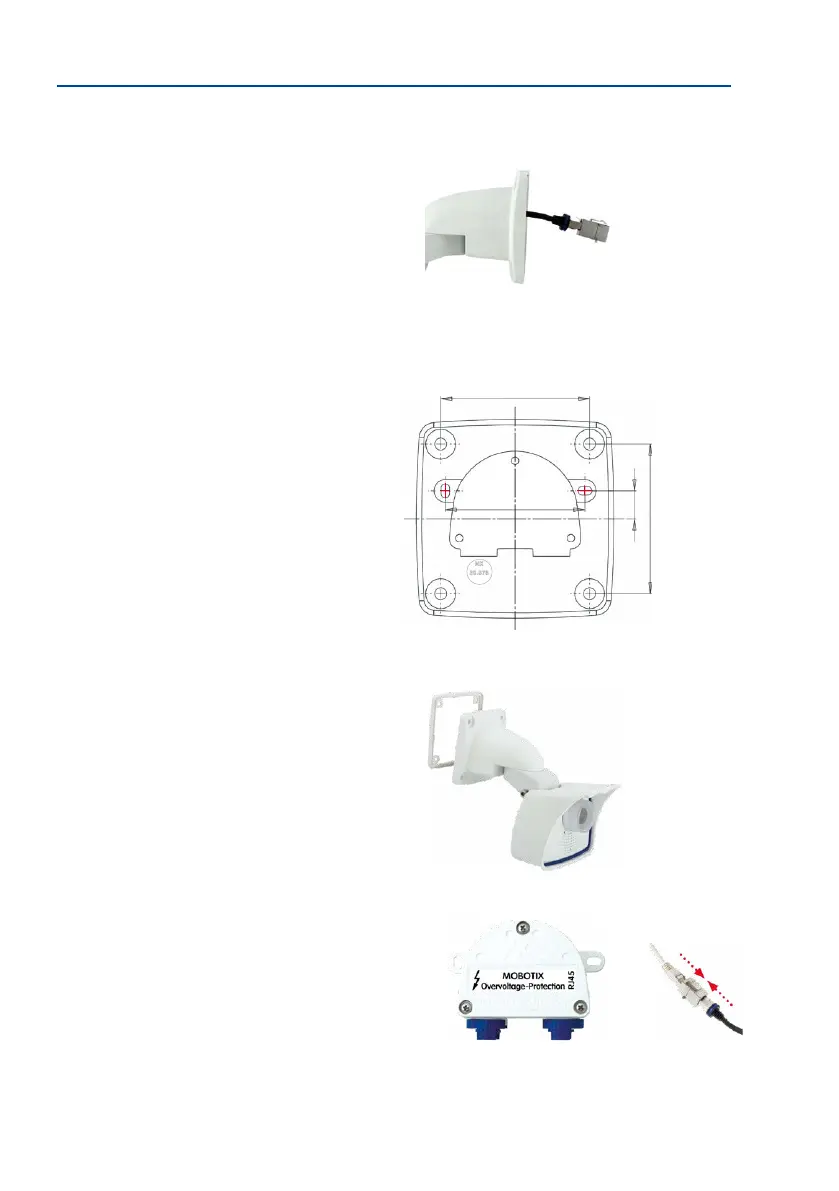

Mounting the Camera with Wall Mount
Procedure
1. Install and prepare the network connection: The
pre-installed camera patch cable must be connected
with the on-site network cable. The connection
can either be established using an installed ush-
mounted socket with RJ45 connector or – in the case
of a protruding network or patch cable – using the
MX-Overvoltage-Protection-Box. In both cases, the
connection is well protected and is neither accessible
nor visible from the outside.
2. Drill the holes: Use the drilling template for the
camera (available from www.mobotix.com,
Support > Download Center > Documentation >
Drilling Templates). Drill the holes for the supplied
screw anchors. Screw anchors do not have to be
tted if the surface is made of wood. To secure
the mount, the supplied stainless steel hex head
screws will later be screwed directly into the sur
-
face. In order to facilitate screwing in wood, the
positions should rst be predrilled using a 2 mm
drill bit, for example (drilling depth just slightly
less than screw length).
3.
Attach wall seal: Place the white rubber seal with the
groove on the edge of the wall mount.
4.
Connect the cable: Connect the on-site network cable
to the camera patch cable using an adapter or insert
the patch cable into the RJ45 outlet. When using an
MX-Overvoltage-Protection-Box, follow the installa
-
tion instructions supplied with the product. You can
download the PDF le from the MOBOTIX website
www.mobotix.com in the Support > Download
Center > Documentation > Manuals section. Make
sure that the cables are not bent or squashed.
Interface-Box
M26 Wall Mount
No screw anchors are
required in wooden surfaces
Additional seal possible
(e.g., heat shrink tube)
