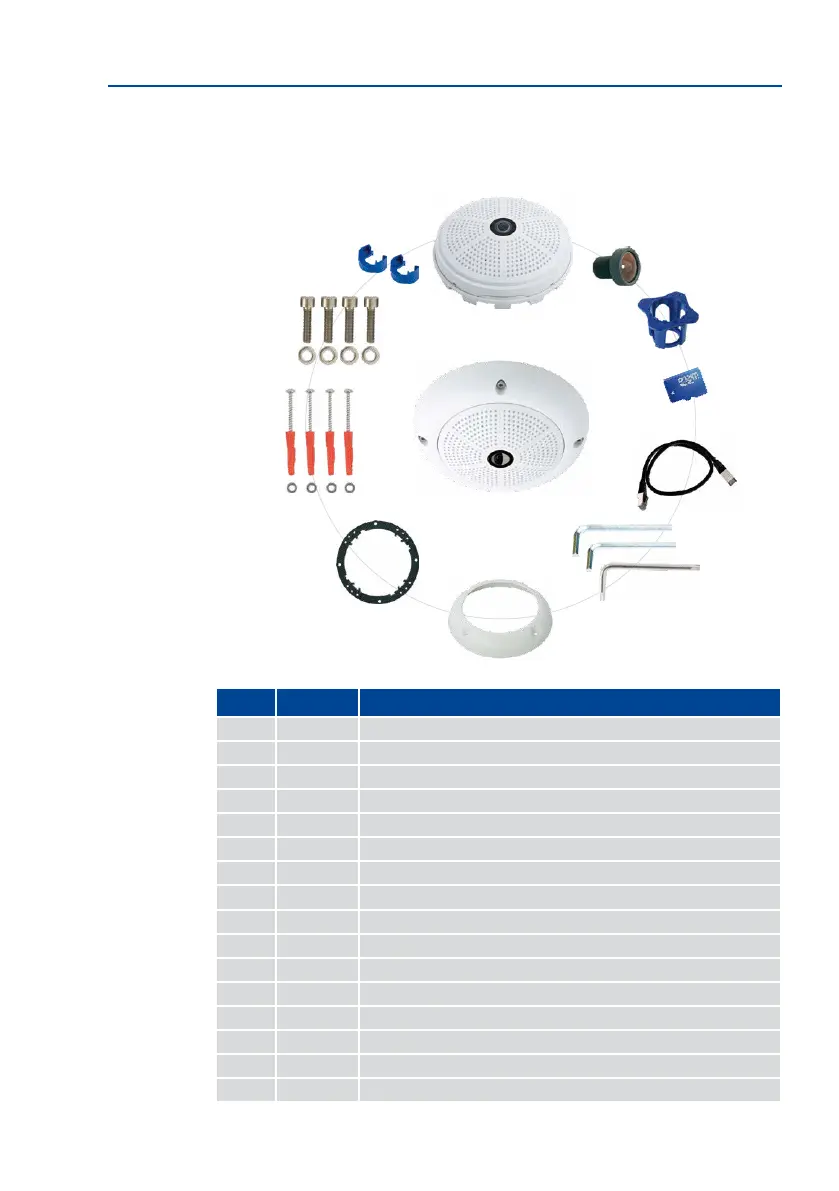

1.3 Delivered Parts and Dimensions

1.3.1 Q26 Camera

Item Quantity Part Name

1.1 1 Camera housing

1.2 1 Lens (installed)

1.3 1 Lens wrench

1.4 1 microSD card (SDXC, SDHC pre-installed)

1.5 1 Ethernet patch cable CAT5 0.5 m/20 in, installed

1.6 1 Allen wrench 3 mm

1.7 1 Allen wrench 2 mm

1.8 1 Torx wrench TX20

1.9 1 Outer shell

1.10 4 Mounting ring

1.11 4 Stainless steel washers 5.3 mm dia.

1.12 4 Dowels 8 mm

1.13 4 Stainless steel Torx screws 4.5x60 mm

1.14 4 Stainless steel washers 4.3 mm dia.

1.15 1 Stainless steel Allen screws M4x16 mm

1.16 2 Cable lock with bayonet catch (Ethernet patch cable, MiniUSB)

1.1

1.15

1.14

1.3

1.12

1.11

1.13

1.2

1.4

1.5

1.6

1.7

1.8

1.9

1.16

1.10
