Q26 Camera Manual: Installation

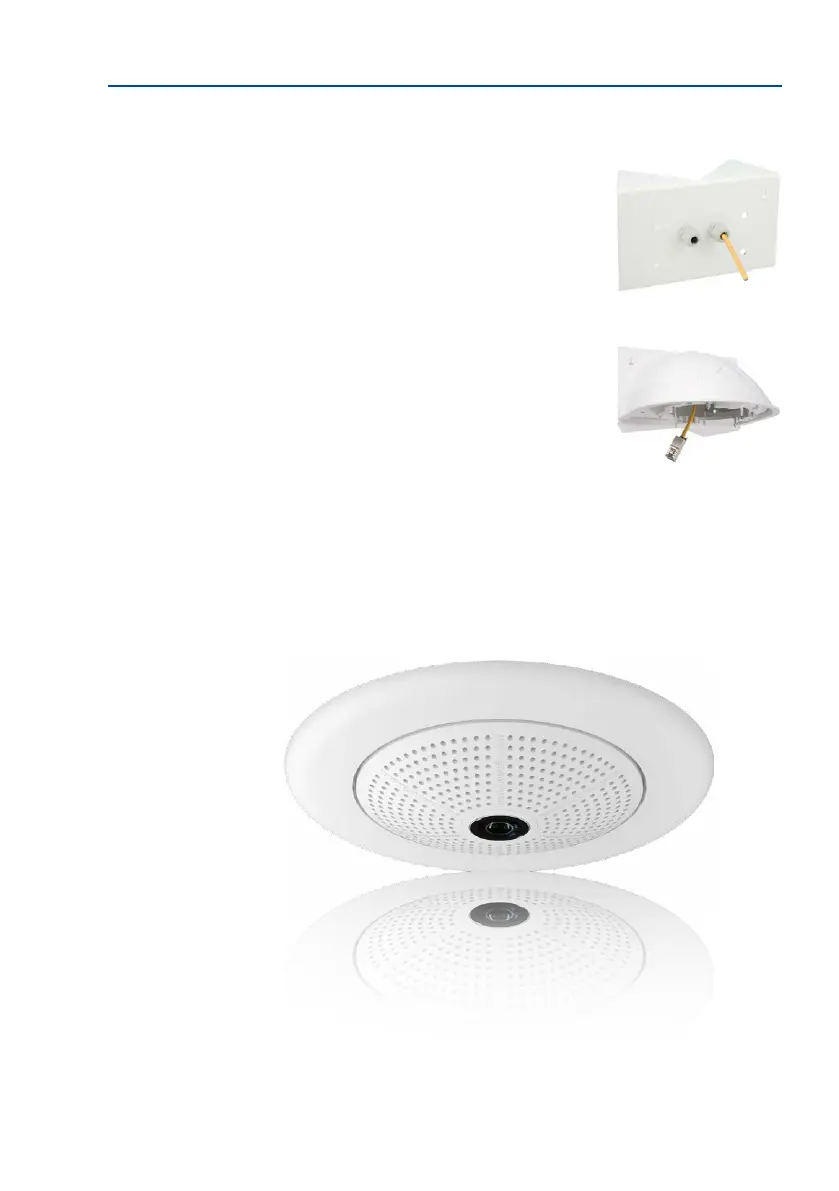

2.7.4 Mounting the Wall Mount to the Corner and Pole Mount
• Feed the cables through the appropriate hole at the
back of the Outdoor Wall Mount. The wall sealing on
the Wall Mount must be in place already (see Section 2.6,
«Installing the Wall Mount»).
• Use the 6x20 mm Allen screws, Ø 6 mm washers and M6
nuts included with the Corner and Pole Mount and attach
the Wall Mount to the Corner and Pole Mount.
• Then continue with the remaining work steps described
in Section 2.6.2!
