Q26 Camera Manual: Installation

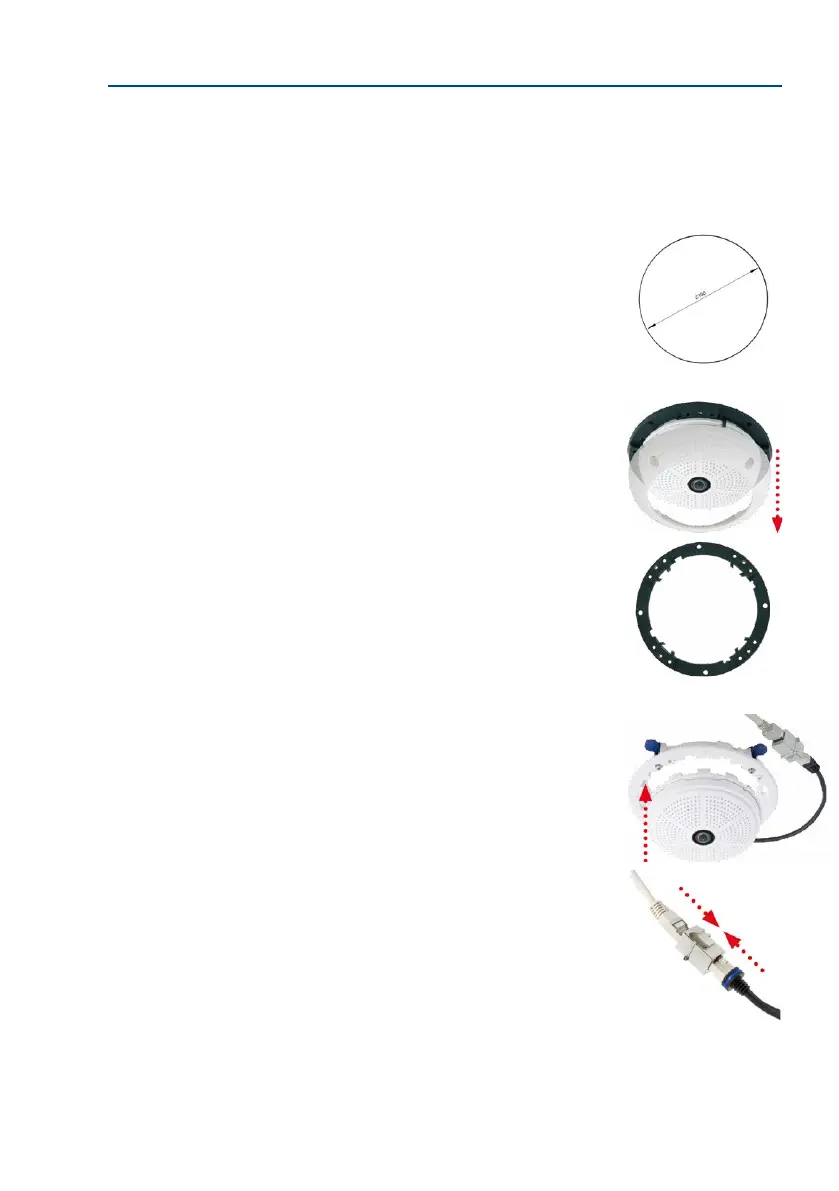

2.4.2 Procedure
1. Prepare the network connection: Run the network cable above the suspended ceiling
and ensure that enough cable slack is available.
2. Cut a hole for installation: Cut a round hole for camera
installation (e.g. with a 150 mm hole saw). Use the sup
-
plied cutting template of the In-Ceiling Set (available for
downloading from www.mobotix.com).
3. Remove the outer shell: Remove all four Allen screws
using the supplied Allen wrench and li o the outer shell.
4. Remove the mounting ring: Separate the mounting ring
from the camera housing. This ring is not required when
mounting the camera in the In-Ceiling Set.
5.
Place the camera in the In-Ceiling Set: The dovetail guides
at the back of the camera housing t exactly into the
openings of the In-Ceiling mounting ring.
6.
Connect the cable: Connect the on-site network cable to
the camera network cable using a standard connector.
