85
Mounting the Camera with the On-Wall Set
7. Insert the camera and the In-Ceiling Set into the hole: Make sure that all winged
cams are retracted before placing the In-Ceiling Set with the camera into the hole.
Pay attention to the orientation: the OBEN / TOP arrow should point in the direction
of the longer wall for ceiling installation in rectangular rooms. Tightening the screws
of the In-Ceiling Set extends the winged cams, thus rmly holding the set in place.
8. Install the decorative ring: Use the two wrenches from
the In-Ceiling Set to place the ring on the set as shown in
the gure and turn the ring clockwise until it stops.
The two wrenches from the In-Ceiling Set may also be
used for dismounting. Insert them as shown and turn the
ring counter-clockwise. Loosen the screws of the In-Ceiling
Set; this will automatically retract the winged cams. You
can now remove the In-Ceiling Set, with the camera still
attached, from the ceiling.
9.
Clean the lens: If necessary, gently clean the front of the lens with a so cotton cloth.
Do not apply excessive pressure to the surface of the glass when cleaning the lens.
10.
Establish a connection to the camera, check the image: Establish a connection to
the camera as described in Section 3.1, «Manual and Automatic Operation – Overview»
and the following sections. The live image from the camera should be visible on the
computer monitor. Check image sections on the computer monitor as well.

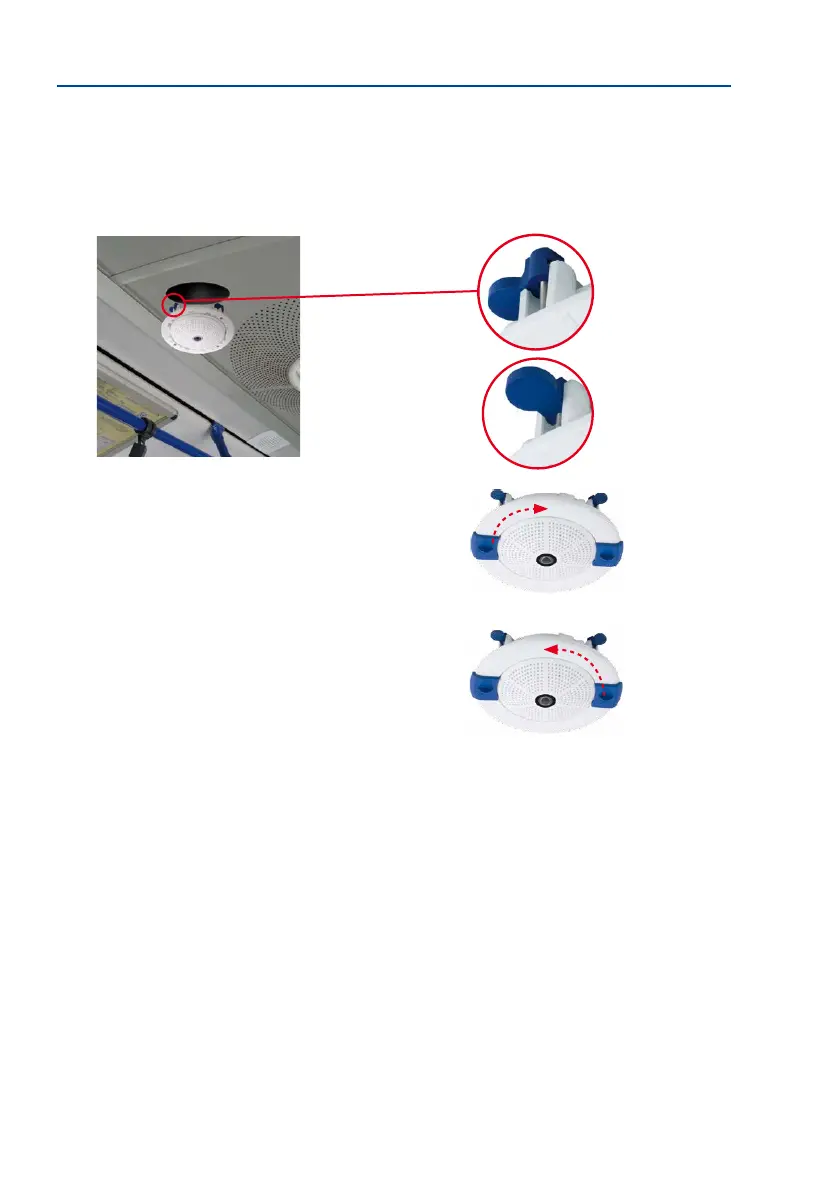

The blue winged cams
(see le) automatically
secure the In-Ceiling
Set in the ceiling when
tightening the screws
Installing the decorative
ring: turn clockwise
Removing the decorative
ring: turn counter-clockwise
- only relevant when com-
pletely removing the camera
