Mobotix Q26 - Wall-Mounted

57
Preparing the Installation
2.1.1 Wall-Mounted
To make optimal use of the high-resolution 180° panorama functionality of the Q26, the
camera must be mounted on an internal or external wall. The entire hemisphere of the room
directly in front of the camera is then eectively monitored, from the wall on the le of the
camera to the wall on the right. Corresponding ne-tuning in the user interface soware
allows the displayed panorama image to be adjusted to dierent practical applications (see
Section 3.3, «Virtual PTZ and Full Image Recording»).

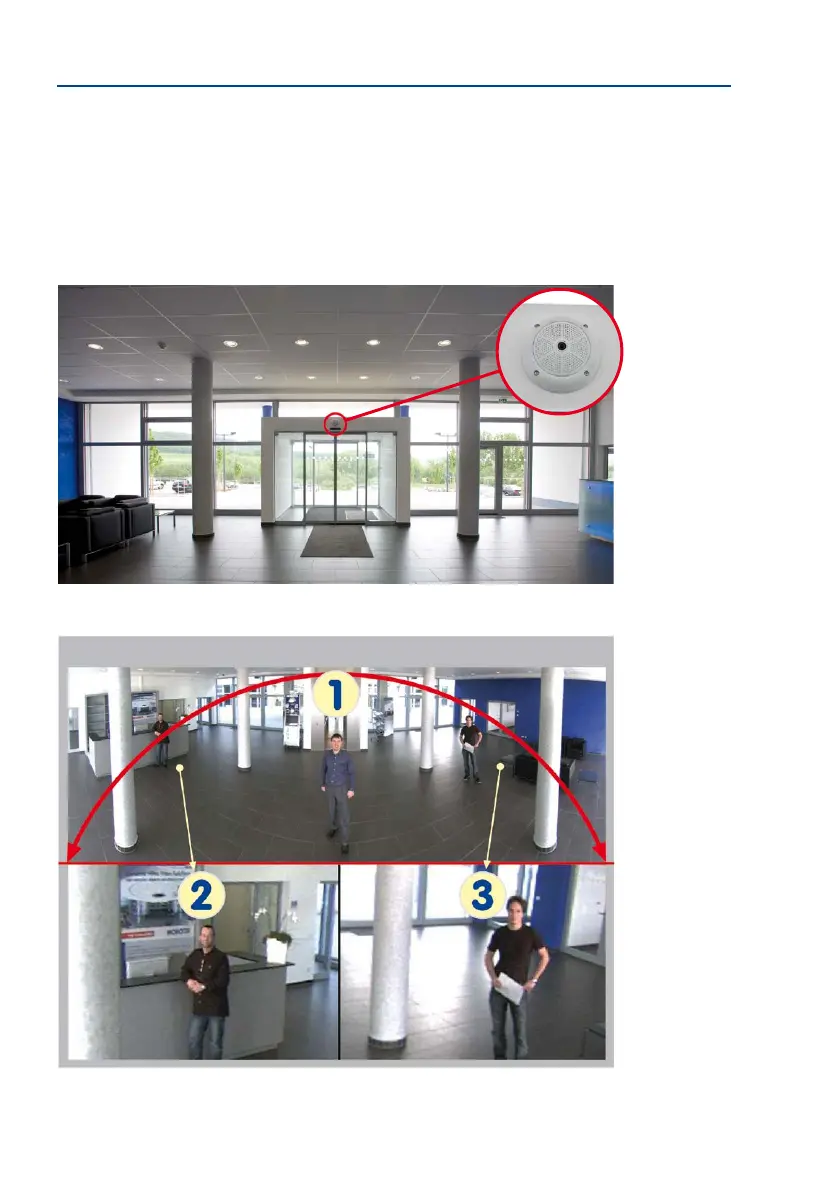

Wall installation with
On-Wall Set 10°
The camera should pref-
erably be mounted in
the middle of the room
to be monitored using
the 10° On-Wall Set
Original image from the
camera shown above
using the 10° On-Wall Set
(Panorama Focus View)
The Q26 Panorama: one camera - three simultaneous views
High-resolution 180° panorama
Virtual PTZ 1 Virtual PTZ 2
