Q26 Camera Manual: Installation
6. Mount the dome: Screw the dome on in a clockwise direction using the supplied
wrench. If required, clean the dome gently using a so cotton cloth before completing
installation. Check the sharpness of the camera image again, and correct it if necessary.

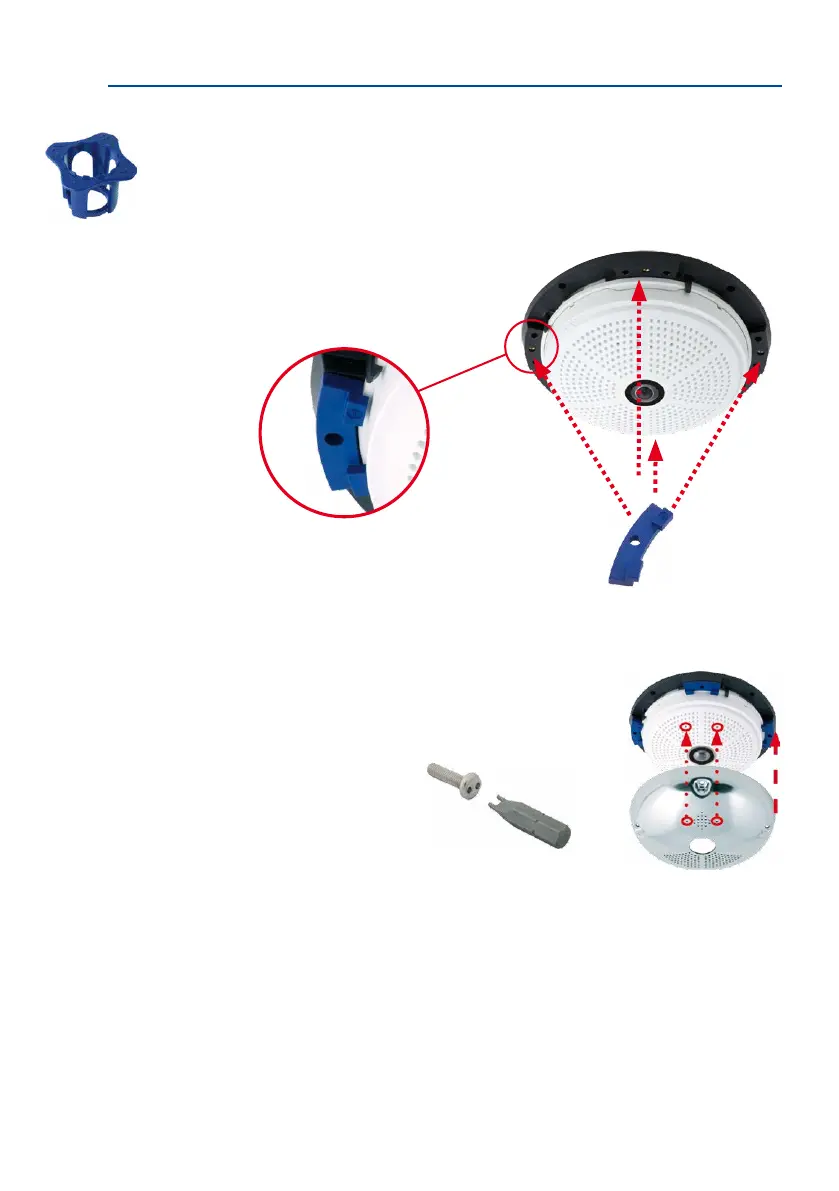

7. Mount the spacers: Place the four spacers on the mounting ring.
8. Mount the stainless steel cover: Position the stainless
steel cover as shown and tighten the security screws using
the included two-hole driver bit.
Lens wrench for
installing the dome
4x
Spacers for Vandalism set
Maximum torque for all
screws is 1 to 1.2 Nm
Security screw and
two-hole driver bit
Stainless steel cover must be
positioned correctly to line
up with the LED openings
To Next Page
