SERVICE MENU
EN
SQ6 - OTHER COMPONENTS

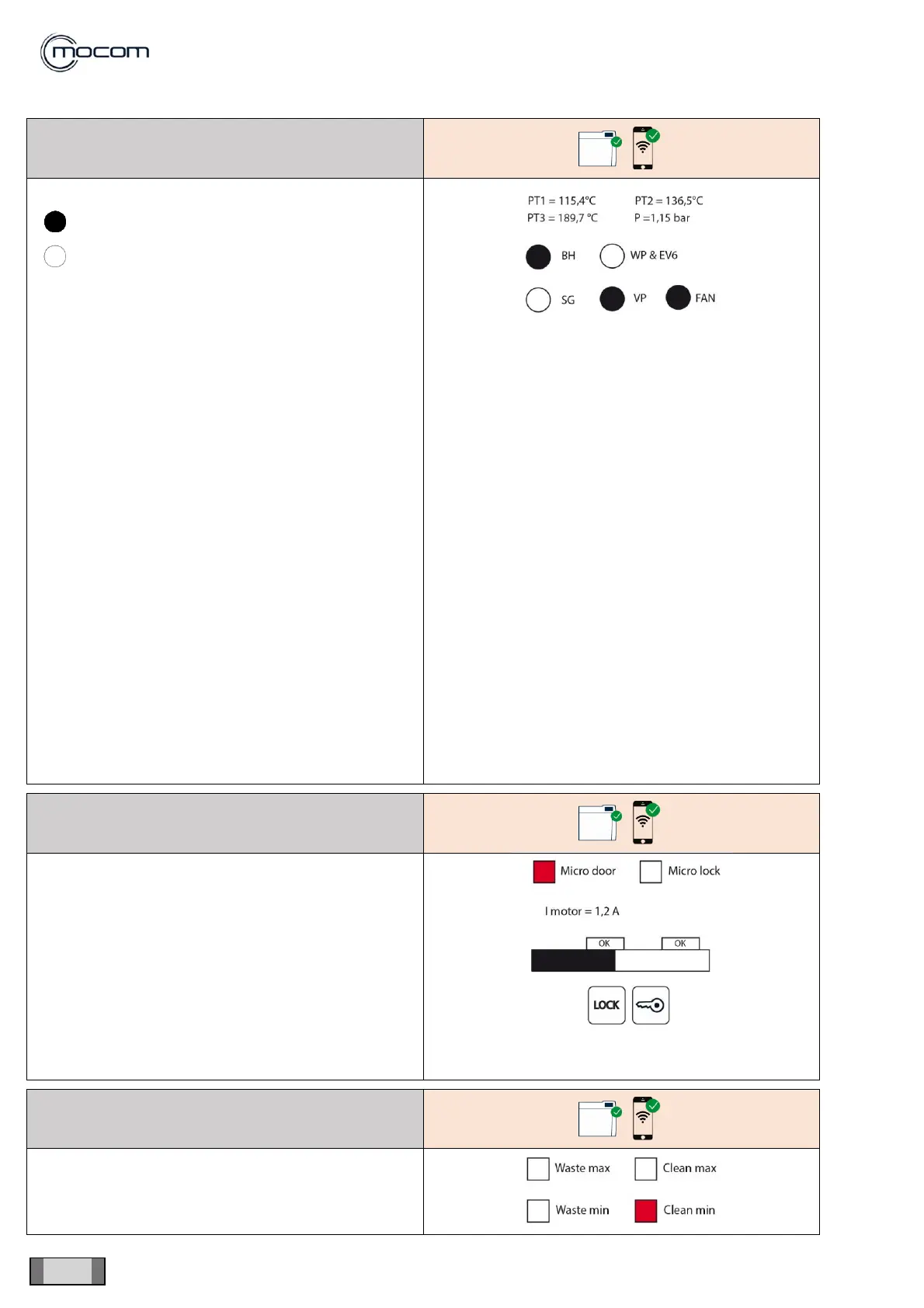

The following components are displayed with
Active
Disabled
status:
- BH – chamber tube bundle heating element
- SG – generator heating element
- VP – vacuum pump
- WP & EV6 – water injection pump, solenoid valve
EV6
- FAN – it indicates the On/Off status of heat exchanger
fans.
The following values are also displayed:
- PT1 – chamber temperature
- PT2 – steam generator temperature
- PT3 – chamber tube bundle heating element
temperature
- P – chamber pressure
The status of each component that can be
activated/deactivated is detected.
The BH-tube bundle heating element activation is
indicated by the increase in the PT3-tube bundle
heating element value.
The SG-generator heating element activation is
indicated by the increase in the PT2-steam generator
temperature value.
A safety timeout is provided for the BH and SG
functions, so that the relevant component is turned off
after 120”.
SQ7 - DOOR
From the DOOR section, you can detect:
- the door status (closed / locked) μSw Door
- the status of the closing system microswitches
μSw Lock
- the values of the current absorbed by the motor
during the different door closing phases I motor
The door can be manually unlocked, locked and fully
opened.
During the door closing and locking phases, the
variations of the I motor parameter are displayed in the
digital bar at the bottom of the DOOR screen.
SQ8 - TANK MANAGEMENT
The operation of the level sensors located inside the
tanks can be checked in the TANKS section.
When a sensor is lifted, the relevant box lights up.
