Sterilizers SUPREME - FUTURA - CLASSIC (17-22-28)
- TECHNICAL MANUAL

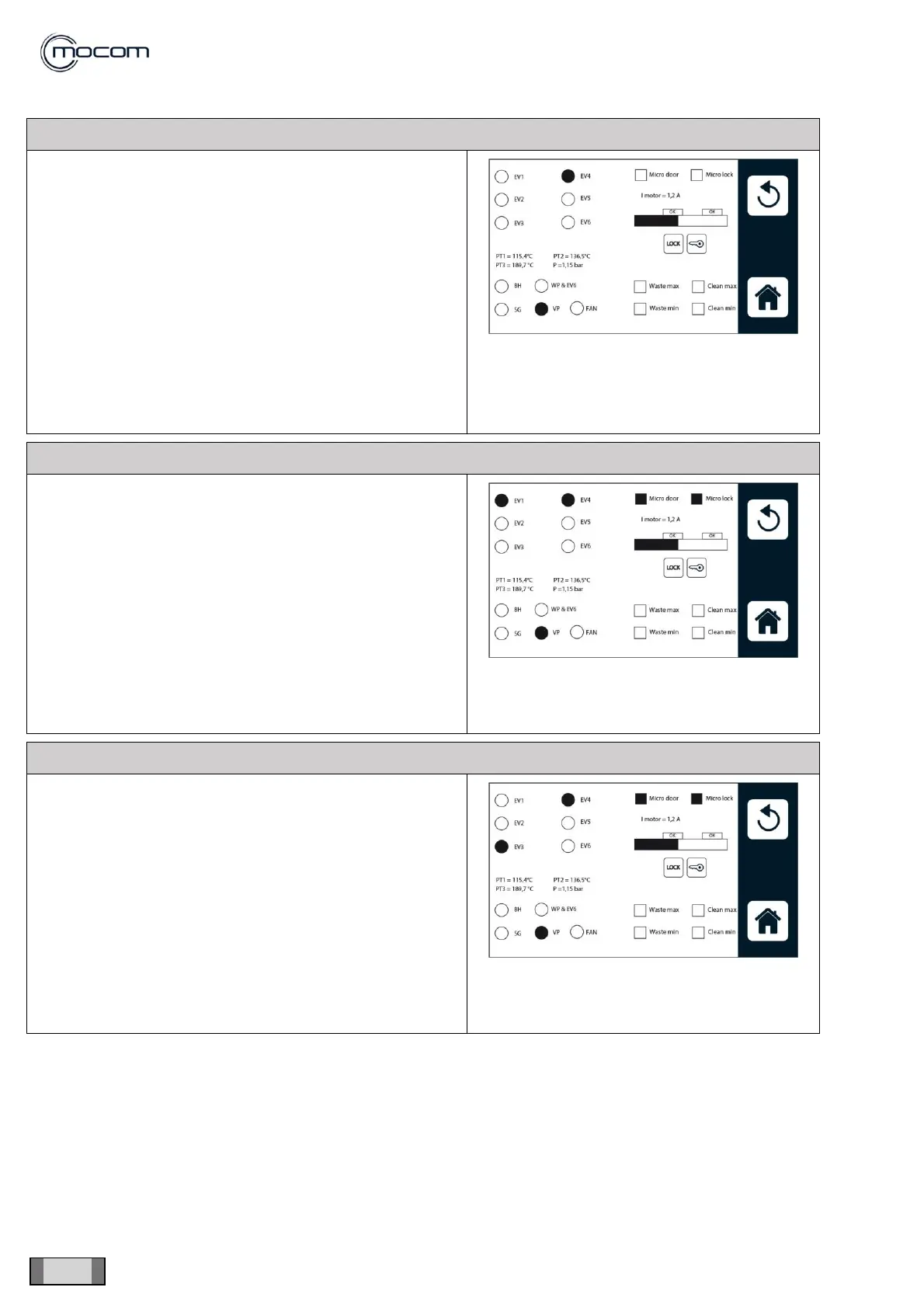

SQ11 – CHECK EV1/EV3 FOR PROPER CLOSING
- close the door
- from SOLENOID VALVES menu:
- close EV1
- open EV4
- note the reading “P” of chamber pressure
- activate VP – vacuum pump
If EV1/EV3 are closing properly, chamber pressure value “P”
will not change.
With the door open, proper closing of EV1/EV3 is confirmed
when there is no suction from:
- steam outlet, top/rear section of chamber for EV1
- chamber filter coupling for EV3
- de-activate the components after completing the test
SQ12 – CHECK FOR EV1 OPENING
- close the door
- open EV1 and EV4
- close EV3
- note the reading “P” of chamber pressure
- activate VP – vacuum pump
If EV1 is open, chamber pressure value “P” will decrease.
With the door open, EV1 opening can be confirmed by
checking the effect of suction from the steam outlet, top/rear
section of chamber.
- de-activate the components after completing the test
SQ13 – CHECK FOR EV3 OPENING
- close the door
- close EV1
- open EV3 and EV4
- note the reading “P” of chamber pressure
- activate VP – vacuum pump
If EV3 is open, chamber pressure value “P” will decrease.
With the door open, EV3 opening can be confirmed by
checking the effect of suction from the chamber filter
coupling.
- de-activate the components after completing the test
