SERVICE MENU
43

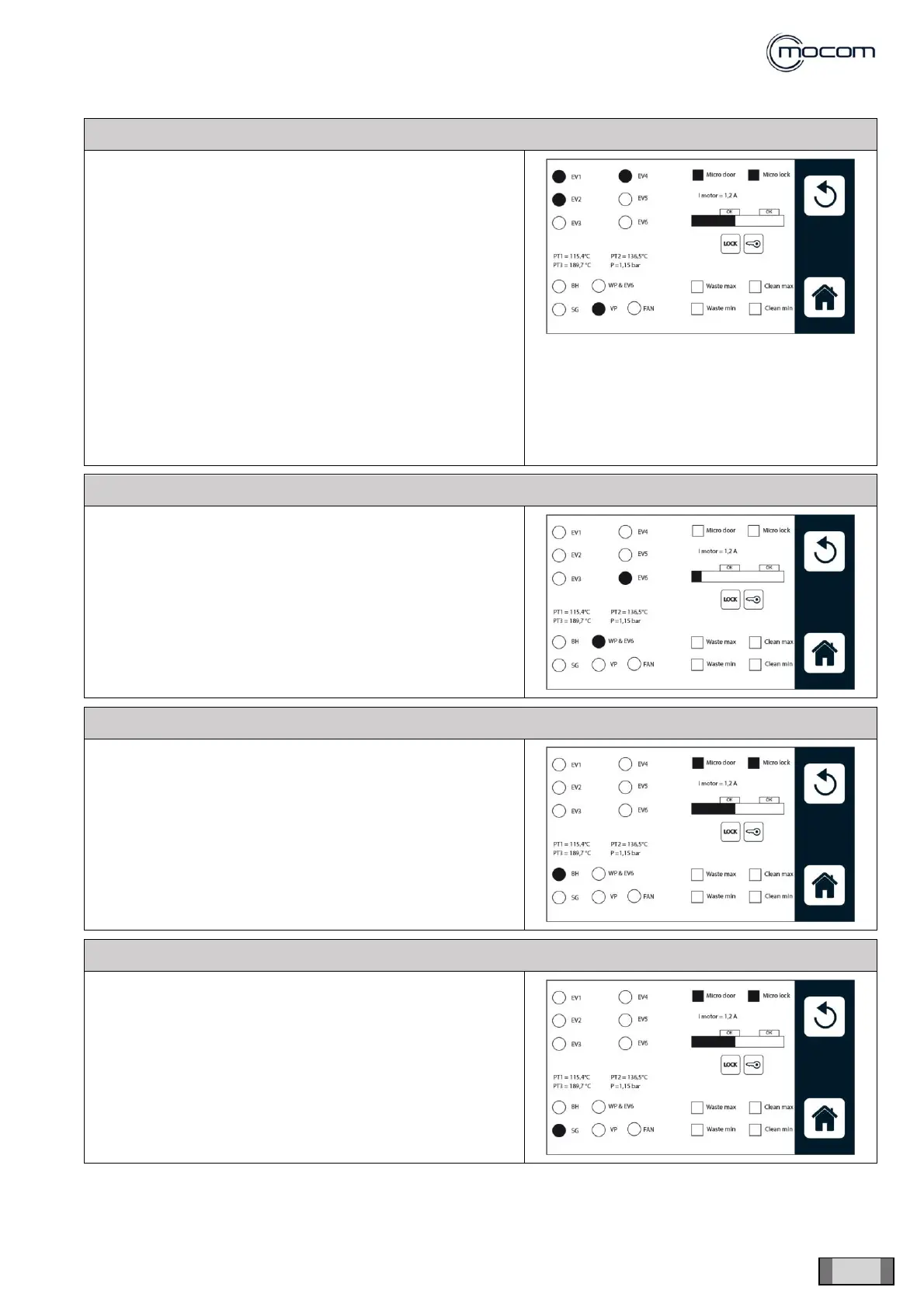

SQ14 – CHECK FOR EV2 OPENING
- close the autoclave door
- open EV1, EV2 and EV4
- note the reading “P” of chamber pressure
- activate VP – vacuum pump
With EV2 open, chamber pressure value “P” will decrease
and stabilize at around 0.035/0.040 bar, and will not drop
further.
Test example:
- chamber pressure reading 0.000 bar
- activate VP – vacuum pump
- chamber pressure reading of – 0.038 bar confirms that EV2
opened correctly
- de-activate the components after completing the test
SQ15 – CHECK FOR WATER INJECTION PUMP/EV6 ACTIVATION
- open the door
- activate WP & injection pump/EV6
- check that water is supplied to chamber properly
- perform test only if PT2 - steam generator temperature is
lower than 70°C
- de-activate the components after completing the test
SQ16 - CHECK FOR TUBE BUNDLE HEATING ELEMENT ACTIVATION
- activate “BH - chamber tube bundle heating element”
Proper activation is indicated by parameter PT3 – chamber
tube bundle heating element temperature increasing.
SQ17 - CHECK FOR GENERATOR HEATING ELEMENT ACTIVATION
- activate “SG - generator heating element
Proper activation is indicated by parameter PT2 – steam
generator heating element temperature increasing.
