Sterilizers SUPREME - FUTURA - CLASSIC (17-22-28)
- TECHNICAL MANUAL

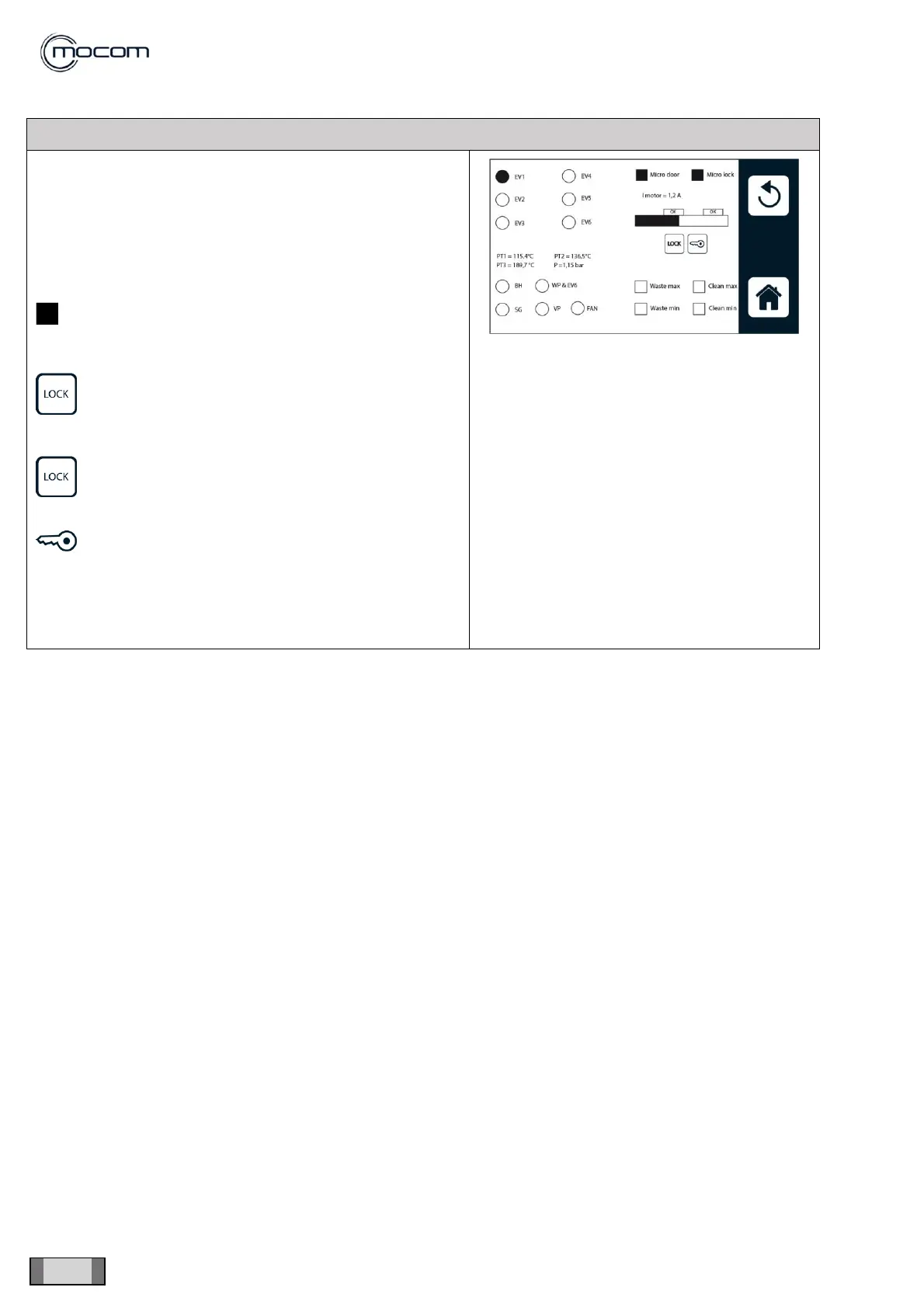

SQ18 - CHECK FOR DOOR MICROSWITCH ACTIVATION
- manually press the actuator pin of the door manual closing
microswitch
- detect the activation of μSw door indicator
- close the door and detect the activation of μSw door
indicator and of μSw lock indicator
For both microswitches, the indication shows:
microswitch closed/enabling signal active
After closing, the I motor indicator should read 1.4/1.8 A.
Activate the door lock with the command indicated
on the left.
After locking, the I motor indicator should read
3.4/3.8 A.
The door can be unlocked with the command
indicated on the left, moving it to the closing
position and keeping the 2 microswitches active.
With the command indicated on the left it is
possible to open the door unlocking the 2
microswitches.
With the door open, μSw door and μSw lock must be
disabled, with I motor indicator = 0.5A / 0.7A.
