12. Walk to the back of the instrument. Use the provided 4.0mm hex key to tighten screw
#1 in the upper-right corner on the back of the instrument until the touchscreen housing
lowers and is locked in place. Do not over tighten the screw.

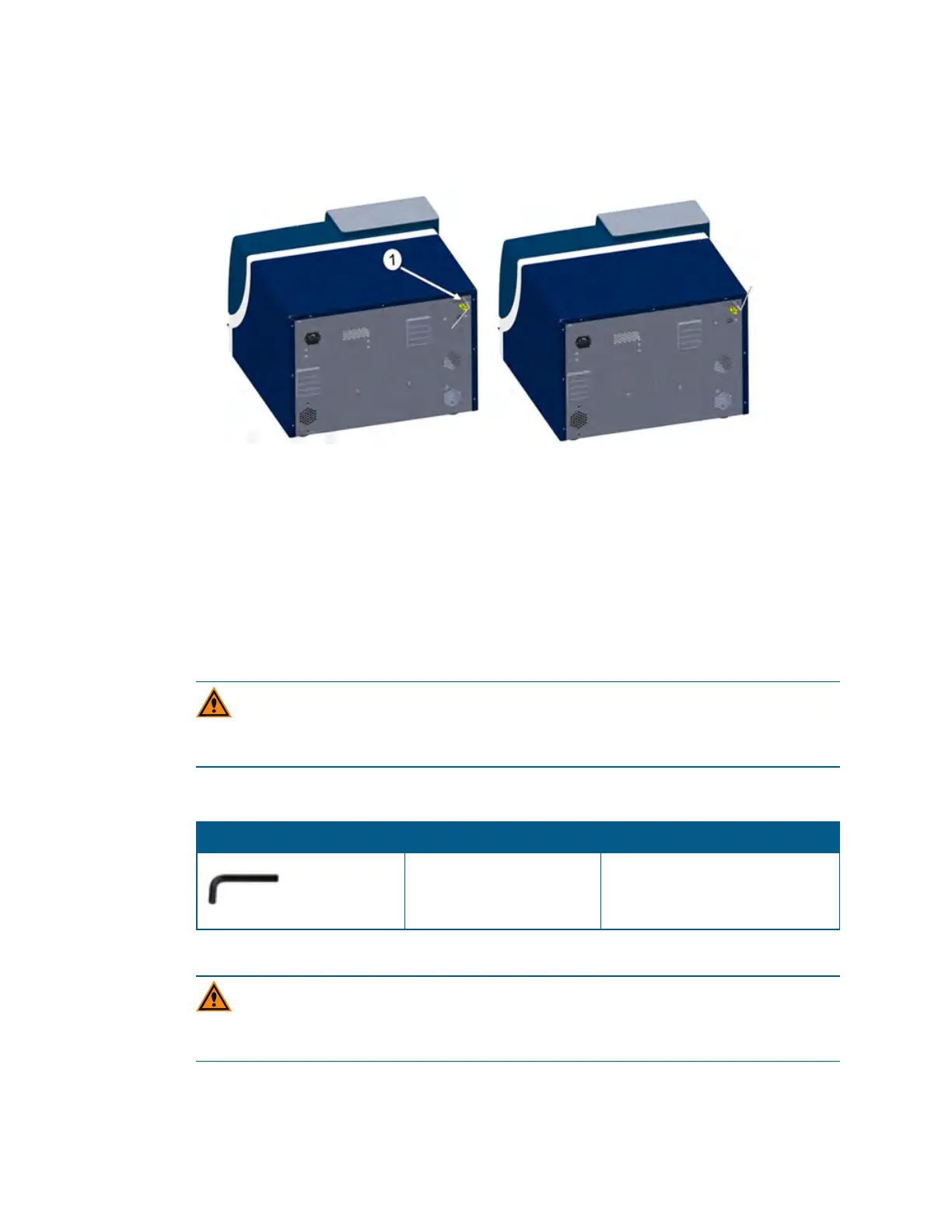

Figure 6-13: Lock touchscreen housing
For steps to pack the instrument in its original container, see Pack the Instrument on page
121.
Install Transport Lock Manually
If you cannot use the Maintenance page Lock Instrument for Shipment button and you need
to move or ship the instrument, you must do the following to secure the microplate drawer
and to move the transport slide into position to accept the transport lock. The transport lock
protects the instrument from damage during a move or shipment.
CAUTION! Do not touch or loosen screws or parts other than those designated in the
instructions. Changes to other screws or parts can cause misalignment and possibly
void the warranty.
This procedure requires the following tool included in the accessories tool box:
Illustration Part Number Description
YW 000 044 Hex key, 4.0mm
Table 6-4: Required Tool
To install the transport lock on the transport slide:
CAUTION! These steps should only be done when you could not touch the Lock
Instrument For Shipment button on the Maintenance page Support tab before you
powered the instrument off. See Before You Move the Instrument on page 106.
