Molecular Devices SpectraMax iD3 User Manual

Chapter 2: Unpack and Setup the Instrument
5054747 B 41

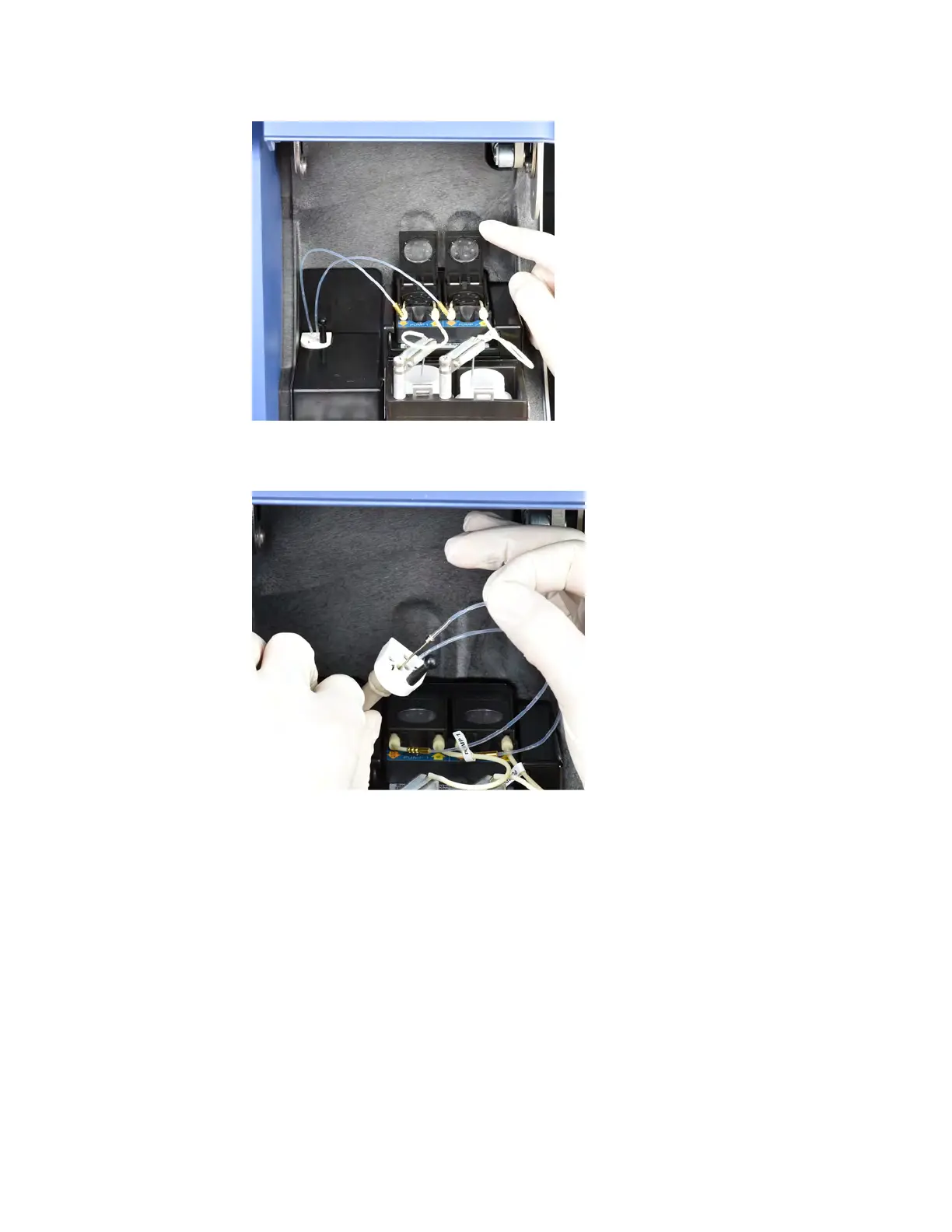

Figure 2-27: Install tubes
4. Slide the tip into the nozzle, the slots are labeled 1 and 2 for injector 1 and injector 2.
Figure 2-28: Insert tips in nozzle
5. Use the black pin to move the nozzle back to the rear of the injector space. Align the
nozzle with the opening and press straight down until you feel it snap into place.
