SpectraMax iD3 Multi-Mode Microplate Reader User Guide
24 5054747 B

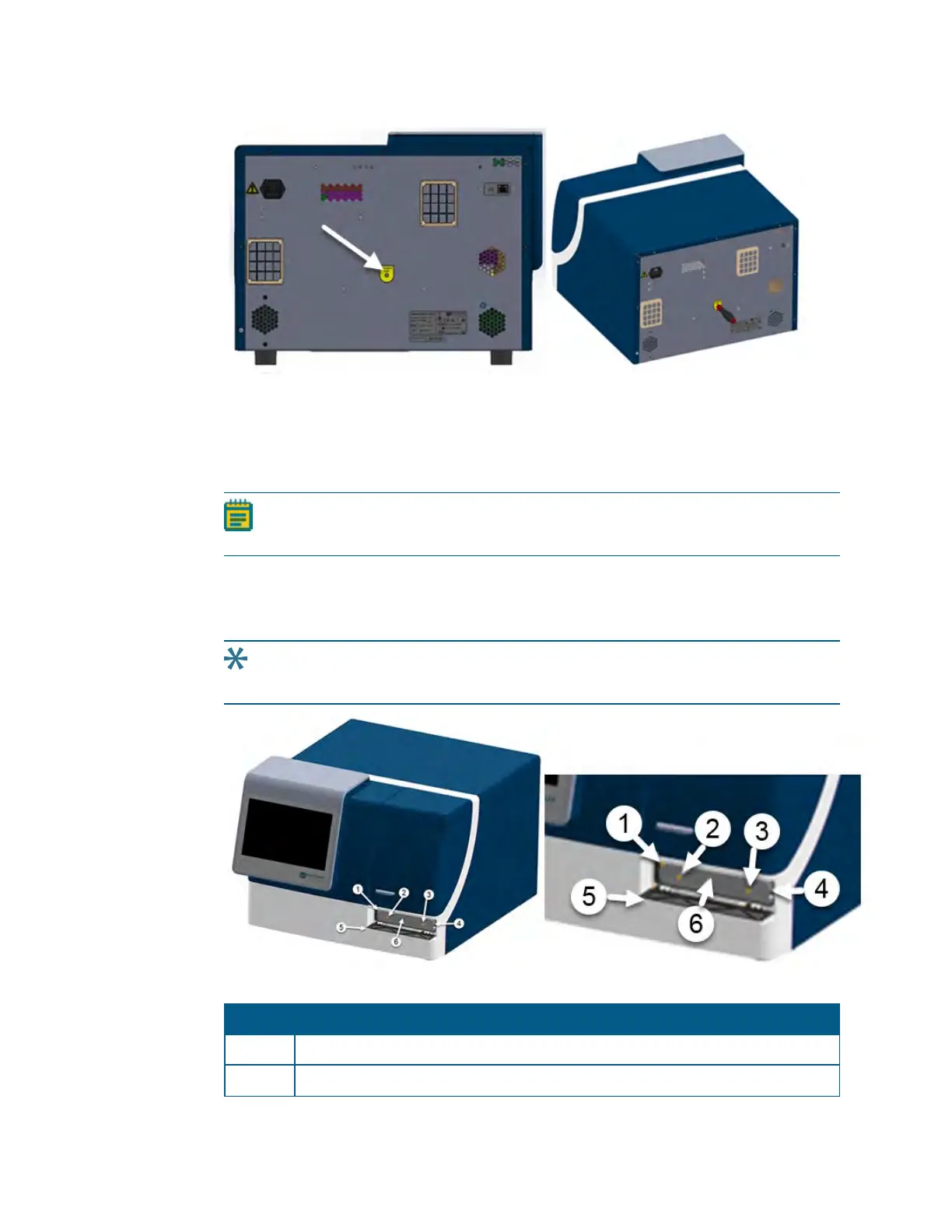

Figure 2-4: Transport lock opening
2. On the front of the instrument, gently pull the yellow tab protruding from the microplate
chamber door to open the door. You must hold the microplate drawer door open while
you remove the transport lock.
Note: Be careful not to tear the yellow tab. It must remain attached to the
transport lock to make it easier to open the microplate chamber door.
3. Use the provided 2.0mm hex key to loosen screw #1 in the upper-left corner of the
transport lock (6) until the lock disconnects from the instrument frame. The screw has a
retaining washer that prevents it from being removed from the lock.
Tip: After you loosen screw #1, pull the microplate drawer slightly out of the
instrument to hold the chamber door open.
Item Description
1 Screw #1 fastens the lock to the internal frame of the instrument
2 Screw #2 fastens the lock to the microplate drawer
Figure 2-5: Microplate drawer transport lock
