Chapter 2: Unpack and Setup the Instrument
5054747 B 39
Injector Tubing
Each injector has an injector tube. The tubing line connects to an injector tip on one end and
a snorkel on the other end. From the tip, the tube passes around the injector pump to the
snorkel. The tubing around the pump is held in position by two rubber bumpers and a
stabilizer flap.
The tips slide into the nozzle. The nozzle fits into the injector arm for maintenance, wash and
prime and fits into an opening located in the back left of the injector space within the
instrument for injector protocols.
The snorkels are held in the bottles by snorkel clamps.

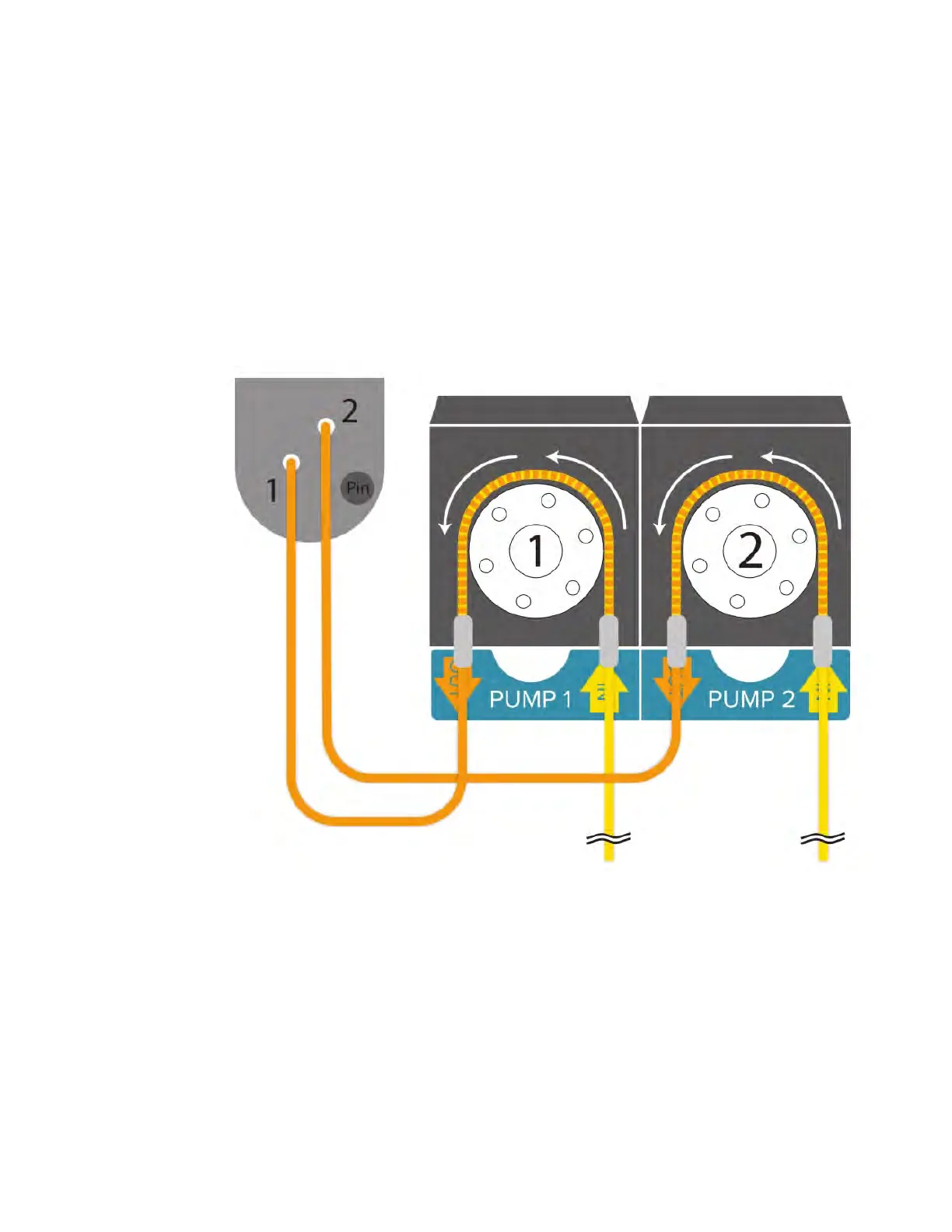

Figure 2-24: Injector tubing
To install or replace the injector tubing:
1. Move the injector arm away from the instrument and insert the nozzle into the injector
arm.
