IP67 IO-Link Modules for EtherNet/IP
Signal
The HarshIO module supports up to 8 I/O ports with each:
• 1x Channel with IO-Link Master communication on Pin 4
• 1x Channel with user configurable digital I/O on Pin 2
The IO-Link Master communication channels can behave as a standard digital Input or Output or connect
any IO-Link devices such as:
• Brad™ IO-Link digital hub – 16 inputs (TEDIO-8D0P-808)
• Brad™ IO-Link digital hub – 12 inputs + 4 outputs (TEDIO-8B4P-808)
• Any other IO-Link devices on the market
The configurable digital output on Pin 2 can deliver up to 2A for actuators with high power requirements. This
output can also be used as additional power supply for the outputs of the Brad IO-Link digital hub 12 inputs + 4
outputs (TEDIO-8B4P-808).

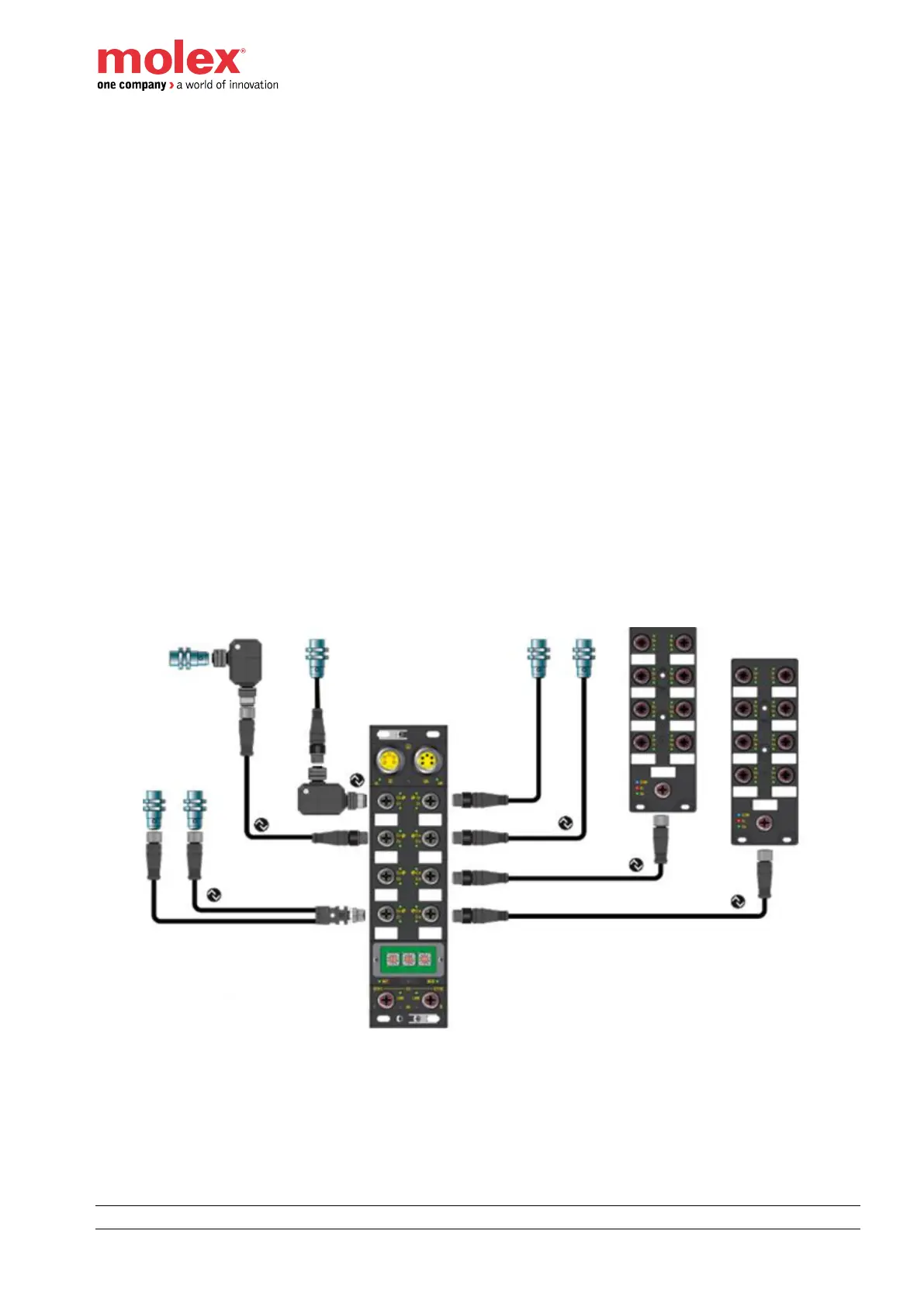

HarshIO module is a high modular system. In combination with the Brad IO-Link digital hubs, the users can
interconnect up to:
• 136 digital Inputs max (using Brad IO-Link digital hubs - 16 input)
• 40 digital outputs max + 96 digital Inputs (Brad IO-Link digital hubs - 12 inputs + 4 outputs)
This modularity allows to optimize the use of each I/O channels of the module and to reduce significantly the
installation cost.
