Functional earth connections
The functional earth (FE0) shall always be connected to ground to ensure proper operation of the module.
The two functional earth (FE1 & FE2) are not connected to the functional earth (FE0).
Note!
3 screw terminals functional earth connections (FE0 / FE1 / FE2) are galvanically
isolated.

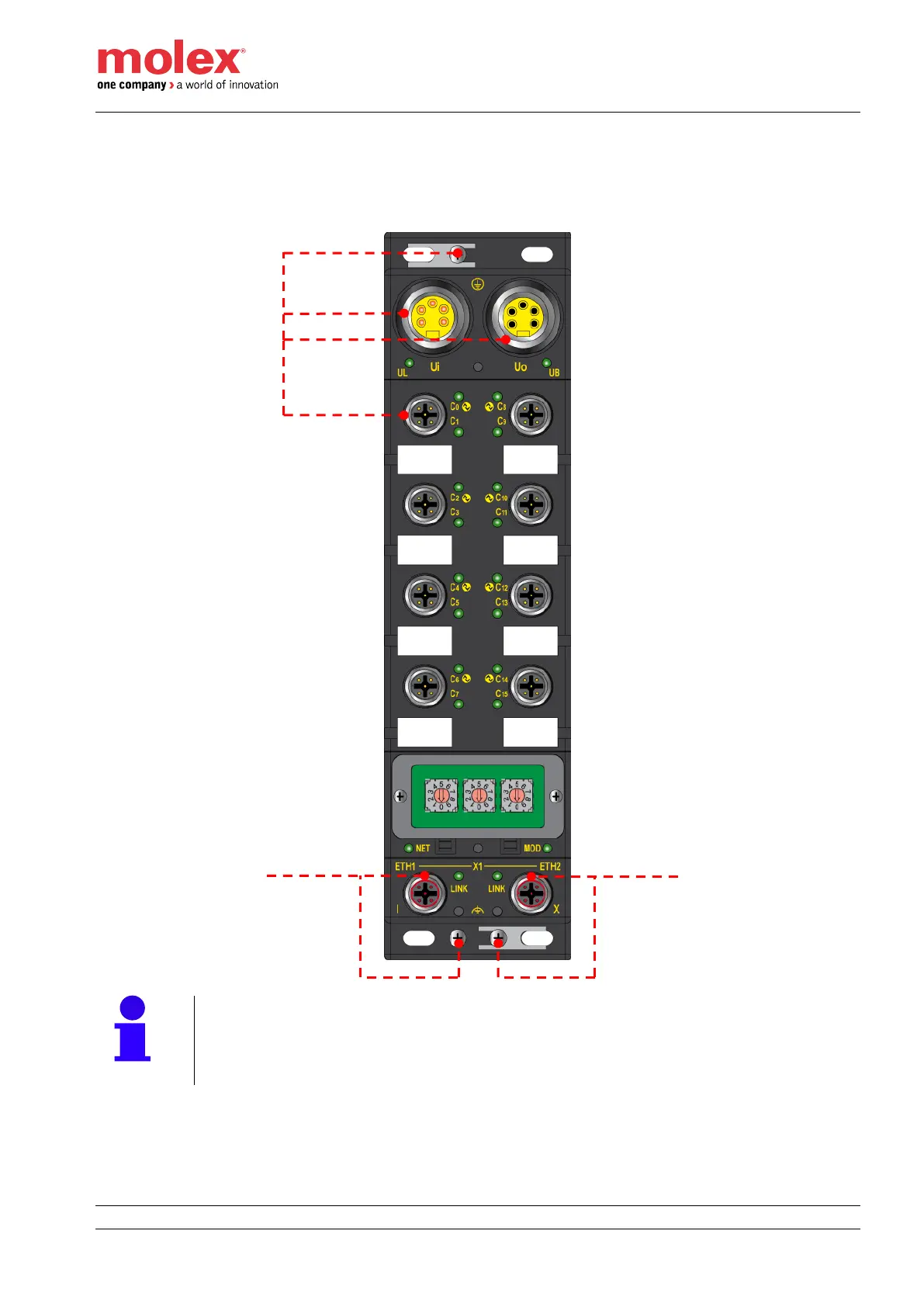

Functional Earth N°0 (FE0)
Functional Earth N°1 (FE1)
Functional Earth N°2 (FE2)
