IP67 IO-Link Modules for EtherNet/IP

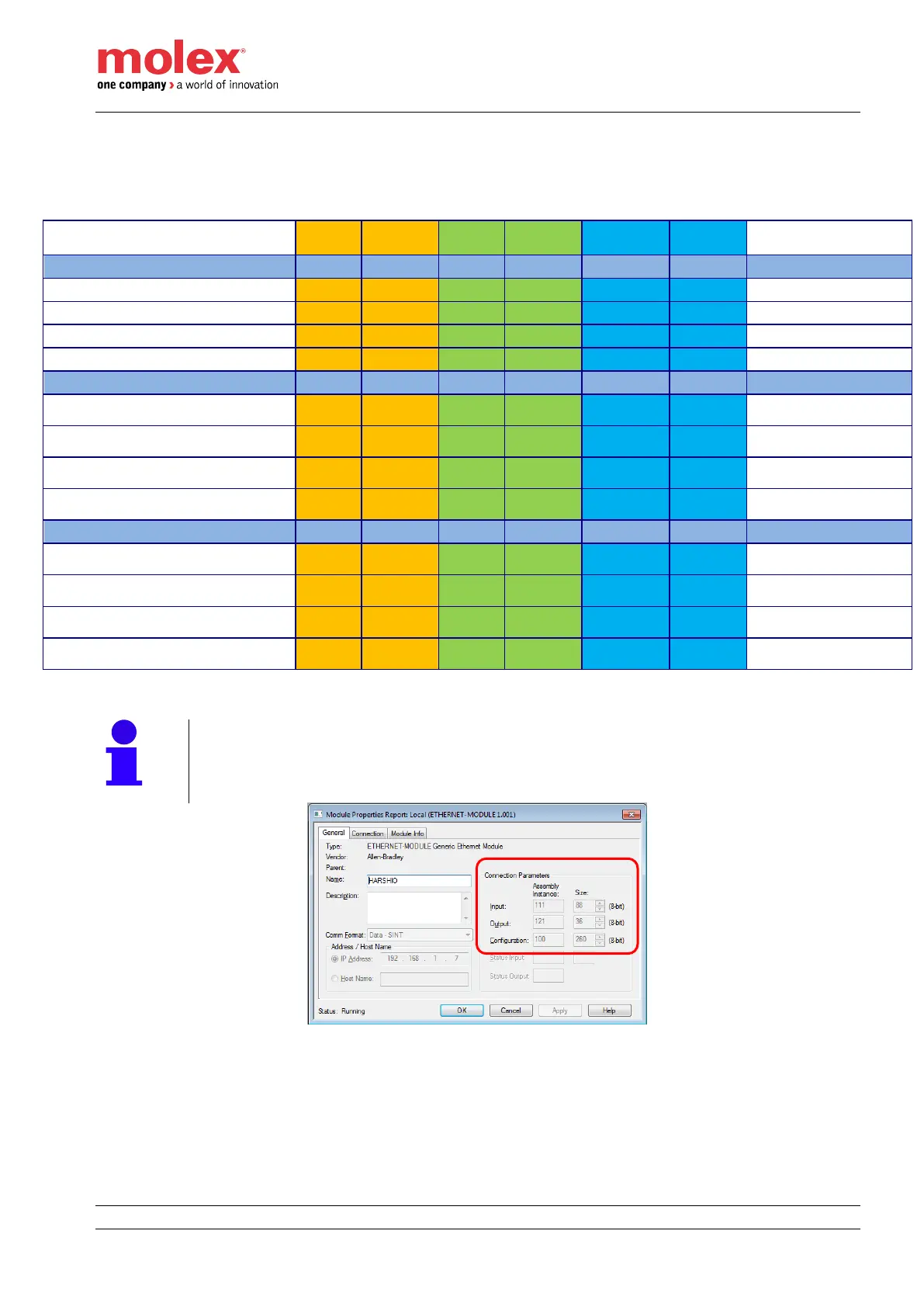

EtherNet/IP Assembly instances
The I/O process data are available through the EtherNet/IP assembly instances. Below the list according to the
connection type.
Input
Assembly
Data length
(bytes)
Output
Assembly
Data length
(bytes)
Configuration
Assembly
Data length
(bytes)
EDS entry
Exclusive Owner
Digital I/O & Status
110
8
121
36
100
260
None
Digital I/O & Status + IO-link with 4 bytes I/O
111
88
121
36
100
260
EO_PD_4 bytes
Digital I/O & Status + IO-link with 8 bytes I/O
112
120
122
68
100
260
EO_PD_8 bytes
Digital I/O & Status + IO-link with 32 bytes I/O
113
312
123
260
100
260
EO_PD_32 bytes
Input Only
Digital I/O & Status
110
8
198
0
100
260 or 0
IO_Status or
IO_Status-No Conf
Digital I/O & Status + IO-link with 4 bytes I/O
111
88
198
0
100
260 or 0
IO_PD_4 bytes or
IO_PD_4 bytes-No Conf
Digital I/O & Status + IO-link with 8 bytes I/O
112
120
198
0
100
260 or 0
IO_PD_8 bytes
IO_PD_8 bytes-No Conf
Digital I/O & Status + IO-link with 32 bytes I/O
113
312
198
0
100
260 or 0
IO_PD_32 bytes
IO_PD_32 bytes-No Conf
Listen Only
Digital I/O & Status
110
8
199
0
100
260 or 0
LO_Status
LO_Status-No Conf
Digital I/O & Status + IO-link with 4 bytes I/O
111
88
199
0
100
260 or 0
LO_PD_4 bytes
LO_PD_4 bytes-No Conf
Digital I/O & Status + IO-link with 8 bytes I/O
112
120
199
0
100
260 or 0
LO_PD_8 bytes
LO_PD_8 bytes-No Conf
Digital I/O & Status + IO-link with 32 bytes I/O
113
312
199
0
100
260 or 0
LO_PD_32 bytes
LO_PD_32 bytes-No Conf
Note!
If your EtherNet/IP scanner configuration tool does not support the management of
EDS files, you may have to configure manually the assembly numbers to access
the process data.
– Example of HarshIO assembly setting
in Rockwell Automation RSLogix 5000 software –
