Monaco LaPalma - Charcoal Filter

4 • 167
Appliances
2004 • LaPalma
Depending on usage the charcoal filter should be replaced every 6 to 12
months. Use the following procedure to remove the louvers to replace the
charcoal filter and oven light.
1. Remove power to the microwave.
2. Remove the screws securing the louver.
3. Insert a flat edge screwdriver over each tab pressing downward and
moving the louver away from the microwave.
4. Remove the louver from the face of the microwave.
5. Remove and replace the charcoal filter ensuring the filter is positioned
on the supporting tabs.
6. Replace louver and mounting screws.
Oven Light:
1. Remove the louver as indicated under the charcoal filter.
2. Slide the metal light cover forward and lift upwards.
3. Remove the light bulb and replace only with an equivalent watt bulb.
DO NOT EXCEED 30 WATTS.
4. Replace light cover, louver and mounting screws.
Hood Light:
1. Remove power to the microwave.
2. Remove the screw securing the light cover.
3. Remove the light bulb and replace only with an equivalent watt bulb.
DO NOT EXCEED 30 WATTS
4. Close the cover and re-secure with screw from step two.

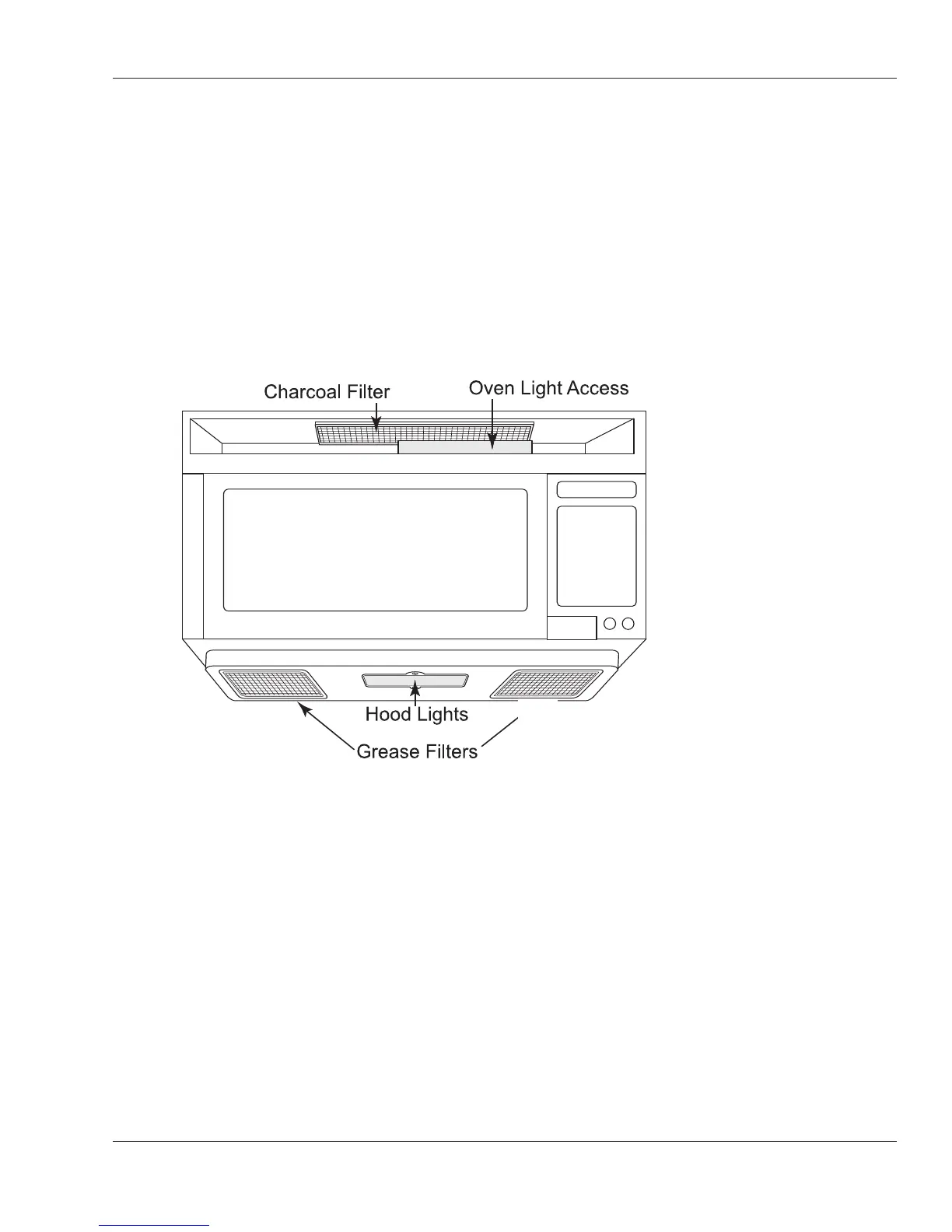

070183
Charcoal Filter
