Monaco LaPalma - FANS

5 • 218
2004 • LaPalma
Equipment

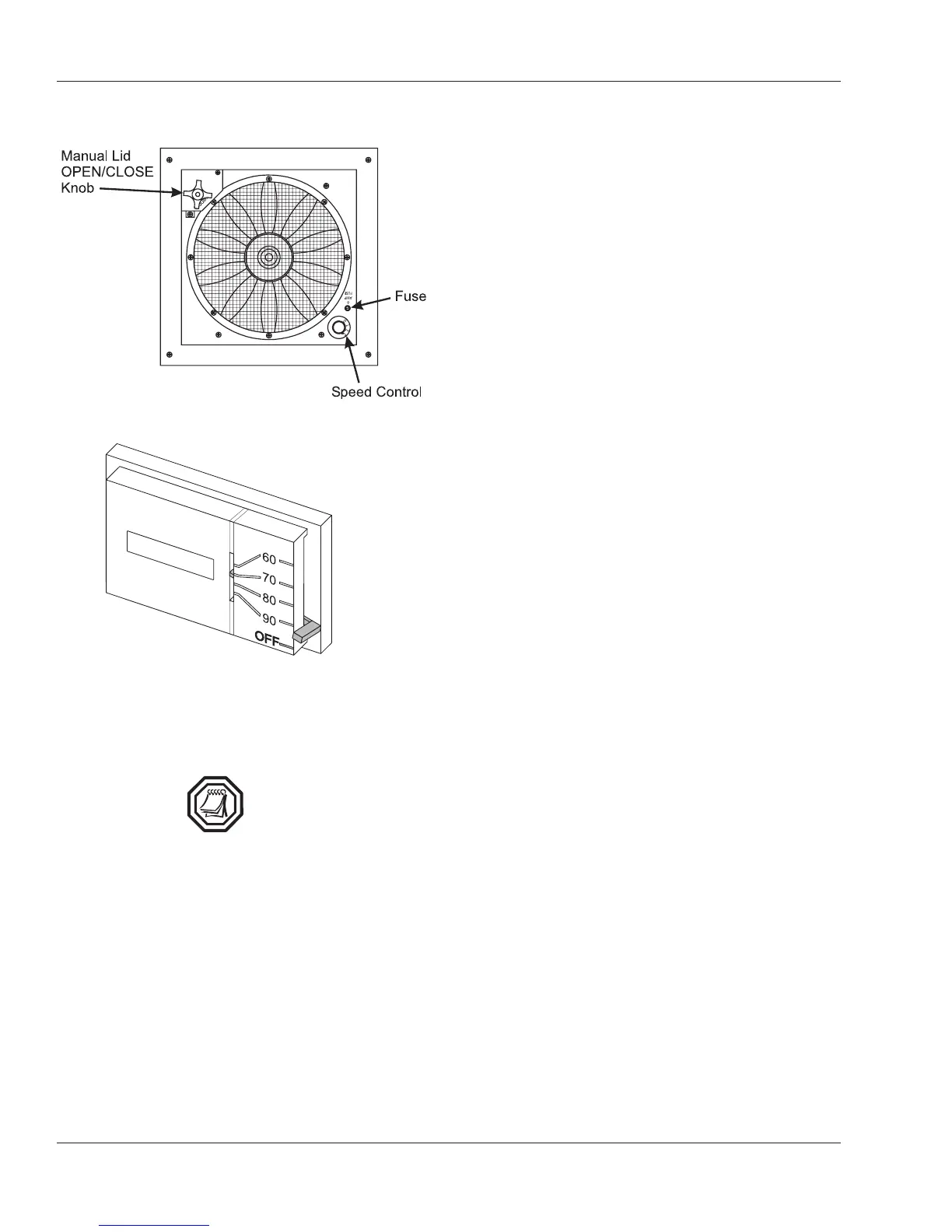

The exhaust fan is a three-speed controlled fan
with a zero or off position on the fan. The exhaust
fan requires the presence of 12 Volt DC to operate.
The fan will extract air from the motorhome. There
are two ceiling vent fans. The knurled knob
manually opens and closes the dome cover. The
rotary knob selects the operating speed of the fan.
When the dome cover opens approximately two
inches, the fan motor begins to operate.
To Operate the Fan:
• The battery cut-off switch needs to be set ON.
• The fan blades activates once the dome opens
past approximately two inches.
• The dome manually opens and closes using the
knurled knob.
• If applicable, set wall thermostat at desired
setting.
• Select the desired fan speed on the speed control
dial:
Zero = OFF
One = LOW
Two = MEDIUM
Three = HIGH
NOTE: If the speed switch is in the "0" position the fan operates
only as a vent.
• To keep condensation from accumulating open the vent fan lids
slightly to help the air circulate. Condensation occurs naturally
from fluctuations in interior and exterior temperatures, humidity
and dew point changes, steam from cooking, or boiling large
amounts of water on the cooktop. Shower usage also produces
condensation.
• If the fan fails to operate, check for either a blown fuse in the
domestic fuse panel or the 6-amp fuse on the fan.
• To clean the screen, remove the eight screws holding it in place.
Wash the screen using a non-abrasive soap and water. Re-install
the screen and tighten the screws.
FANS
Exhaust Fan
030926
030791c
