Monaco LaPalma - Workhorse Chassis

8 • 314
2004 • LaPalma
Electrical Systems
Name
Circuits Protected
HORN
Horn Relay
CTSY
Dome & Courtesy Lamps (Body Builder)
INST - IGN
DRL Relay, DRL Control Module,
Cluster, Audio Alarm, Check Tire
AUX PWR
Body Builder
PK LPS
Headlamp Switch (Park, Marker and Tail
Lamps)
TURN - B/U
Turn Signal Switch, Park/Neutral
Position & B/U Lamps
JACKS ALARM
Jacks Alarm
CIG LTR
Cigarette Lighter (Body Builder)
ILLUM
Instrument Panel Cluster, Audio Alarm,
Body Builder Feed
RADIO -ACC
Body Builder Radio
MKR LPS
License Lamps, Body Builder Marker
Lamps
RADIO - BAT
Body Builder Radio
WIPER
Body Builder Wipers
FRT PARK
Front Park Lamps
STEP ALARM
Step Alarm
PWR ACCY #1
Body Builder
PWR ACCY #2
Body Builder
INST - BAT
Cluster - Check Tire
INST - ACC
Cluster
THROT - ADJ
Throttle Adjust
WORKHORSE FUSES & CIRCUIT BREAKERS
Workhorse Chassis
Name
Circuits Protected
PCM/TCM - BAT
Powertrain Control Module,
Transmission Control Module
AUX FAN
Auxiliary Fan
STOP/HAZ
ABS Brake Switch, Turn Signal Switch,
Audio Alarm/Auxiliary Fan
ENG - RH
Cylinder 2,4,6,8 Injectors and Coils
ENG - LH
Cylinder 1,3,5,7 Injectors and Coils
PCM/TCM - 1
Powertrain Control Module,
Transmission Control Module
AUX FAN
Auxiliary Fan
ENG - 1
EVAP Canister Sol, Mass Air Oxygen
Sensors
ALT/START
Alternator, Park/Neutral Position & B/U
Lamps
A/C CMPR
A/C Compressor Relay
BRAKE
ABS Module, ABS Brake Switch
CRUISE
Cruise Control Switch
FUEL PMP
Fuel Pump Relay
ETM
Electronic Throttle Module
CRANK
Crank Request to PCM
LH TAIL
LH Tail Lamps
RH TAIL
RH Tail Lamps
DATA
Data Link
"B" STUD
Body Builder
"A" STUD
Body Builder
LIGHTING
I/P External Fuseblock, Headlamp
Switch, Data Link Fuse (Eng)
BATTERY
I/P External Fuseblock, Stop/Hazard
Fuse (Eng)
IGN A
Ignition Switch Starter Relay
IGN B
Ignition Switch
ABS
ABS Module
BLOWER
HVAC Blower
PWR BRK
Power Brake
HORN - PCM
Eng Fuse Block, Horn Fuse (I/P
External)

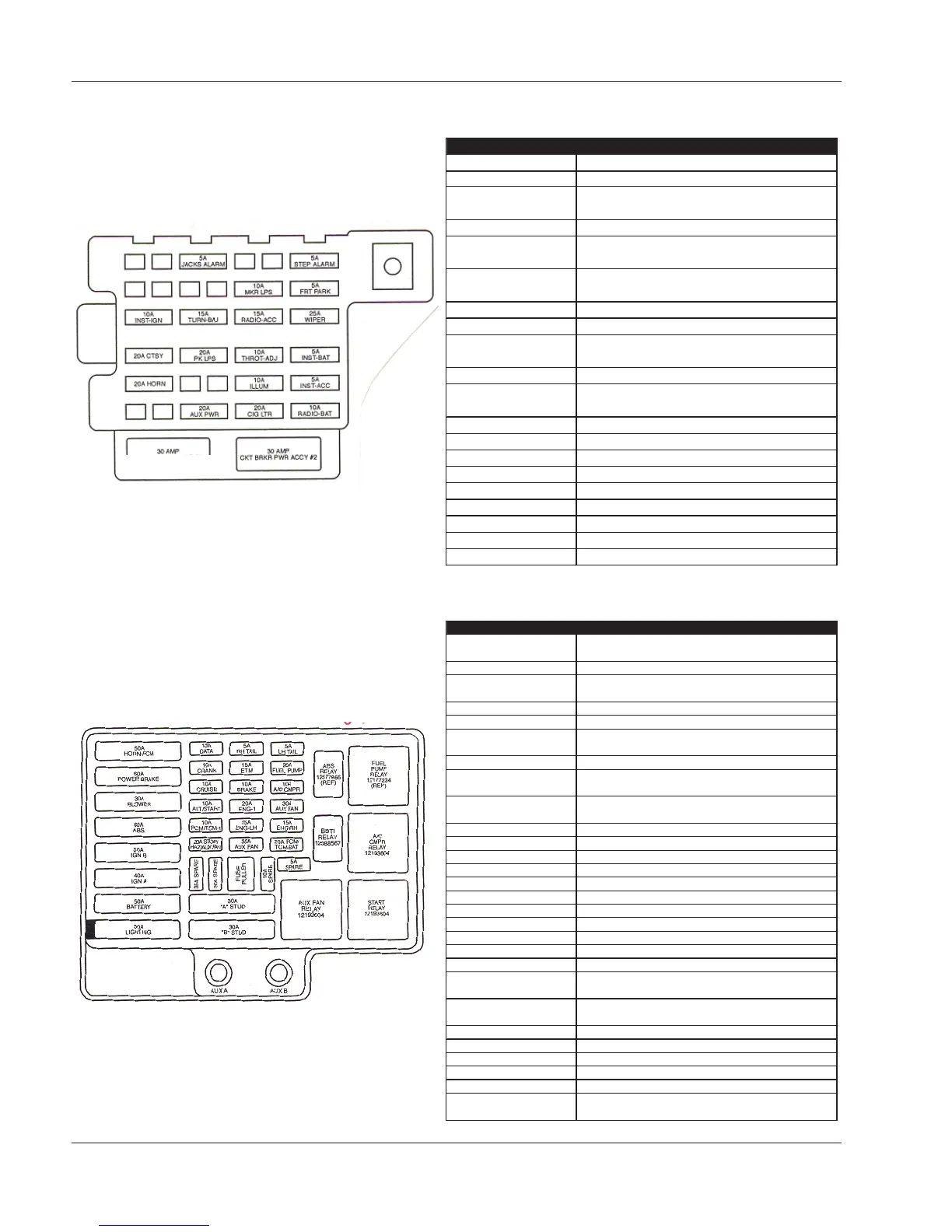

Internal Fuse Box
External Fuse Box
080454
080455
