Monaco LaPalma - Page 313

8 • 313
Electrical Systems
2004 • LaPalma
6

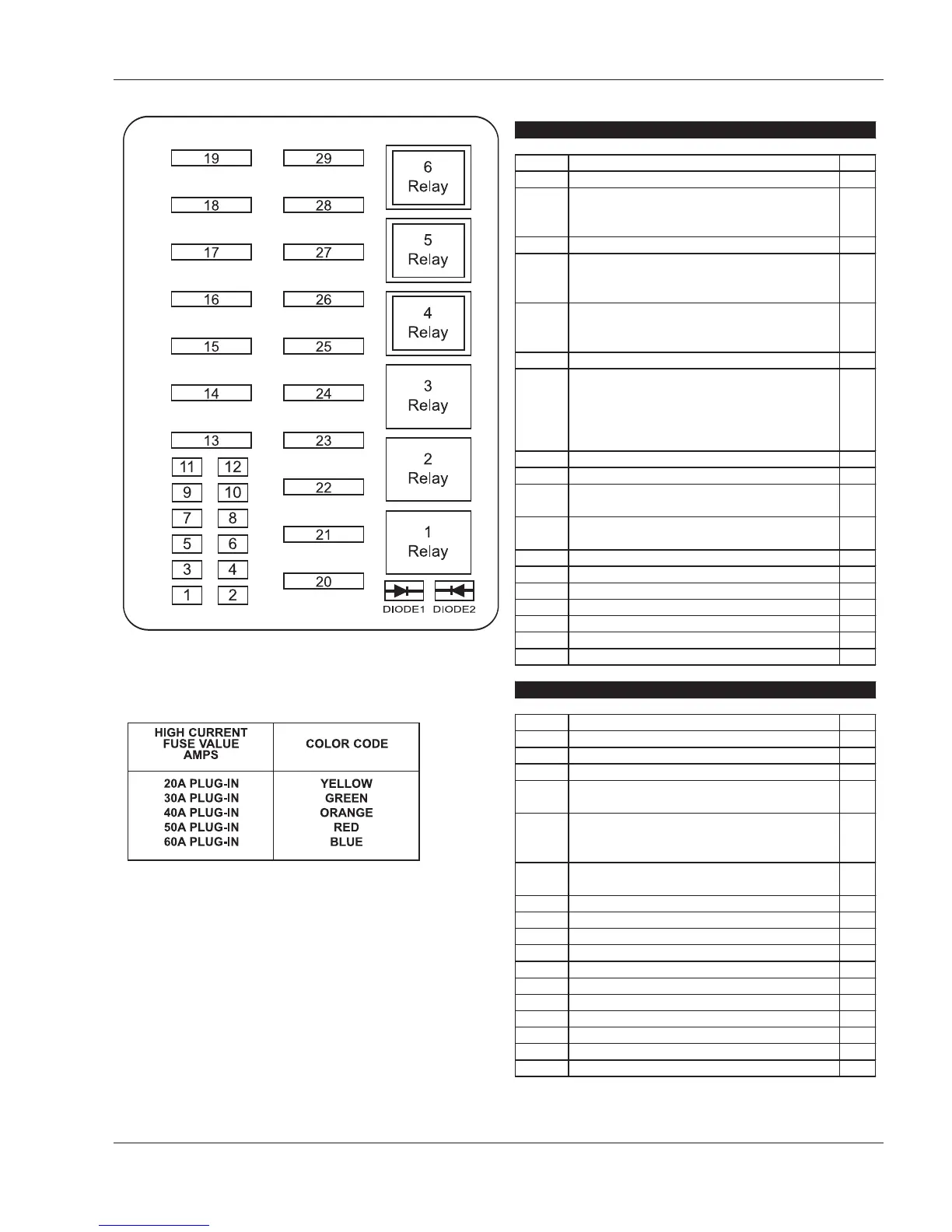

Relay
# Circuit Fuse
1 Power Brake Assist Module 5*
2 A/C System 10*
3
4R100 Transmission, Vapor Management Valve
Solenoid, Heated Exhasut Gas Oxygen
(HEGO) Sensors
20*
4
Powertrain Control Module Memory 5*
5
Powertrain Control Module Power Fuel Pump
Relay Coil, Fuel Injectors, Mass Air Flow
Sensor with IAT, A/C System Relay Coil
15*
6
Parklamp Feeds, Instument PanelFuse #41,
Warning Chime Module, Trailer Tow Running
Lamp Relay Coil, 1/P Dimmer Module
20*
7
Starter Relay Coil, BB Neutral Sense 15*
8
Stoplamp Switch (Logic): Brake Pressure
Switch, Power Brake Assist Module***, Speed
Control Module, Powertrain Control Module,
ABS Module, Brake Shift Interlock Actuator
10*
9 Alternator 5*
10 Daytime Running (DRL) Lamps 20*
11
Ignition Coils, Radio Capacitors #1 and #2,
Powertrain Control Module Relay
30*
12
Trailer Tow Running Lamps Feed, Trailer Tow
Backup Lamps Feed, IP-Backup Lamp Feed
20*
13
Trailer Tow Electrical Brake Controller Feed 30**
14 Instrument Panel Battery Feed (Fuse #9,15,21) 60**
15
Not Used
16
ABS Module 60**
17
Not Used
18 Horn Feed 20**
19 Not Used
# Circuit Fuse
20 Powertrain Control Module Relay 40**
21 Fuel Pump Motor 20**
22 Diagnostic Tool Connector, Cigar Lighter Feed 20**
23 Blower Motor Feed 40**
24
Instrument Panel Battery Feed (Fuses #4,
10,16)
40**
25
Ingnition Switch Feed (Instrument Panel Fuses
# 1, 5, 7, 11, 13, 14, 17, 19, PBD Fuses #
7,9,11)
50**
26
Ignition Switch Feed (Instrument Panel Fuses
#5, 11, 17, 26, 32, 38)
60**
27 Multifunction Switch (Headlamps) 30**
28 Not Used
29 Power Brake Assist Motor*** 60**
Relay 1 Daytime Running Lamps ON/OFF Relay
Relay 2 Fuel Pump Relay
Relay 3 Horn Relay
Relay 4 A/C System Relay
Relay 5 Blower Motor Relay
Relay 6 Powertrain Control Module Relay
Diode 1 Powertrain Control Module Diode
Diode 2 Park Brake Diode
* Mini Fuses ** Maxi Fuses *** Vehicle with Hydromax Brake Assist Only
080225b
060094
