5 • 240
2004 • LaPalma
Equipment
EXTERIOR
ENTERTAINMENT
CENTER
(OPTIONAL)
A two pin connector labeled Citizens Band Radio is located behind the
dash panel. It is taped along with the CB Antenna coax, which is routed to
the roof mounted base. The red wire is at 12 Volt DC and is fused at two
amps through the front distribution panel. The white wire is connected to the
frame.

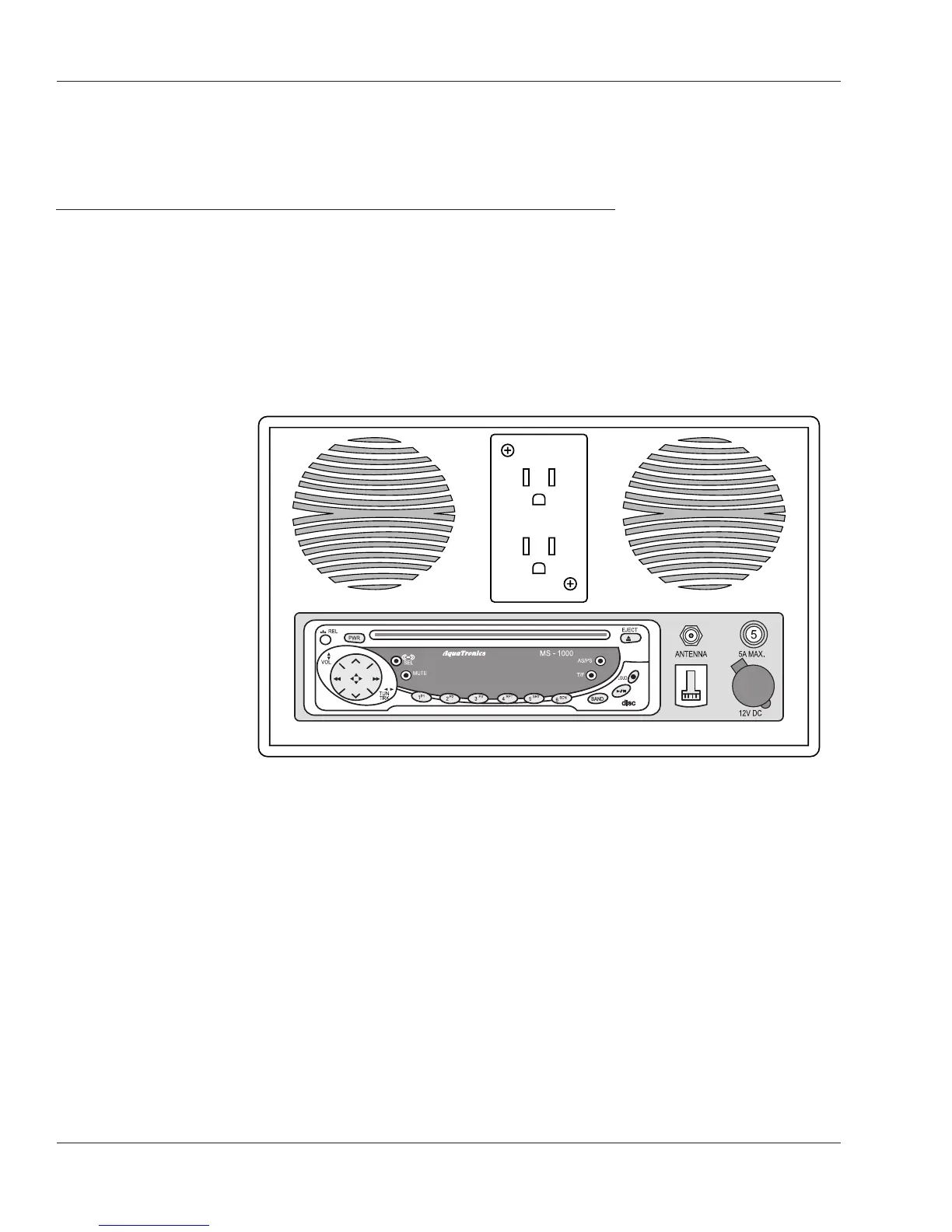

The entertainment center has a AM/FM marine stereo radio with two
speakers. The stereo has conformal coated circuit board to withstand salt air
and humidity along with UV stable detachable control panel and electronic
tuner.
Included are 12V DC, 120V AC antenna receptacles. The locking cover
should be closed and locked when the entertainment center is not in use.
Function of Features:
• ON/OFF POWER BUTTON (PWR) - Press this button to turn the unit
on or off.
• VOLUME/LEVEL CONTROL (VOL) - To increase the volume level,
press the up arrow button. To decrease the volume level, press the down
arrow button.
• SELECT BUTTON (SEL) - This button is used to select the audio
function (volume, treble, bass, balance, or fade) to be adjusted using the
Level Control. Pressing the Select button once will set the unit for
volume adjustment (“VOL” will appear on the display panel). Pressing
the button additional times will select treble (“TRE” on the display), bass
(“BAS”), balance (“BAL”), fader (“FAD”) or volume (“VOL”).
Citizens Band Radio
- Prewire (Optional)
