8 • 300
2004 • LaPalma
Electrical Systems
The 12 Volt house contains fuses (located in the bedroom cabinet) that
protect the electrical circuits. These fuses are the standard automotive type.
When a fuse is “blown,” the wire in middle of the plastic case will be burnt. A
broken, bad or “blown” fuse must be replaced with a fuse of the same
rating and type. Use of a fuse with a different rating or type will defeat the
circuit protection provided by that fuse and could result in damage to the
motorhome’s electrical system.
Fuse Assignments are as Follows:
1. Bath Lights/Vents - 15 Amp Fuse
2. Dinette/Porch/Rt. Overhead - 15 Amp Fuse
3. Bedroom/ODS Lights - 15 Amp Fuse
4. Kitchen/Left Overhead, Stove Vent (Opt Vent - 15 Amp Fuse)
5. Ceiling Lights - 15 Amp Fuse
6. Furnace - 15 Amp Fuse
7. Monitor Panel - 15 Amp Fuse
8. Slide-out - 15 Amp Fuse
9. Radio - 5 Amp Fuse
Circuit Breaker Assignments are as Follows:
Left Side Right Side
• 50 AMP MAIN • Converter, Bedroom TV, Dining
• Front Air Conditioner Room
• Rear Air Conditioner • Bathroom, Kitchen, Refrigerator,
TV, VCR
• Water Heater
• Microwave

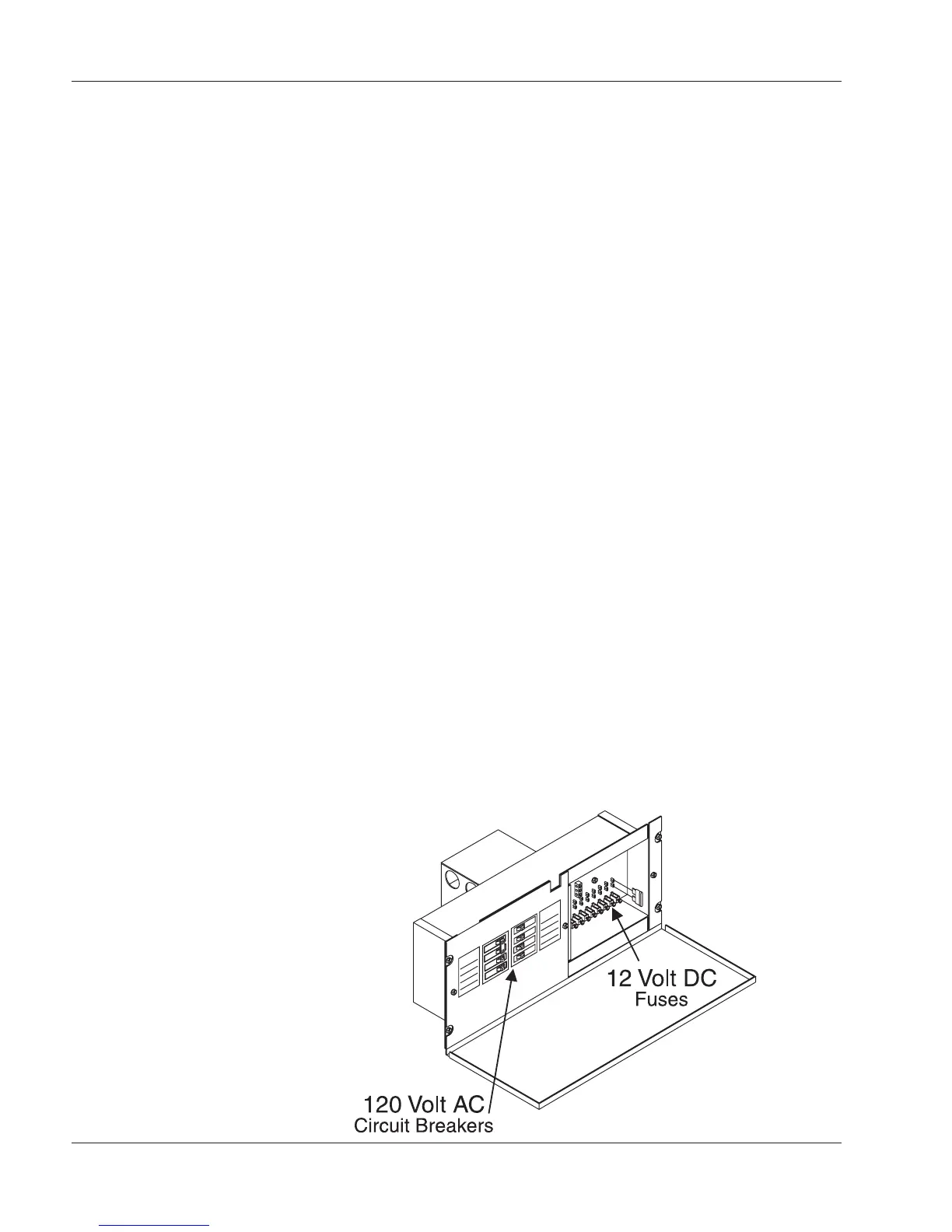

30 AMP
DISTRIBUTION
PANEL
Fuses & Circuits
060057
