6 • 248
2004 • LaPalma
Water Systems
The service center water controls are used for performing all tasks
pertaining to water usage in the motorhome. Service center is located in an
outside compartment of the motorhome.
1. Check to make sure the fresh water tank drain valve, located
on roadside in the service center, is in the closed position.
2. Connect the hose labeled for potable water to the water
source. Install the provided pressure regulator on the fill
valve. Arrow on regulator must be pointed toward valve. On
a hot day the hose may expand and burst from water pressure
within the water hose.
3. Remove white plug in the end of the pressure regulator.
4. Connect the water hose to the pressure regulator inlet.
5. The fill valve should be in the Fresh Water Fill position.
6. Turn on the water at the water source. The water should be
audible as the fresh water tank fills.

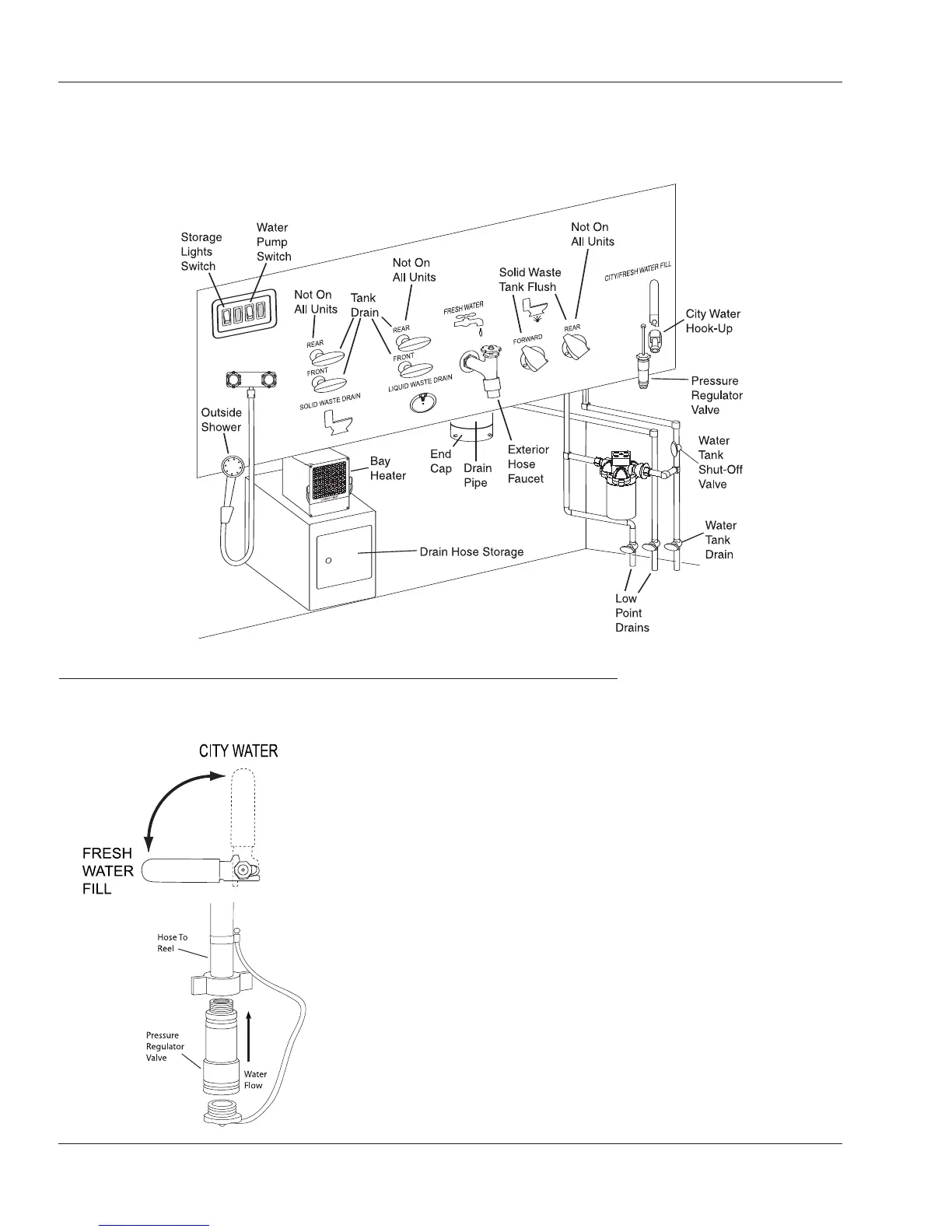

WATER TANK - FRESH FILL
SERVICE CENTER
040448d
040480e
040460h
