User Manual
10
Chapter 3 DVR INSTALLATION
3.1、Installing HDD
Caution：Please do not Install or take out hard drive when DVR is running!

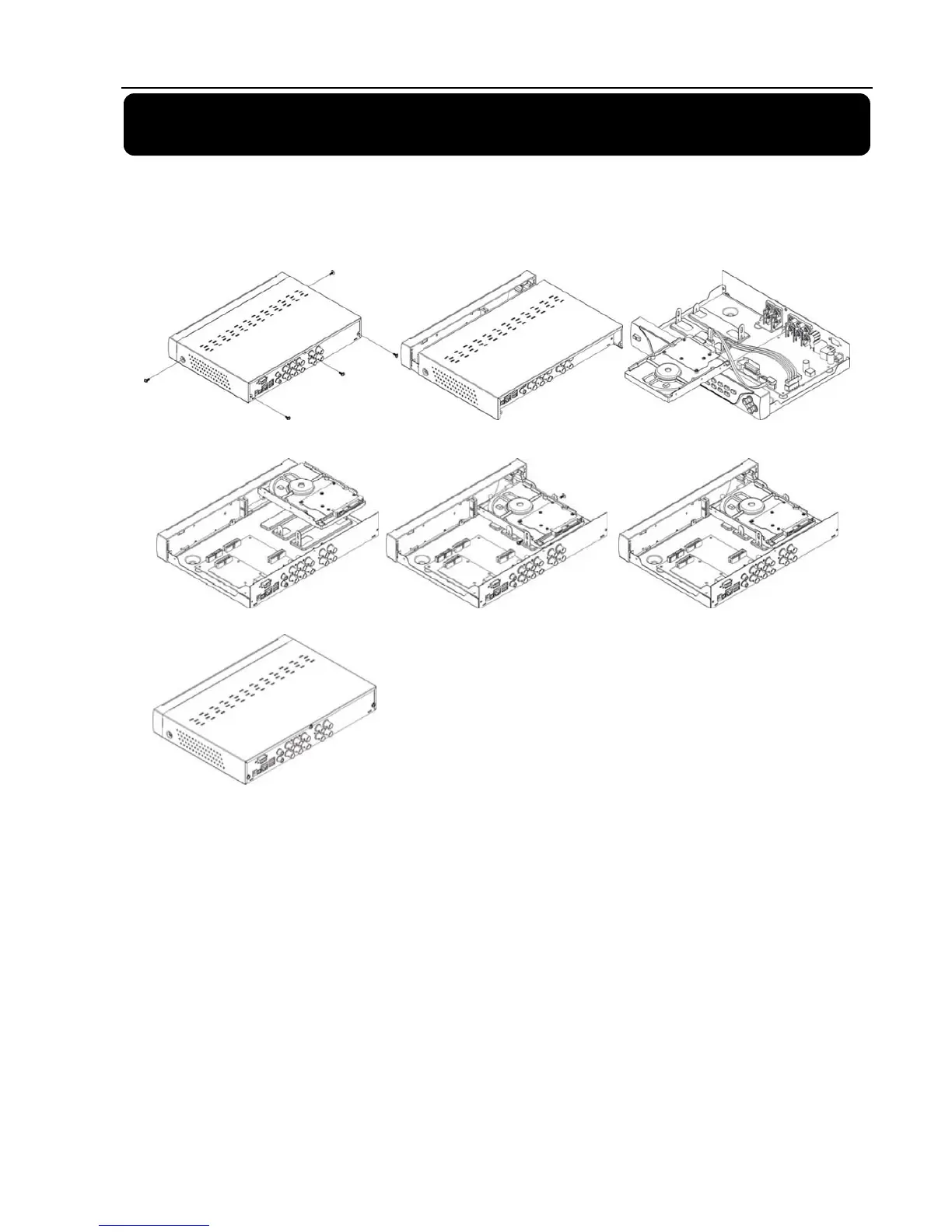

Firstly, loosen the screws of case and remove the upper cover shown as below Picture.
Then, connect data cord and power cable of HDD, put the HDD to its holder and fix it shown as below Picture.
Lastly, tighten the screws of the upper cover.
Note：If users need higher performance HDD, strongly recommend to use special HDD for Security
Protection.
3.2、Connecting camera and monitor
Connect camera cable to video input of DVR, and from video output of DVR to Monitor via BNC connector
(Refer to section2.2-Rear Panel); or
If the camera is a PTZ speed dome, you could connect RS485 A & B to the according port of DVR
respectively (refer to system figuration on Chapter 8).
Note: BNC connector will differ depending on different video input port of Monitor.
3.3、Connecting power supply
Please only use the power adapter supplied with the DVR.
After power on please make sure the video I/O connection well and select microphone and audio device
with RCA cable.
