User Manual
5
Chapter 2: Overview

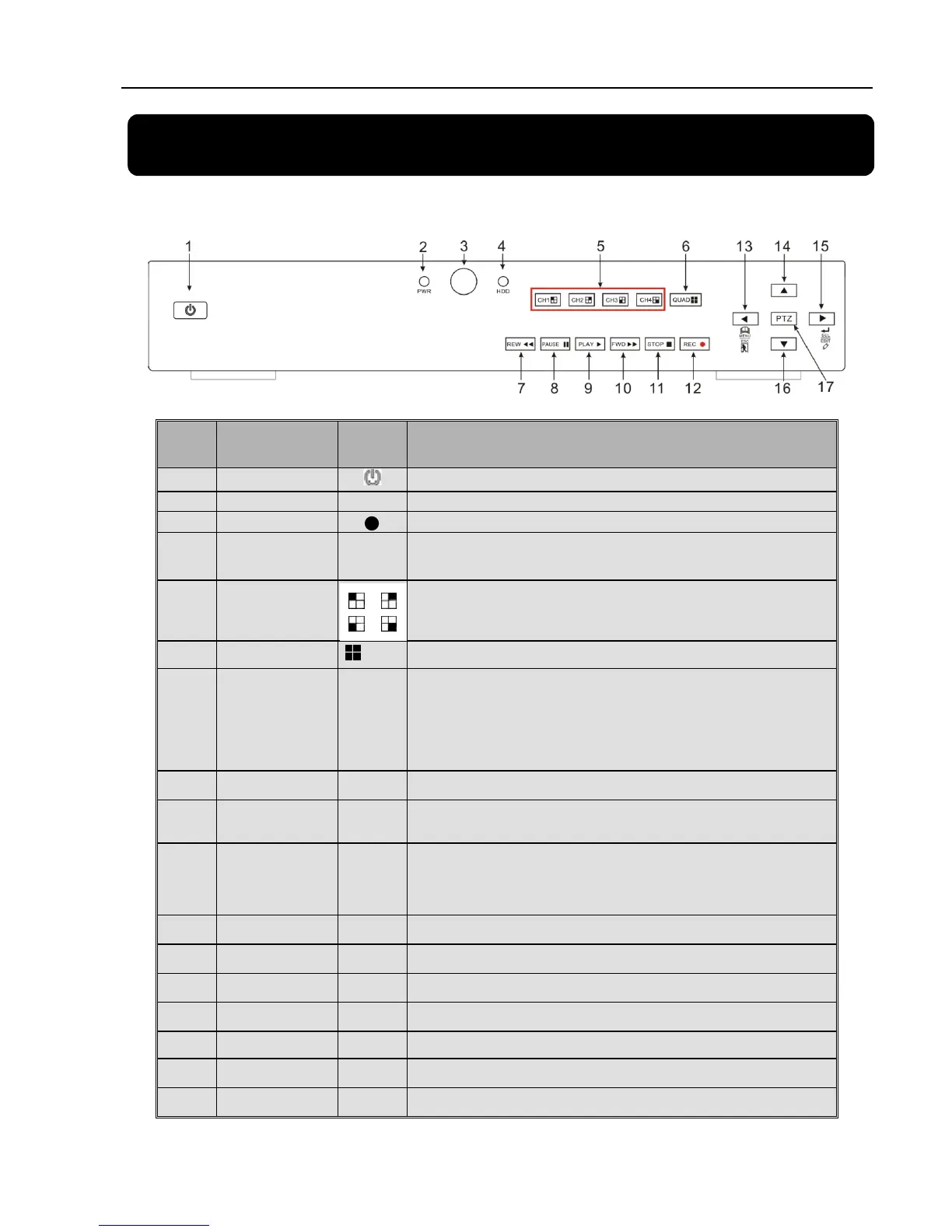

2.1、Front Panel
2.1.1、4-CH DVR Front Panel
Item
Key title
or Indicator
Remark Function & Description
1 Power button Power on/off
2
Power
PWR
If the “Green” indicator is on the system is getting power
3 IR Receiver
Receives IR signal from Remote Controller
4 HDD Indicator HDD
When the “Red” indicator flashes it means the hard drive is
being read or written to.
5
CH select Key:
CH1 CH2
CH3 CH4
CH select key
6 QUAD On Live display or Playback mode, switch to Quad display.
7 REW
Left arrow key, Rewind key;
Pressing the key to decrease PTZ rotation speed and
parameter value.
On preview mode, Hold pressing the key to switch to GUI
operation device
8 PAUSE Pause / play frame by frame manually
9 PLAY
Enter into [Record Search] Menu;
Play recorded file.
10 FWD
Right arrow key, Forward key;
Pressing the key to increase PTZ rotation speed and
Parameter value.
11 STOP Stop Playing and/or manual record.
12 REC ● Start manual record
13 MENU/ESC Enter Main menu or Exit
14 Up key Move to up
15 SEL/EDIT Enter into pop-up menu; Select or Enter menu; Edit menu.
16 Down Key Move to down
17 PTZ： Enter into PTZ control interface
List 2-1
