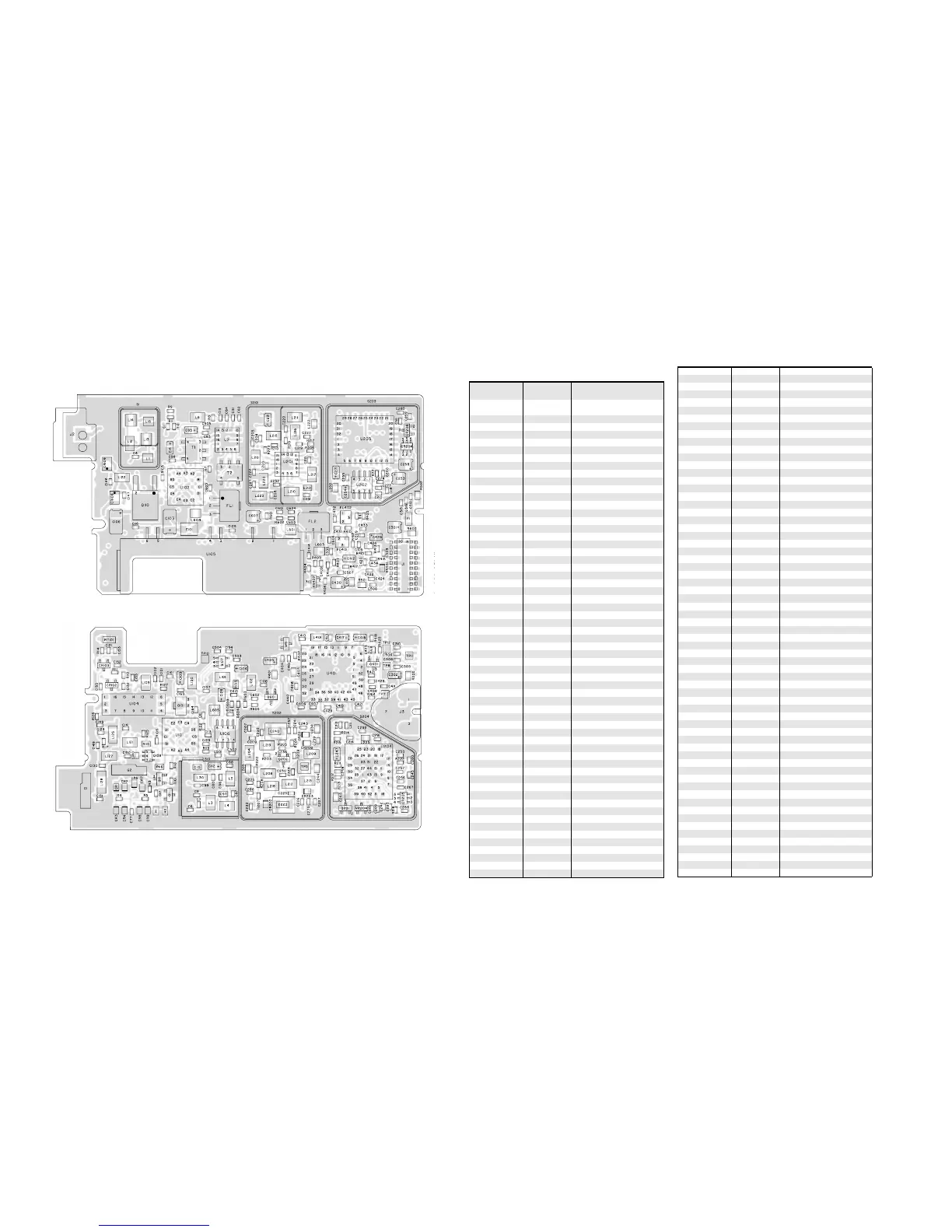

NLD8892R VHF Transceiver Circuit Board Details and Parts List
VIEWED FROM SIDE 2
O.K. A
S
O.K. A
S
ISS.
REVISION
CORRECTED
AS
MARKED
ILLUSTRATOR DATEENGINEERDATE PROGRAM DISK
MEDIA & COMMUNICATIONS
D
DWG. NO.
EDITOR DAT ECHECKERDATE
Illustrator
Astro VHF RF
8405880V08.G/NLD8892R
JP
MAEPF-2
7
MAEPF-27142-O
3/16/01
O
AM
NLD8892R
VIEWED FROM SIDE 1
MAEPF-27141-O
NLD8892R VHF Transceiver Board
Electrical Parts List
ITEM
MOTOROLA
PART NUMBER
DESCRIPTION
CAPACITOR, Fixed: pF ±5%; 50V
unless otherwise stated
C4 2113931F13 330
C6 2113930F27 10
C7 2113930F22 6.2 pF 50V ±0.25 pF 50V
C8 2113930F32 16
C11 2113931F49 10 nF
C12 2113931F13 330
C13 2113931F49 10 nF
C14 2311049A07 1 uF
C31 2113931F49 10 nF
C77 2113932K15 0.1 uF +80/-20% 16V
C80 2113930F39 33 pF
C82 thru C84 2113931F49 10 nF
C85 2311049A60 10 uF
C86 2113930F22 6.2 pF 50V ±0.25 pF 50V
C87 2113930F32 16
C88 2113930F27 10
C97 2113740A32 13
C98 2113931F13 330
C99 2113930F39 33
C101 2113932K15 0.1 uF +80/-20% 16V
C102 2113931F13 330
C103 2311049J26 10 uF
C104 ---------------- Not Placed.
C105 2113931F13 330
C106 2311049J26 10 uF
C107 2113931F13 330
C108 ----------------- Not Placed.
C109 2311049A07 1 uF
C111 2113931F13 330
C112 2311049A07 1 uF
C113 2113931F13 330
C115 2113743A19 0.1 uF 10%
C116 2113930F05 1.2 pF 50V ±0.1 pF 50V
C118 2113932K15 0.1 uF +80/-20% 16V
C121 2113931F13 330
C123 2113932K15 0.1 uF +80/-20% 16V
C126 2311049A54 3.3 uF
C129 2113930F03 1.0 pF 50V ±0.1 pF 50V
C130 2113930F27 10
C132, C133 2113931F13 330
C135 2113931F13 330
C140, C141 2113931F13 330
C146, C147 2113931F13 330
C147 2113931F13 330
C148 2113930F03 1 pF 50V ±0.1 pF 50V
C149, C150 2113930F36 24
C151 2113930F29 12
C152 2113931F13 330
C153 ----------------- Not Placed.
C154 2113931F13 330
C161 2113932K15 0.1 uF +80/-20% 16V
C163, C164 2113930F51 100
C202 2113930F27 10
C203 2113930F20 5.1 pF 50V ±0.25 pF 50V
C204 2113931F13 330
C205 2113930F14 3 pF 50V ±0.25 pF 50V
C206 2113931F20 620
C207 2113930F07 1.5 pF 50V ±0.1 pF 50V
C208 2113930F22 6.2 pF 50V ±0.25 pF 50V
C209 2113932K15 0.1 uF +80/-20% 16V
C210 2113932E07 .022 uF 10% 16V
C211 2113931F13 330
C212 ----------------- Not Placed.
C214 2113930F21 5.6 pF 50V ±0.25 pF 50V
C219 2113930F27 10
C220 2113930F38 30
C221 2113931F13 330
C222 2113930F21 5.6 pF 50V ±0.25 pF 50V
C223 2113906C02 4 pF ATC
C225 2113930F08 1.6 pF 50V ±0.1 pF 50V
C226 2113930F39 33
C227, C228 2113931F13 330
C230 2113930F29 12
C231 2311049A60 10 uF
C233 2113931F13 330
C235 2113930F31 15
C236, C237 2113930F27 10
C238 2113743A23 0.22 uF 10%
C239 2113931F13 330
C240 2113906C02 4 pF ATC
C241 2113930F38 30
C242 2113931F13 330
C243 2113930F36 24
C244 2109720D09 .022 uF
C245 2113931F25 1 nF
C246 2109720D09 .022 uF
C247 2311049A07 1 uF
C248 2113932K15 0.1 uF +80/-20% 16V
C250 2113931F25 1 nF
C251, C252 2113931F13 330
C253 2311049J23 10 uF
C254 2311049A56 4.7 uF
C255 2113931F25 1 nF
C256, C257 2113931F49 10 nF
C258 2311049J11 4.7 uF
C259 2113931F25 1 nF
C260 2113932K05 .039 uF +80/-20% 16V
C266, C267 2113931F49 10 nF
C270 2113931F25 1 nF
C271 2311049A56 4.7 uF
C274 2113931F49 10 nF
C277 2113931F13 330
C280 2113930F51 100
C285, C286 2113931F13 330
C287 2113930F14 3 pF 50V ±0.25 pF 50V
C288, C289 2113931F13 330
C291, C292 2113932E03 .015 uF 10% 16V
C293 ---------------- Not Placed.
C301 2311049J11 4.7 uF
C302 2311049A54 3.3 uF
C303 2113932E03 .015 uF 10% 16V
C304 2113931F13 330
C308 thru C310 2113931F13 330
C315 2113931F13 330
C316 2113930F53 120
C401 2113932K03 .033 uF +80/-20% 16V
C403 2113743A13 .047 uF
C404 2113932K15 0.1 uF +80/-20% 16V
C405 2311049A60 10 uF
C406, C407 2113931F49 10 nF
C408 2113931F25 1 nF
C409 2113931F21 680
C410 2113930F48 75
C411 2113932K15 0.1 uF +80/-20% 16V
