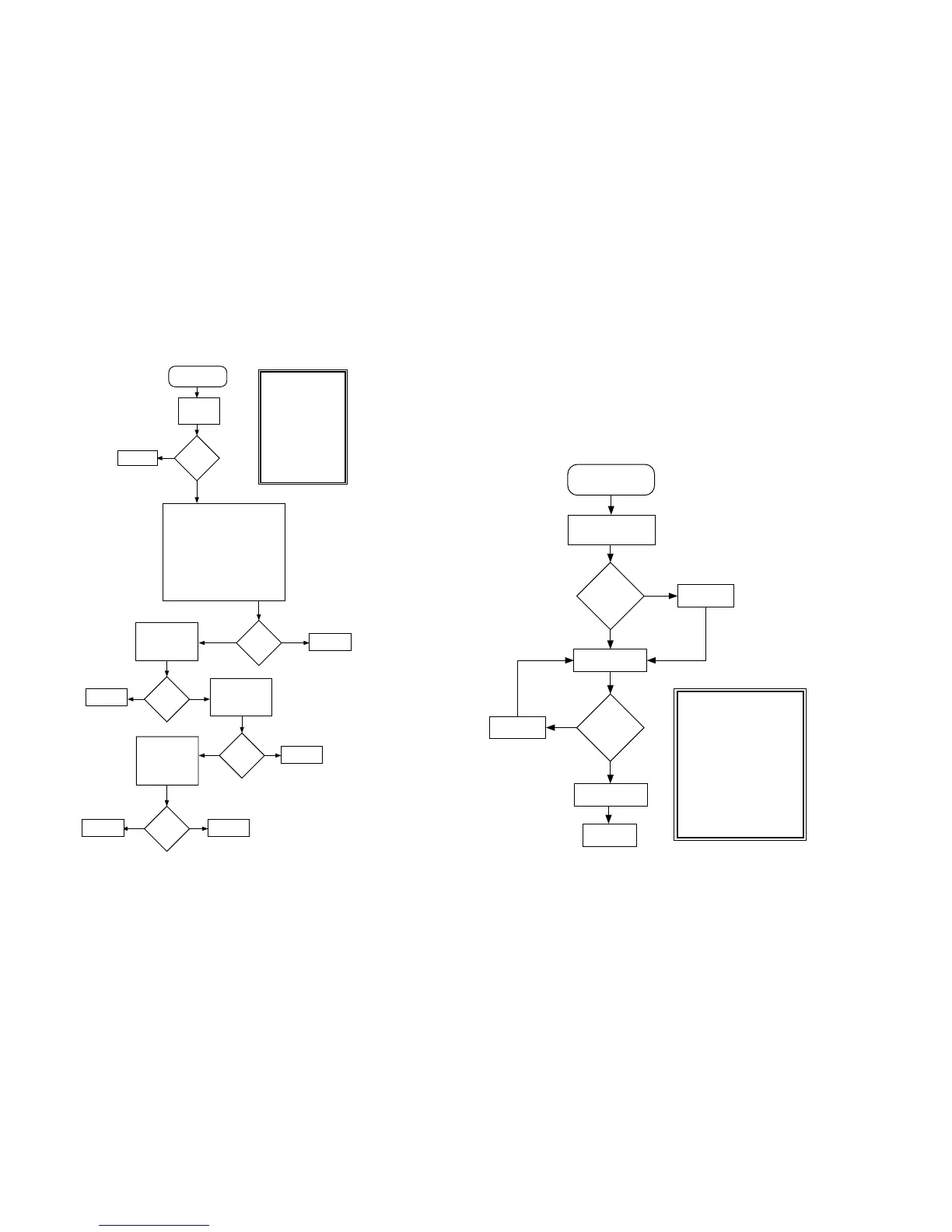

Chart 9 . 01/88 MCU (Host µC) External SRAM Failure
Fail 01/88
Host µC External RAM
Failure.
Verify standard
bias per table
Table 3 pertaining
to host µC.
No
Isolate and
repair problem.
Yes
Standard
bias OK?.
Signal @ U206 Source
OE* U204
WE* U204
HD0-HD7 U204
4XECLK U204
HA0-HA4,
HA14_IN, HA15_IN,
HA16,HA17 U204
CSIO1* U204
CSPROG* U204
Verify Host RAM:
Use ohmmeter to
electrically verify
following signal connections
to source IC:
Signal @ U202 Source
HA0-HA13 U206
HD0-HD7 U204
MEMR/W* U206
OE* U206
CS* U211
Signal @ U211 Source
IN_B U204
IN_A U206
Synopsis
This failure indicates a failure
in the µC external SRAM at
power up test. Some basic
failure modes:
1) Missing supply or ground to
SLIC.
2) Open in parallel address bus,
data bus or associated select
lines between the host µC and
the SLIC and the SRAM.
3) 4xECLK missing to the SLIC.
4) SLIC is faulty.
5) Improper decoding logic due
to open or failure of U211 AND
logic gate.
6) SRAM is faullty.
Connections
good?
Repair
connections.
Yes
No
Signals
verfied?
During radio power up
Self-Test, verify
activity (transisitons
from high to low) on
U202 CS*.
No
Yes
Signals
verfied?
Replace U202.
MAEPF-24665-B
No Yes
No Yes
Signals
verfied?
Replace U211.Replace U204.
Replace U206.
Verify operation of
U204 and U211 logic AND
gate. During radio power
up Self-Test, verify
activity (transisitons
from high to low) on
U211 IN_B.
During radio power up
Self-Test, verify
activity (transisitons
from high to low) on
U202 OE* and WE*.
Chart 10 . 01/92, Internal EEPROM Checksum Failure
Replace U204.
Reprogram Internal
EEPROM.
Internal
EEPROM
reprogrammed?
End
No
Yes
Verify operation of
Power Down Reset Per
Fig. W9.
Reset
Functional?
Replace U407.
No
Yes
Fail 01/92
Internal EEPROM
Checksum Failure
Realign radio.
MAEPF-24407-B
Synopsis
This failure indicates the Host
µC interal EEPROM is incorrect.
This data contains, among other
things, radio tuning parameters.
Basic failure modes are as
follows:
1) The contents of the internal
EEPROM have been corrupted.
A possible cause of corrupted
data may be improper operation
of the power down RESET
circuit U407.
2) An internal failure of U204
has occurred.
To Next Page
