Motorola ASTRO Digital Saber User Manual

13-13

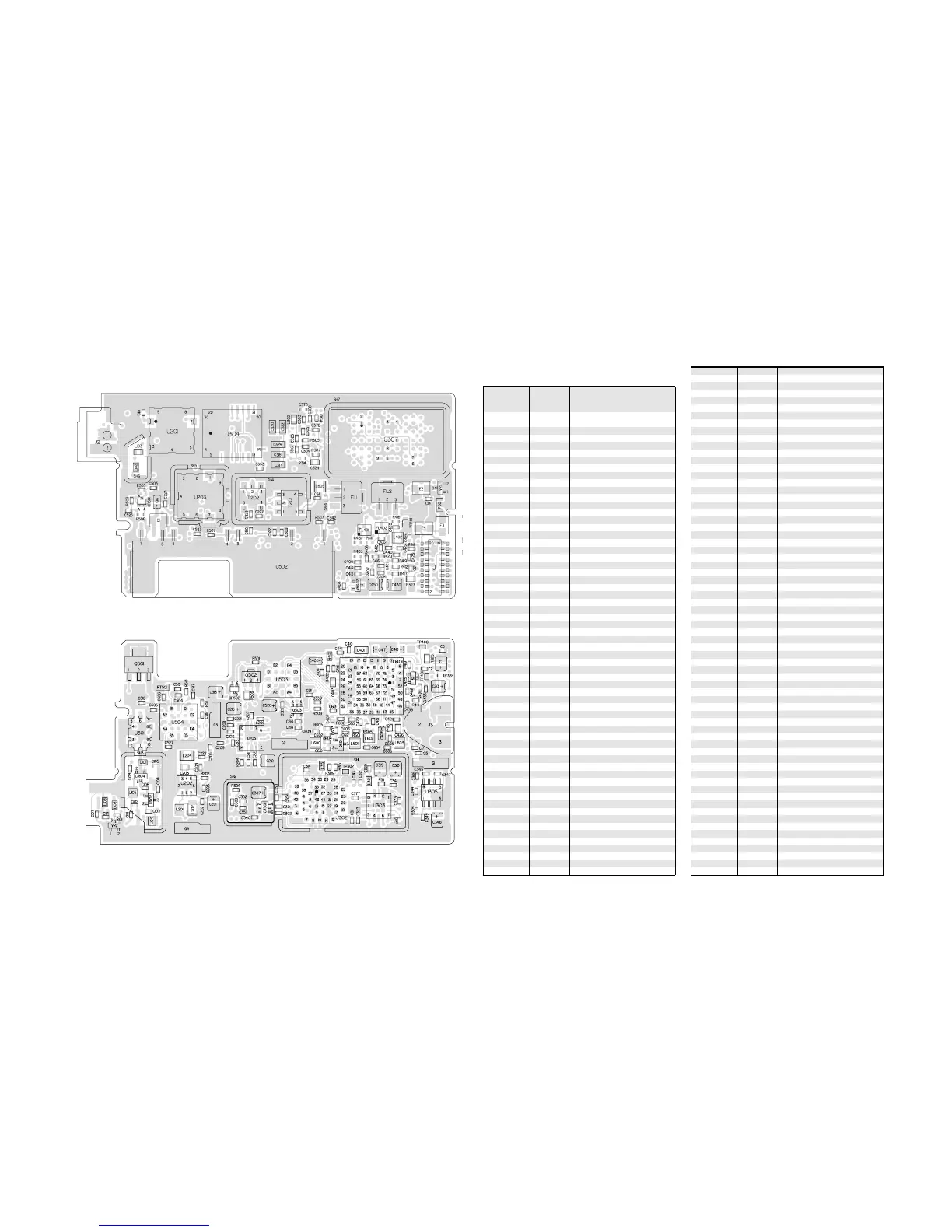

NUF6411K 800 MHz Transceiver Circuit Board Details and Parts List
VIEWED FROM SIDE 2
ILLUSTRATOR DATEENGINEERDATE
ME
D
EDITOR DATECHECKERDATE
Astro 800 RF
8405881V03.B/NUF6411K
JP
AM
3/16/01
MAEPF-27146-O
VIEWED FROM SIDE 1
MAEPF-27145-O
NUF6411K 800 MHz Transceiver Board
Electrical Parts List
ITEM
MOTOROLA
PART
NUMBER
DESCRIPTION
CAPACITOR, Fixed: pF ±5%; 50V
unless otherwise stated
C1 2311049J12 4.7 uF
C2 2113932E07 .022 uF 10% 16V
C5 2113930F39 33
C12 ---------------- Not Placed.
C14 2113930F39 33
C15 2113932E07 .022 uF 10% 16V
C16 2311049A07 1 uF
C17 2113932E07 .022 uF 10% 16V
C20 2311049J11 4.7 uF
C101 2113930F34 20
C102 ---------------- Not Placed.
C103 2113930F39 33
C104 2113930F34 20
C105 2113930F39 33
C106 2113930F12 2.4 pF 50V ±0.25 pF 50V
C107 ----------------- Not Placed.
C108 2113930F39 33
C110 2113930F15 3.3 pF 50V ±0.25 pF 50V
C114 2113930F39 33
C201 2311049J23 10 uF
C202 2113930F41 39
C203 2113930F51 100
C204 2113932E07 .022 uF 10% 16V
C205 ----------------- Not Placed.
C206 2113930F39 33
C207 2113930F14 3 pF 50V ±0.25 pF 50V
C208 2113930F41 39
C209 2113932E07 .022 uF 10% 16V
C210 2311049J23 10 uF
C211 2113932E07 .022 uF 10% 16V
C212 2113930F41 39
C213 2113932E07 .022 uF 10% 16V
C216 2311049J23 10 uF
C218 2113932E07 .022 uF 10% 16V
C221 2113932E07 .022 uF 10% 16V
C222 2113930F22 6.2 pF 50V ±0.25 pF 50V
C223 2113930F20 5.1 pF 50V ±0.25 pF 50V
C226 2113930F41 39
C227 2113931F13 330
C301, C302 2113932K15 0.1 uF +80/-20% 16V
C303 2113930F51 100
C304 2113930F39 33
C305 2113930F51 100
C306 2113930F39 33
C307 2311049J12 4.7 uF
C309 2113932E07 .022 uF 10% 16V
C310 2311049J23 10 uF
C311 2113930F39 33
C312, C313 2113932K15 0.1 uF +80/-20% 16V
C314 2113932E07 .022 uF 10% 16V
C315 2105248W02 1 nF
C316 2113932E07 .022 uF 10% 16V
C317, C318 2109720D14 0.1 uF
C319 2311049J23 10 uF
C320 2113930F39 33
C321 2113932E07 .022 uF 10% 16V
C322 2109720D14 0.1 uF
C323 2113932E07 .022 uF 10% 16V
C324 2113743A13 .047 uF
C325 2113931F21 680
C328 2113930F51 100
C329, C330 2109720D14 0.1 uF
C339 2113930F29 12
C340 2113932K15 0.1 uF +80/-20% 16V
C341 2113932E07 .022 uF 10% 16V
C342 2113930F19 4.7 pF 50V ±0.25 pF 50V
C344 2113932E07 .022 uF 10% 16V
C345 2113932K15 0.1 uF +80/-20% 16V
C347 2113932E07 .022 uF 10% 16V
C348 2311049J23 10 uF
C349 2113932E07 .022 uF 10% 16V
C350 2113932K15 0.1 uF +80/-20% 16V
C351 2113932K07 .047 uF +80/-20% 16V
C352 2113930F39 33
C353 2113932E07 .022 uF 10% 16V
C354 2113930F39 33
C370 2113930F18 4.3 pF 50V ±0.25 pF 50V
C372 2113932K15 0.1 uF +80/-20% 16V
C373 2113932E07 .022 uF 10% 16V
C377 2113930F14 3 pF 50V ±0.25 pF 50V
C401 2113932K03 .033 uF +80/-20% 16V
C403 2113743A13 .047 uF
C404 2113932K15 0.1 uF +80/-20% 16V
C405 2311049A42 3.3 uF
C406, C407 2113931F49 10 nF
C408 2113931F25 1 nF
C409 2113931F21 680
C410 2113930F48 75
C413 2113931F49 10 nF
C414 2113931F45 6.800 nF
C415 2113932K15 0.1 uF +80/-20% 16V
C416 2113931F49 10 nF
C417, C418 2311049A42 3.3 uF
C419 2113932K15 0.1 uF +80/-20% 16V
C420 2113930F34 20
C421 2113931F49 10 nF
C422 2113930F41 39
C423, C424 2113930F45 56
C425 2113930F11 2.2 pF 50V ±0.25 pF 50V
C426 2113743A23 0.22 uF 10%
C427 2113931F41 4.7 nF
C428 2311049A40 2.2 uF
C429 2113932K15 0.1 uF +80/-20% 16V
C430 2311049J23 10 uF
C431, C432 2113930F39 33
C433 2113932K15 0.1 uF +80/-20% 16V
C434 2113931F49 10 nF
C438 2113932K15 0.1 uF +80/-20% 16V
C440 ----------------- Not Placed.
C441 2113931F49 10 nF
C450 2311049J23 10 uF
C503 thru C507 2113930F39 33
C509 2113930F39 33
C510 2113932E07 .022 uF 10% 16V
C511 2113930F39 33
C512 2113932E07 .022 uF 10% 16V
C513 2311049A13 4.7 uF
C514 2113932E07 .022 uF 10% 16V
C517 2113930F39 33
C518 2113932K15 0.1 uF +80/-20% 16V
C519 2113930F39 33
C520 2311049J23 10 uF
C521 2113932E07 .022 uF 10% 16V
C522 2113932K15 0.1 uF +80/-20% 16V
C523 thru C525 2113930F39 33
C527 2113932E07 .022 uF 10% 16V
C601, C602 2113932K15 0.1 uF +80/-20% 16V
C604 2113930F18 4.3 pF 50V ±0.25 pF 50V
