MAEPF-27099-O
JP 12/12/00
BW

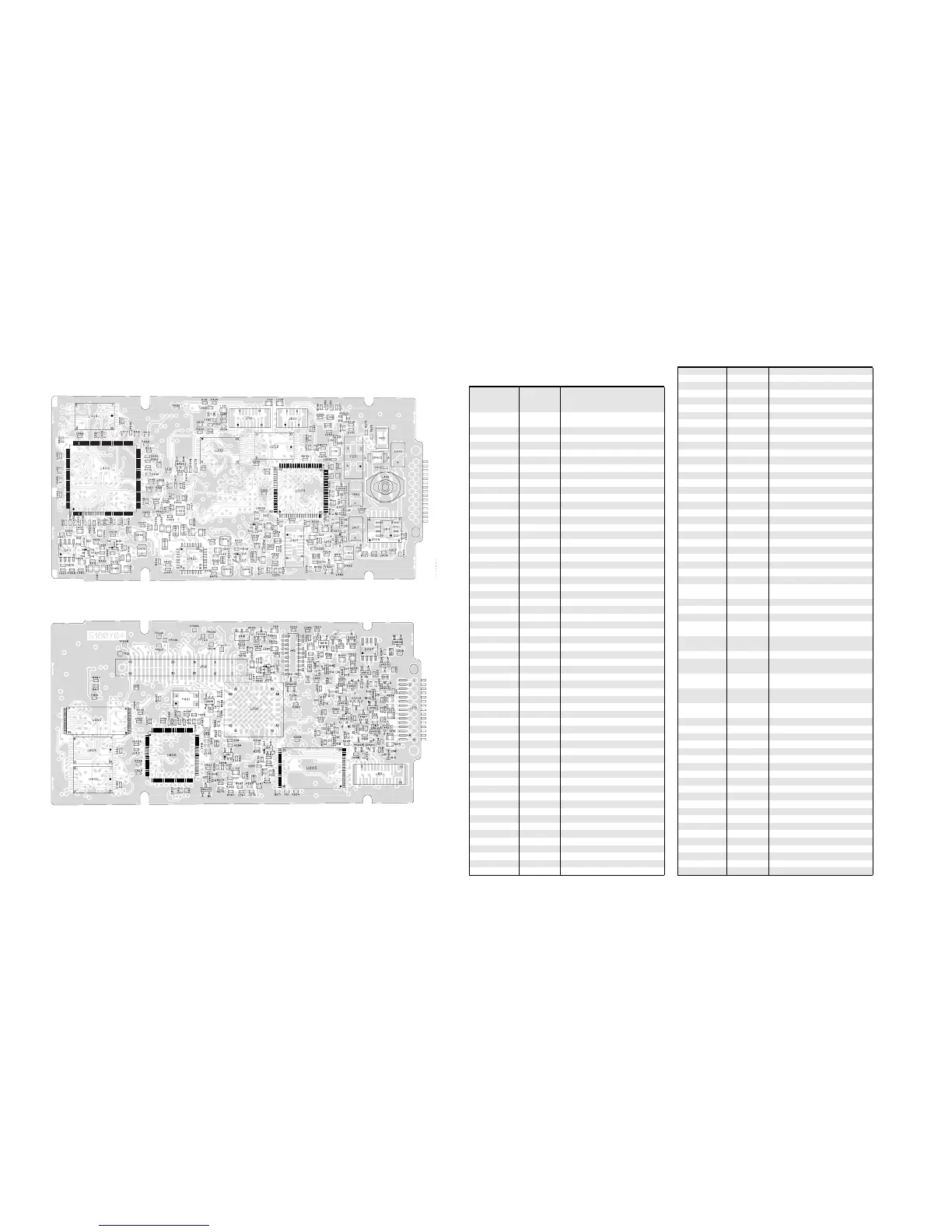

VIEWED FROM SIDE 1
MAEPF-27098-O
NTN7749G VOCON (Vocoder/Controller) Board
Electrical Parts List
ITEM
MOTOROLA
PART
NUMBER
DESCRIPTION
CAPACITOR, Fixed: pF ±5%; 50V
Unless otherwise stated
C201, C202 2113931F17 470
C203, C204 2113930F39 33
C205 2113931F17 470
C206 thru C208 2113930F39 33
C209 thru C214 2113931F17 470
C215 2113930F39 33
C216 2113931F17 470
C217 2113932K15 0.1 uF +80/-20% 16V
C218 thru C223 2113931F17 470
C224 thru C226 2113932K15 0.1 uF +80/-20% 16V
C227 2113930F36 24
C228 ----------------- Not Placed.
C229 2113930F36 24
C230, C231 2113932K15 0.1 uF +80/-20% 16V
C236 2113932K15 0.1 uF +80/-20% 16V
C237 2113931F17 470
C238 2113932K15 0.1 uF +80/-20% 16V
C241 2113931F17 470
C245 thru C247 2113932K15 0.1 uF +80/-20% 16V
C248 tru C254 2113931F17 470
C255 2113932K15 0.1 uF +80/-20% 16V
C256, C257 2113931F17 470
C258 2113930F39 33
C261 2113932K15 0.1 uF +80/-20% 16V
C262 thru C279 2113931F17 470
C281, C282 2113930F39 33
C284 thru C287 2113931F17 470
C400 2113932K15 0.1 uF +80/-20% 16V
C401 2113931F17 470
C402, C403 2113743A23 0.22 uF 10%
C404 2113932K15 0.1 uF +80/-20% 16V
C405, C406 2113743A23 0.22 uF 10%
C407 thru C414 2113932K15 0.1 uF +80/-20% 16V
C415 2113743A23 0.22 uF 10%
C416 thru C420 2113932K15 0.1 uF +80/-20% 16V
C421 2113931F17 470
C422 ----------------- Not Placed.
C423, C424 2113930F51 100
C425 2311049J12 4.7 uF
C426 2113932K15 0.1 uF +80/-20% 16V
C427 2113931F41 4.7 nF
C428 2113932K15 0.1 uF +80/-20% 16V
C429 2113931F49 10 nF
C430 2311049J12 4.7 uF
C431, C432 ---------------- Not Placed.
C433 2311049A07 1 uF
C434 2113743F12 0.33 uF
C435 2113932K15 0.1 uF +80/-20% 16V
C436 2113743F12 0.33 uF
C437 2311049A07 1 uF
C438 2113930F34 20
C439 2311049A07 1 uF
C440 2113932K15 0.1 uF +80/-20% 16V
C441 2311049J12 4.7 uF
C442, C443 2113930F09 1.8 pF 50V ±0.1 pF 50V
C444 thru C456 2113932K15 0.1 uF +80/-20% 16V
C457 2113931F13 330
C458 2113932K15 0.1 uF +80/-20% 16V
C459 2113930F03 1 pF 50V ±0.1 pF 50V
C460 2311049J12 4.7 uF
C461, C462 2113932K15 0.1 uF +80/-20% 16V
C463 2311049C08 33 uF 20V 10%
C464, C465 2311049J12 4.7 uF
C466 2113932K15 0.1 uF +80/-20% 16V
C467 2113930F21 5.6 pF 50V ±0.25 pF 50V
C468 2113743A23 0.22 uF 10%
C469 2113932K15 0.1 uF +80/-20% 16V
C470 2311049C07 100 uF 10V 10%
C471 2311049C08 33 uF 20V 10%
C472 2113931F17 470
C473 2113932K15 0.1 uF +80/-20% 16V
C474 2113931F49 10 nF
C475 2113931F13 330
C476, C477 2113932K15 0.1 uF +80/-20% 16V
C478, C479 2113743A23 0.22 uF 10%
C480 2113930F46 62
C481 2113743A23 0.22 uF 10%
C482 2311049A05 0.47 uF
C483 2113930F39 33
C484, C485 2113932E20 0.1 uF 10% 16V
C486 2113743A23 0.22 uF 10%
C487 2113743A19 0.1 uF 10%
C488 2113932K15 0.1 uF +80/-20% 16V
C489 2113743A13 .047 uF
C490, C491 2113931F17 470
C492 ---------------- Not Placed.
C493 2113932K15 0.1 uF +80/-20% 16V
DIODE:
See Note 1.
CR201, CR202 4884939C35 Hot Carrier, 4V
CR203 thru
CR205
4805218N57 Dual
CR402 4813825A06 PIN, 35V
CR403 4813833B09 Schottky, 30V
JACK:
J201 2802624J02 Connector, VOCON/Universal (15-
position)
J401 0905461X03 Connector, VOCON/Transceiver (20-
position)
J501 ----------------- Not Placed.
J601 0913915A07 Connector, VOCON/LCD Display (9-
position)
J701 0913915A09 Connector, VOCON/Mic-Keypad (15-
position)
J801 0913915A11 Connector, VOCON/Encryption Bd
(25-position)
J901 0913915A09 Connector, VOCON/Control Top (15-
position)
JUMPER:
JU201 0662057B47 0
Ω
±.05
Ω
JU210, JU211
----------------- Not Placed.
JU401 ----------------- Not Placed.
JU402 thru JU405 0662057B47 0
Ω
±.05
Ω
JU407 0662057B47 0
Ω
±.05
Ω
COIL, RF:
L201 2460578C43 33 uH
L203 thru L206 2462587Q40 270 nH
L208 thru L223 2462587Q40 270 nH
L401 2484657R01 675 nH
L402 2405528W03 100 uH
L403 2462587E71 1.8 uH
TRANSISTOR:
See Note 1.
Q201thru Q206 4805128M12 NPN
Q207 4805718V01 PNP
Q208 4805128M12 NPN
Q210 4805128M12 NPN
Q211 4805128M40 PNP
Q401 ------------------ Not Placed.
Q402 4880048M01 NPN
To Next Page
