Troubleshooting
Waveforms 11
Introduction This section contains images of waveforms which may be useful in
verifying operation of certain parts of the circuitry. These waveforms
are for reference only; the actual data depicted will vary depending
upon operating conditions.
Waveforms

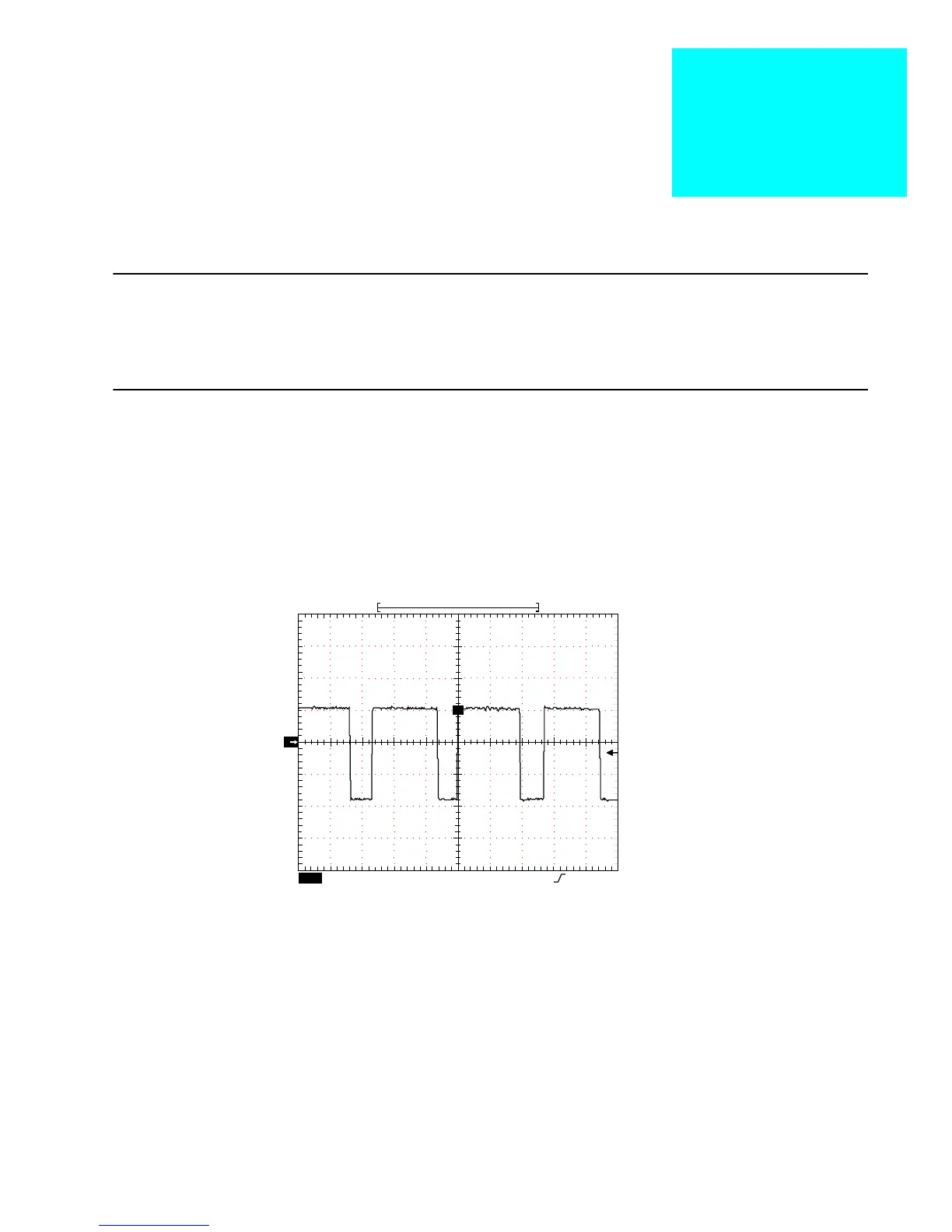

Figure 14 . Waveform W1
103 Acquisitions
Tek stopped:
T
1
Ch1
T
M 200us Ch1 -680mV
W1: Switched Regulator Clock Out
Trace 1 - (U409)LX measured with radio in
standby mode with UNSW_B+ at 7.5VDC.
2.00V
MAEPF-24376-O
