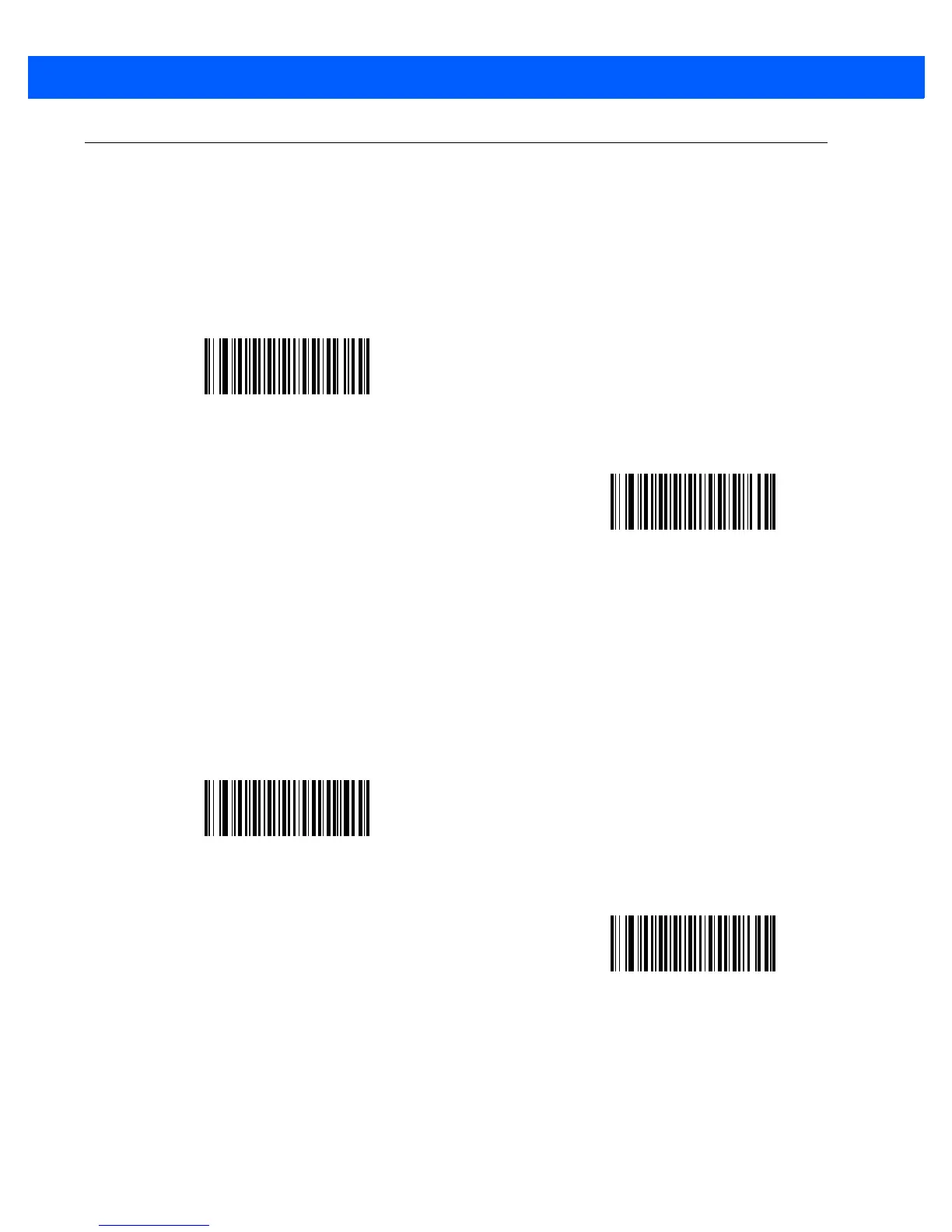

Symbologies
4 - 67
Composite
Composite CC-C
Parameter # 341
Scan a bar code below to enable or disable Composite ba
r codes of type CC-C.
Composite CC-A/B
Parameter # 342
Scan a bar code below to enable or disable Composite ba
r codes of type CC-A/B.
Enable CC-C
(1)
*
Disable CC-C
(0)
Enable CC-A/B
(1)
*
Disable CC-A/B
(0)
