Bluetooth Connection Examples C - 7
Windows 8 Pairing Example
1. Press the scan button (+) to wake the scanner.
2. Press and hold the Bluetooth button for five seconds. The scanner beeps and the Bluetooth button blinks
quickly to indicate that the scanner is discoverable by the host.
3. On the Lenovo ThinkPad Tablet, slide the right side of screen to invoke the Start menu, and tap the
Settings icon.
4. Tap Change PC Settings to invoke the PC settings list, and tap PC and devices.
5. Tap Bluetooth. If Bluetooth is not enabled, swipe to enable it. The CS4070 appears in the Devices list,
indicated by its model name.
6. Select the CS4070 from the list. A window prompts for a PIN generated by the Lenovo ThinkPad Tablet.

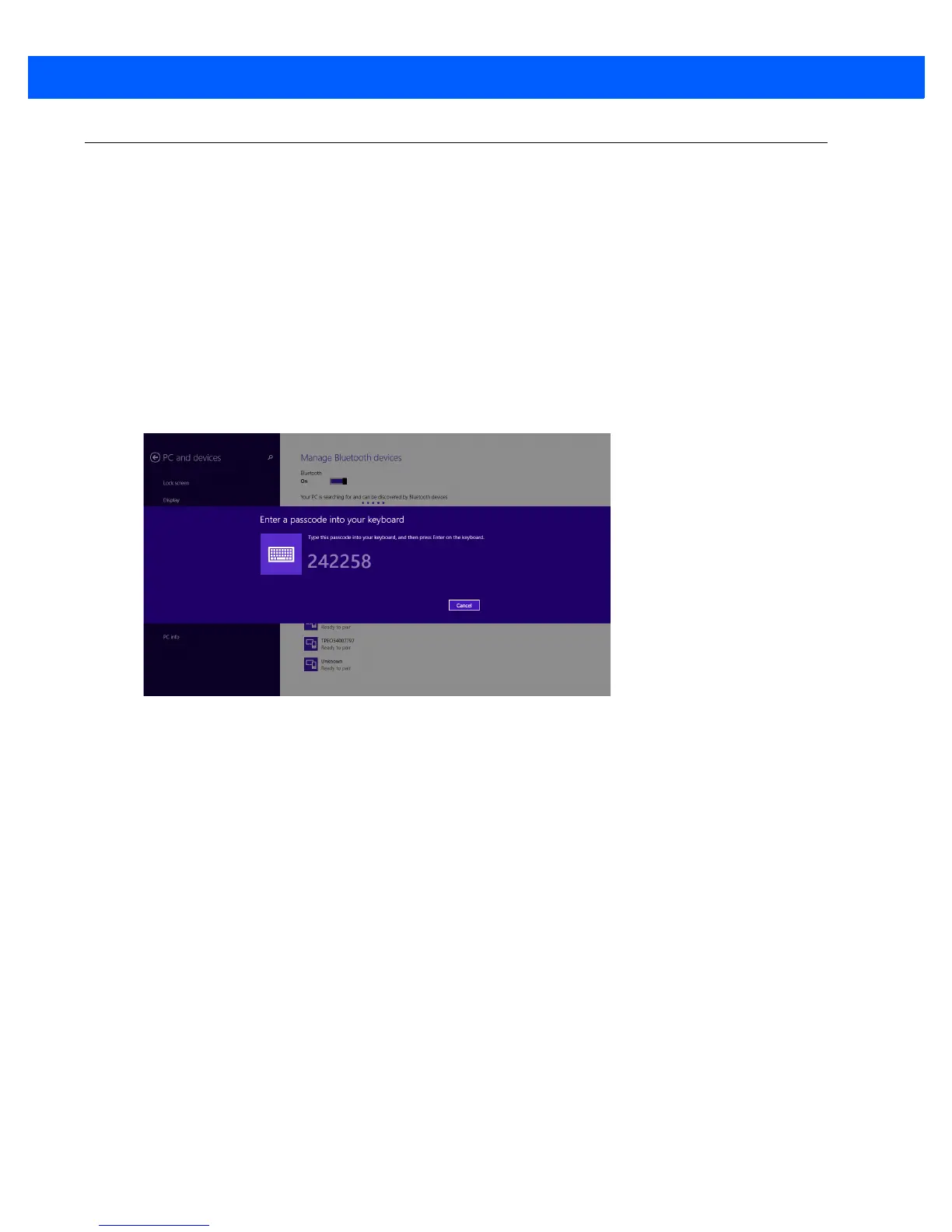

Figure C-9
ThinkPad Pairing Request Window
